Weiler 17637 Wheel Brush 3 Inch Crimped Stainless Steel

Product Description

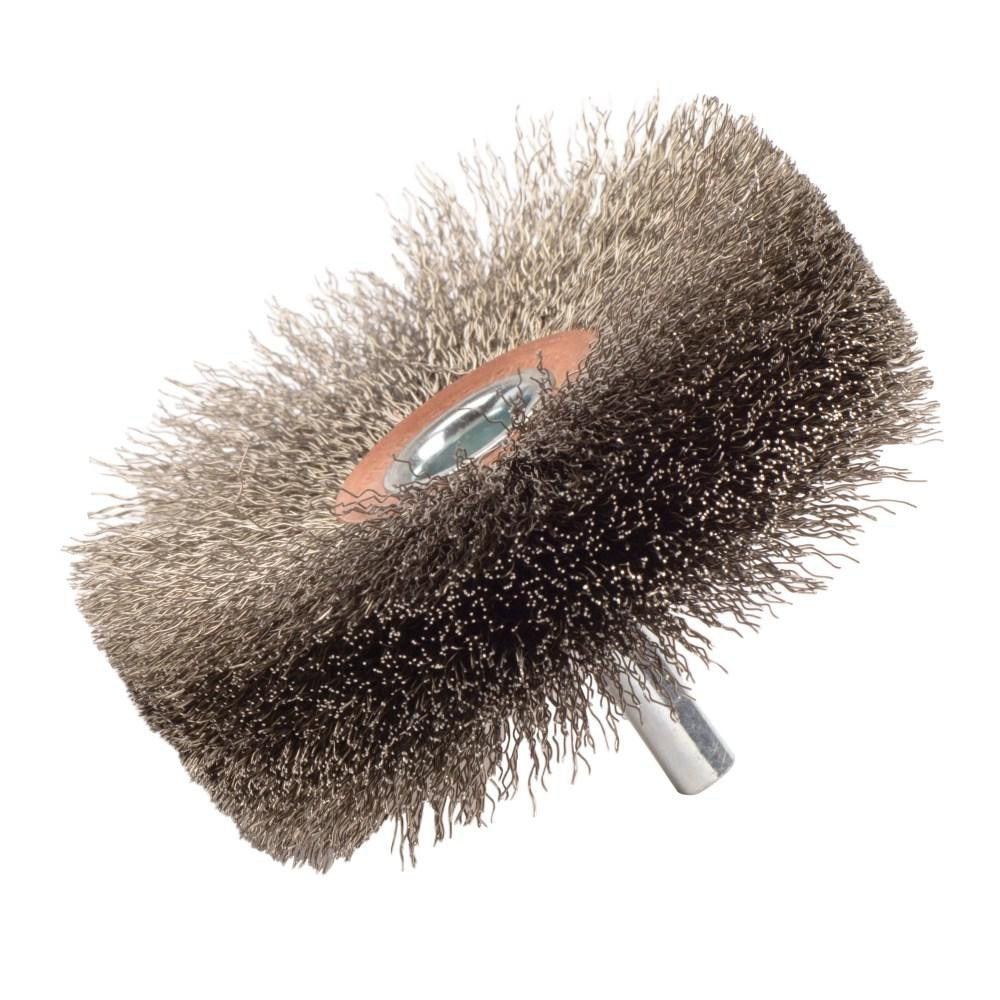

The WEILER 17637 is a crimped stainless steel wheel brush designed for use with die grinders and similar rotary tools. The brush mounts via a 1/4-inch shank and spins at up to 20,000 RPM, making it suited for aggressive surface preparation, weld cleanup, deburring, and rust or scale removal on metal workpieces. The 3-inch outside diameter and 1-inch face width provide broad contact coverage, while the crimped wire fill delivers consistent pressure across irregular or contoured surfaces. Stainless steel fill material resists corrosion and prevents carbon contamination on stainless steel base metals.

This wheel brush is intended for use with pneumatic or electric die grinders in fabrication shops, maintenance facilities, and industrial service environments. Common applications include weld seam preparation, surface conditioning, and cleaning of metal parts prior to inspection or coating. The crimped wire construction is particularly effective on surfaces requiring moderate to heavy abrasion without excessive material removal. The included 3/4-inch shank allows direct mounting to standard die grinder collets without additional hardware.

Key Features

• 3-inch outside diameter with 1-inch face width for broad surface contact
• Crimped stainless steel wire fill resists corrosion and prevents carbon contamination
• Rated to 20,000 RPM for high-speed die grinder compatibility
• 1/4-inch shank diameter, 3/4-inch shank length — mounts directly to standard die grinder collets
• 15/16-inch trim length provides consistent wire reach and controlled flex
• Filament wire diameter up to 0.0099 inches for moderate-duty surface conditioning

Compatibility

Designed for use with die grinders accepting a 1/4-inch shank mount. Verify maximum RPM rating of the host tool does not exceed 20,000 RPM before use.

Installation Notes

Installation and operation should be performed by personnel familiar with rotary abrasive tools and applicable ANSI and OSHA standards for power brush safety. Always power down and disconnect the die grinder before mounting or removing the brush. Confirm the collet is properly tightened to the 1/4-inch shank before operation. Do not exceed the rated maximum of 20,000 RPM, and always use appropriate eye and face protection during use.
