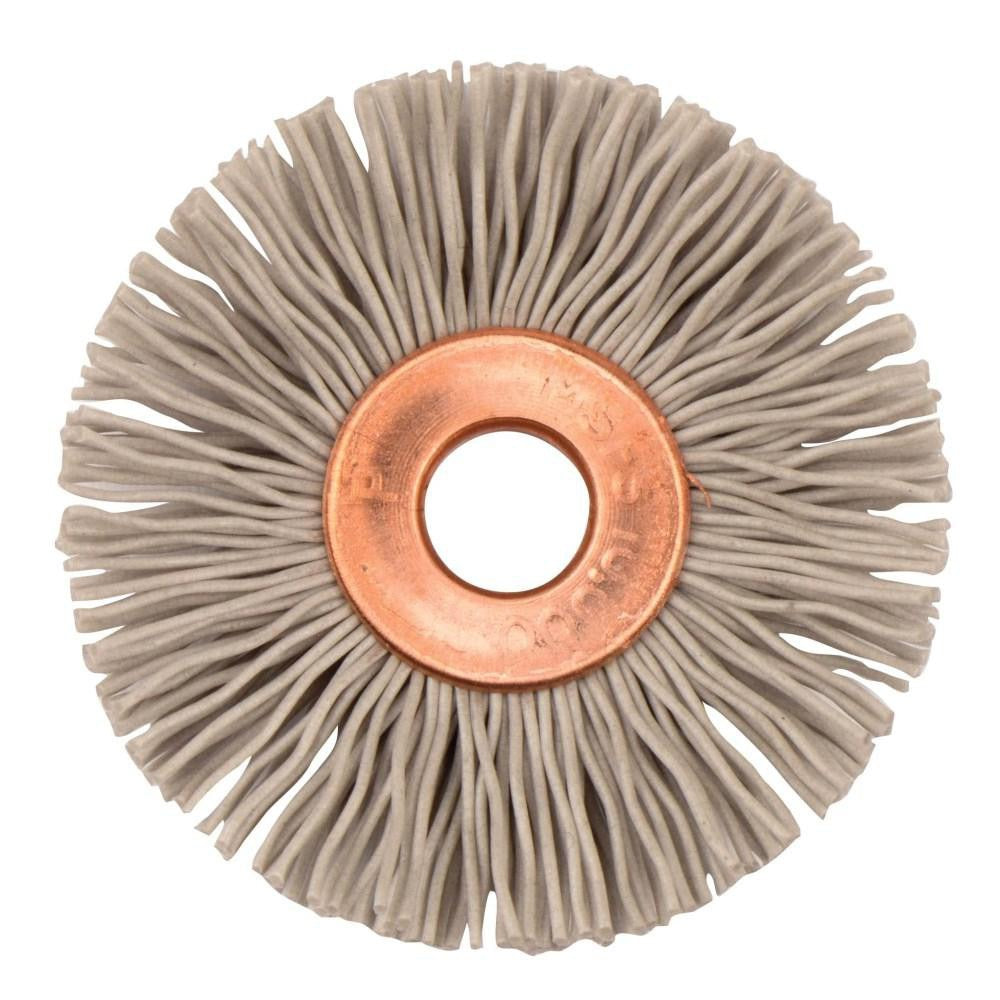

Weiler 16310 Wheel Brush 1-3/8 in Crimped Nylon 500 Grit

Product Description

The WEILER 16310 is a crimped nylon wheel brush designed for light deburring, surface blending, and cleaning applications on bench grinders, pedestal grinders, and straight grinders. The brush uses 500 grit aluminum oxide filaments to deliver controlled abrasive action without aggressive material removal. At 1-3/8 inches in outside diameter with a 5/16-inch face width and 3/8-inch trim length, it fits compact arbor-hole mounting setups. Rated to 10,000 RPM, it is well suited for detail finishing work where consistent surface conditioning is the goal. The nylon fill material resists moisture and mild chemicals, making it appropriate for a range of workpiece materials and shop environments.

This wheel brush is intended for use on bench or pedestal grinders and straight grinders in industrial, maintenance, and fabrication settings. The arbor-hole mount style allows direct installation onto standard grinding spindles without a shank adapter. Typical applications include light flash removal, weld spatter cleanup, rust and scale conditioning, and surface prep before coating. Its compact 1-3/8-inch diameter makes it practical for smaller workpieces or tight-geometry parts where a larger wheel would be difficult to control.

Key Features

• Crimped nylon fill with 500 grit aluminum oxide abrasive for controlled surface conditioning
• 1-3/8 inch outside diameter suits compact bench, pedestal, and straight grinder setups
• Arbor-hole mount with 1/4 inch hole — no shank included, installs directly on spindle arbor
• 10,000 RPM maximum speed rating for safe high-speed operation
• 5/16 inch face width and 3/8 inch trim length provide consistent brush contact geometry
• Nylon filaments resist moisture and are non-encapsulated for uniform abrasive exposure

Compatibility

Designed for use on bench grinders, pedestal grinders, and straight grinders equipped with a standard arbor-hole spindle accepting a 1/4 inch hole mount brush wheel.

Installation Notes

Installation is typically performed by maintenance technicians or fabrication professionals. Always power down and lock out the grinder before mounting or removing the brush wheel. Confirm the spindle speed does not exceed the 10,000 RPM maximum rating of the brush before operation. Wear appropriate eye protection and follow applicable ANSI B11 and OSHA grinding safety standards when operating abrasive wheel tooling.
