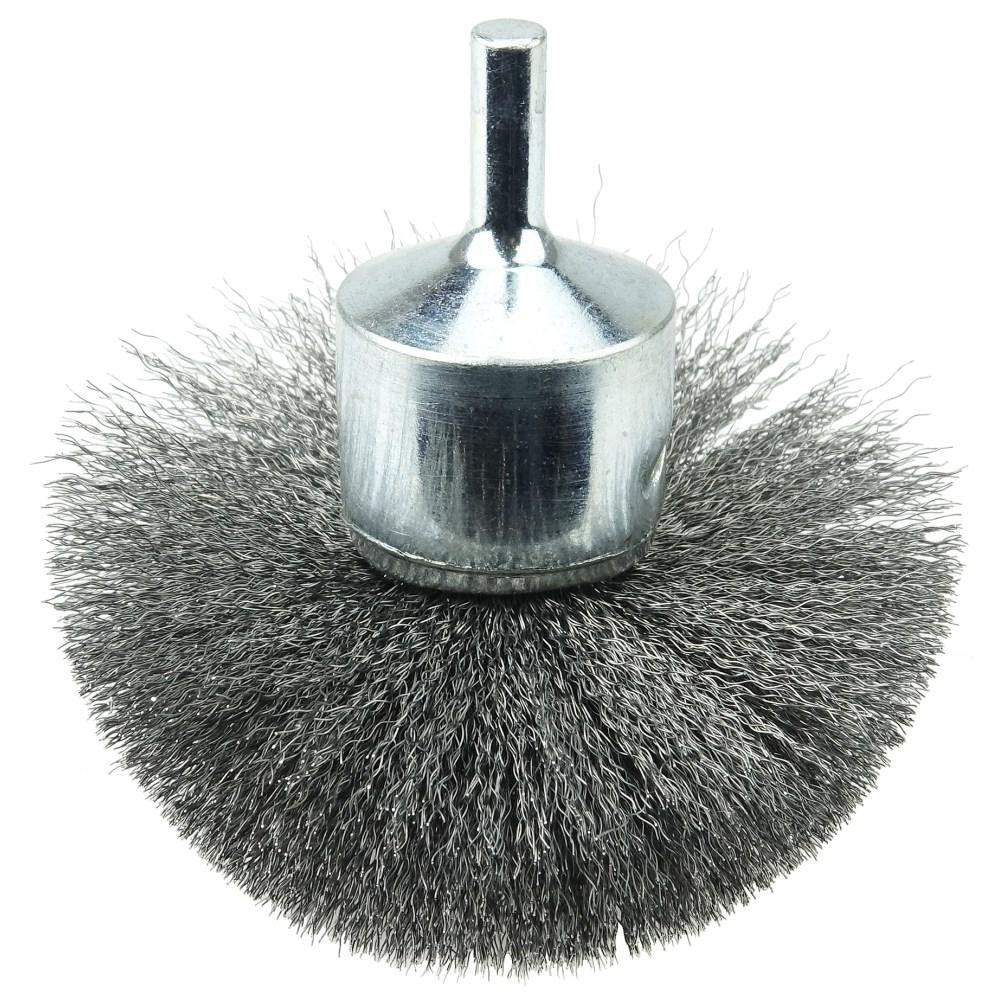

Weiler 10150 End Brush 3 in Crimped Steel Wire 6mm Shank

Product Description

The WEILER 10150 is a 3-inch diameter end brush designed for aggressive surface preparation, deburring, cleaning, and finishing on metal workpieces. It features crimped steel wire fill with a pre-flared brush head that conforms to irregular surfaces and contours. The 6 mm shank diameter and 0.75-inch shank length allow direct mounting in standard rotary tools, die grinders, and drill presses. Rated to 16,000 RPM, this brush handles demanding production and maintenance tasks. Wire diameter runs up to 0.010 inches, providing firm scrubbing action suited for steel surfaces. Fabricators, maintenance machinists, and metalworkers use it for weld spatter cleanup, rust removal, and edge blending.

The WEILER 10150 is intended for use on steel and similar ferrous materials in fabrication shops, manufacturing facilities, and field maintenance environments. The pre-flared, crimped wire construction makes it well suited for working into recessed areas, bores, and surface profiles where flat wheel brushes cannot reach. It mounts directly to die grinders and rotary tools with a compatible 6 mm collet. Typical applications include weld bead cleanup, scale and oxide removal, and light deburring on steel parts. Its compact end brush profile allows access in tight clearances common in structural and mechanical fabrication work.

Key Features

• 3-inch brush diameter with pre-flared, crimped steel wire fill for aggressive surface contact
• Wire diameter up to 0.010 inches delivers firm scrubbing and cleaning action on steel
• 6 mm shank diameter with 0.75-inch shank length fits standard die grinder collets
• 16,000 RPM maximum speed rating supports high-speed rotary tool use
• Pre-flared brush geometry conforms to contoured and recessed surfaces
• Non-piloted, non-bridled, non-encapsulated design for open brush action

Compatibility

Designed for use with rotary tools and die grinders equipped with a 6 mm collet. Intended for material applications on steel surfaces.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician familiar with rotary abrasive tooling. Ensure the tool is fully powered down and unplugged before mounting or removing the brush. Verify the tool spindle speed does not exceed the 16,000 RPM maximum rating marked on the brush. Always wear appropriate eye protection and follow applicable shop safety standards when operating rotary wire brushes at speed.
