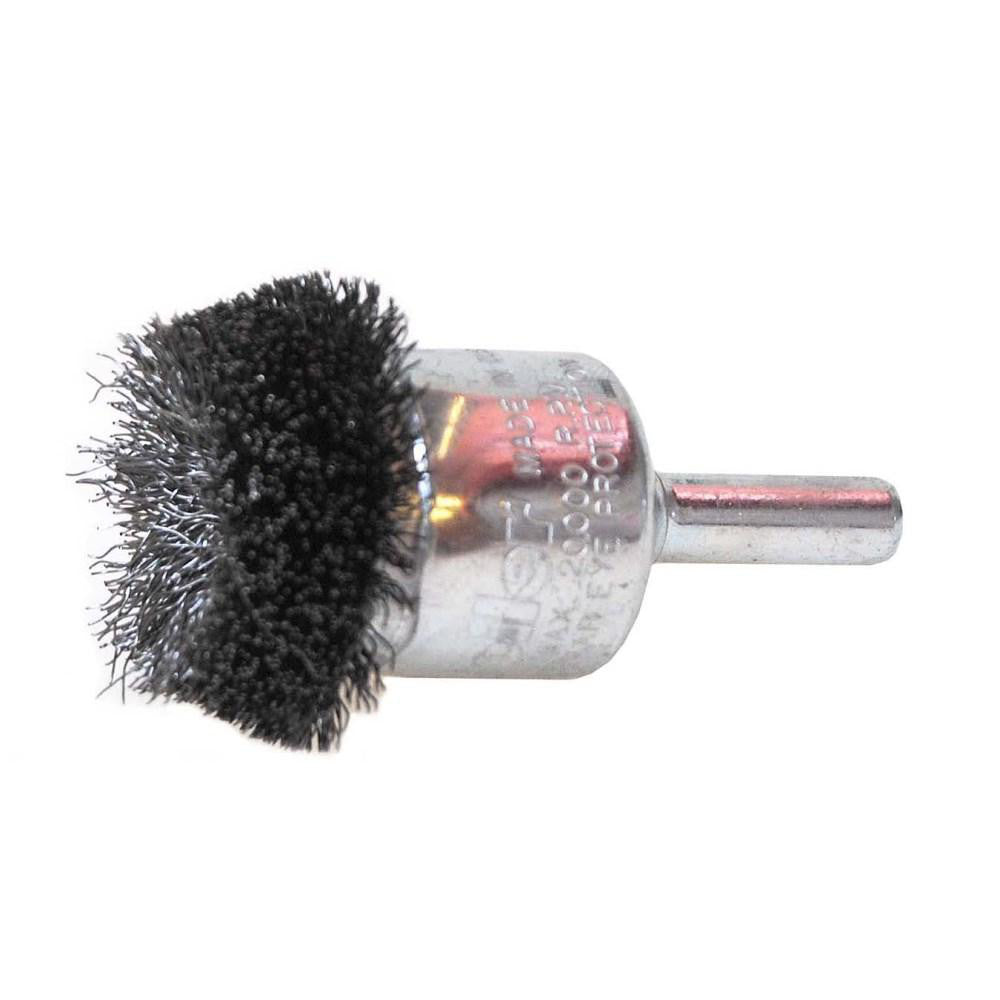

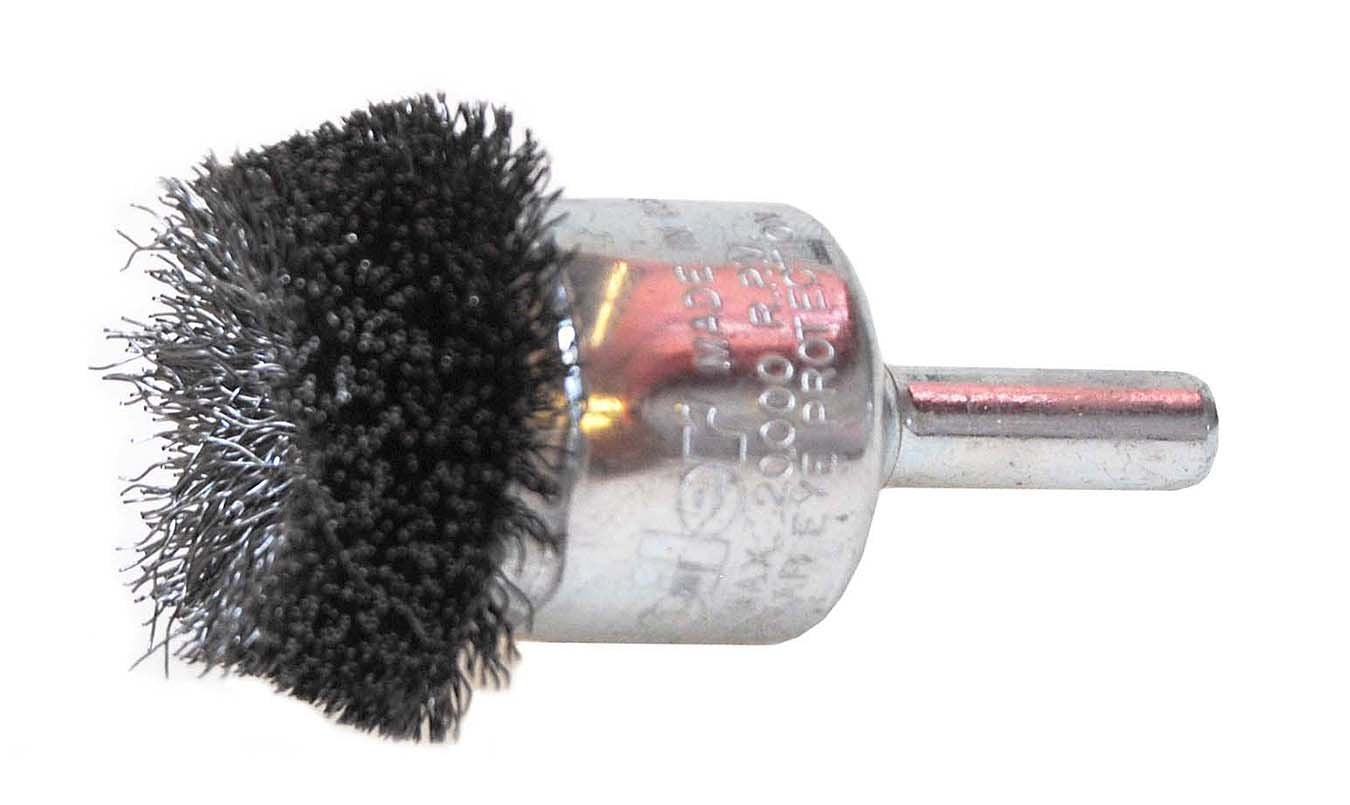

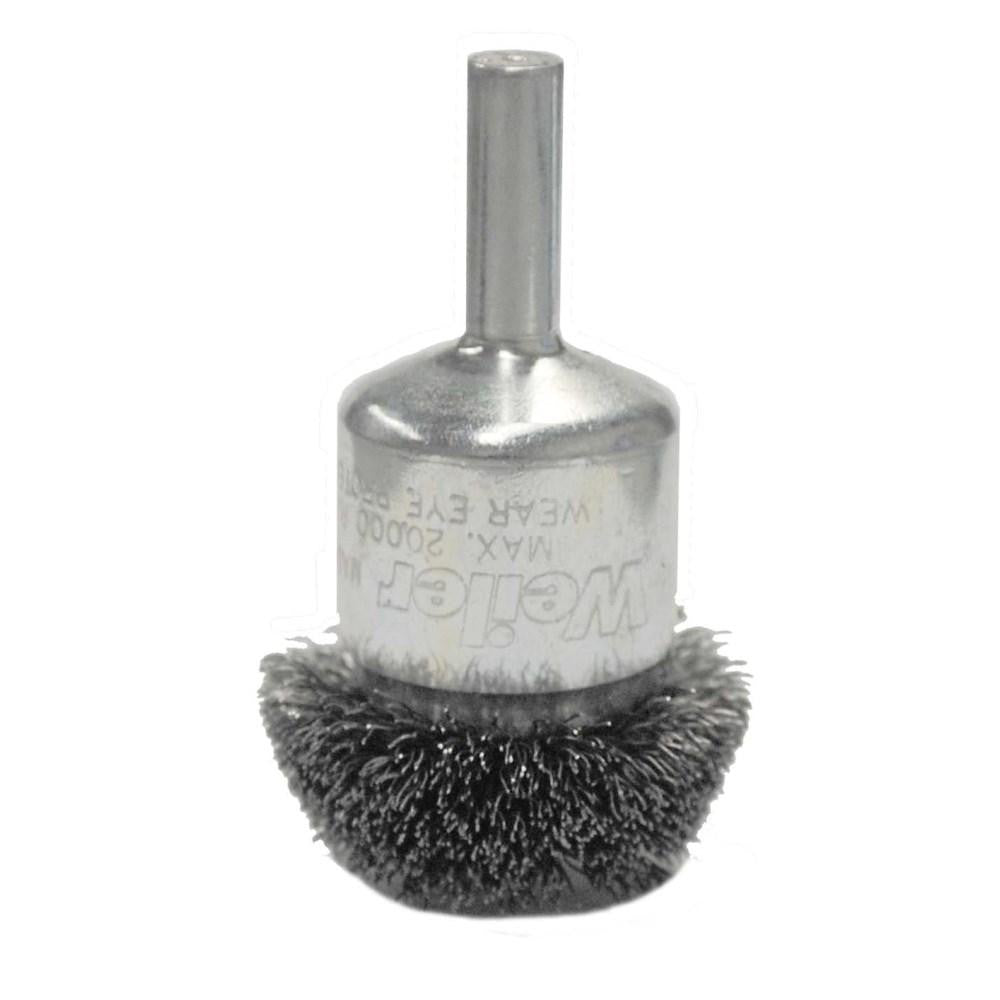

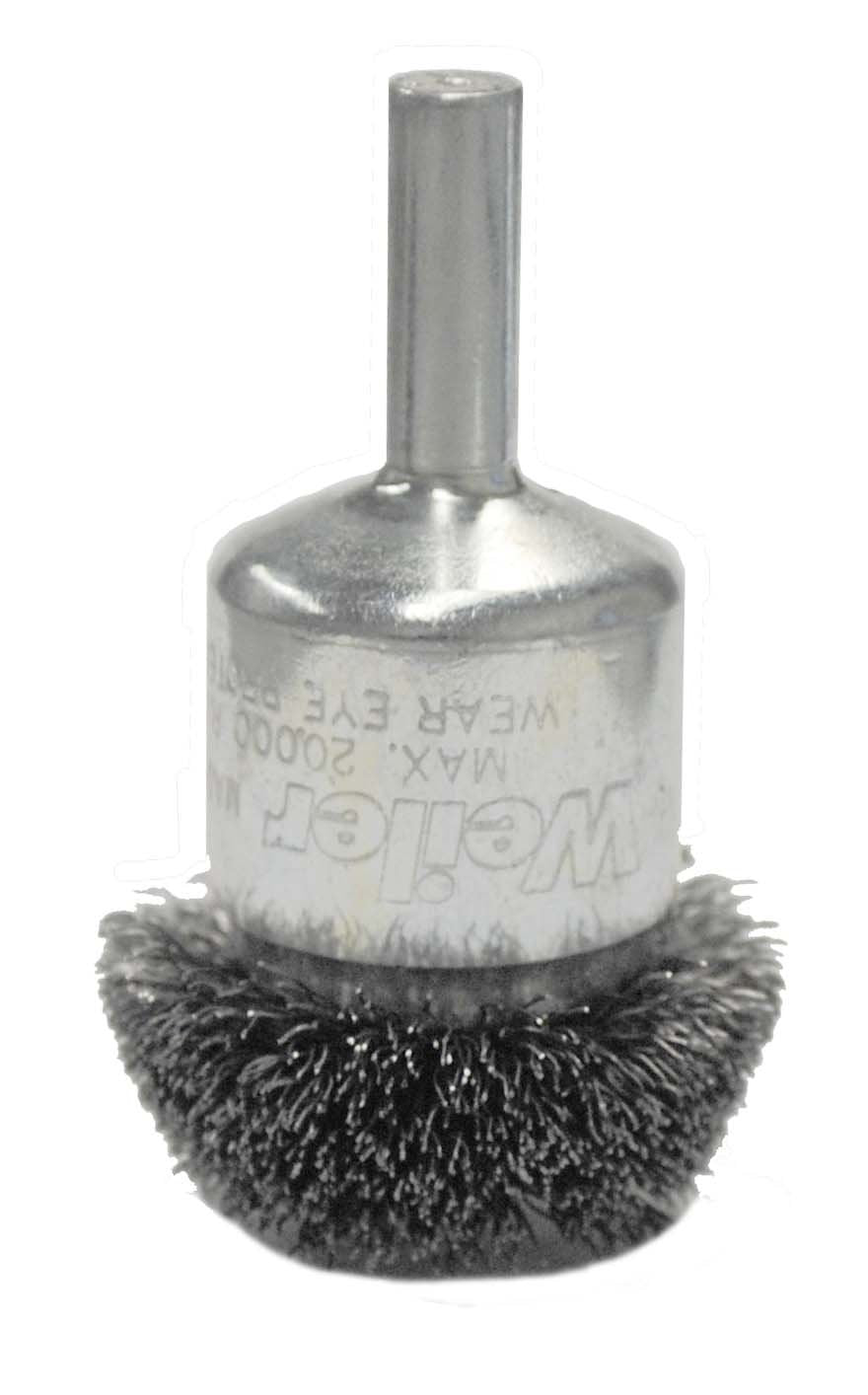

Weiler 10035 Circular Flared Crimped Wire End Brush, 1-1/4 inches, 0.08 inches Steel Fill

Product Description

The Weiler 10035 Circular Flared Crimped Wire End Brush features a 1-1/4 inch diameter and 0.08 inch steel fill. Made in the USA, this brush is designed with crimped wire fill pre-flared to match the working angle at operating speed. It is suited for addressing broad and slightly contoured surfaces. The brush has a 1/4" stem diameter for use on die grinders and right angle die grinders.

• Circular flared crimped wire end brush
• 1-1/4" diameter
• 0.08" steel fill
• Made in The USA

Product Highlights

This circular flared crimped wire end brush is ideal for use on high-speed portable power tools for addressing smaller surfaces and recessed areas.

Product Information

Standard Information

• Brand: WEILER
• Manufacturer Part Number: 10035
• Country of Origin: USA

Technical Specifications

• Material: Alloy Steel
• Bristle Type: Crimped Wire
• Grit Material: Steel
• Brush Diameter: 1-1/4 in
• Filament/Wire Diameter: 0.008 in
• Filament/Wire Type: Crimped
• Fill Material: Steel
• Maximum Speed: 20000 rpm
• Overall Length: 1-5/8 in
• Shank Diameter: 1/4 in
• Trim Length: 7/8 in
• Type: Circular Flared
• Applications: Deburring; Cleaning; Finishing
• Speed [Nom]: 20,000 rpm
• Stem Diam: 1/4 in
• Structure: Crimped
• Used With: Die Grinders; Right-Angle Air Die Grinders
• Wire Size [Nom]: 0.008 in
• Diameter: 1-1/4 IN
• Industry: Manufacturing
• Maximum RPM: 20000
• Stem Length: 5/8 IN
• Product Type: End Brushes
• ANSI Standard: B165.1
• Fill Diameter: 0.008 IN
• Stem Diameter: 1/4 IN
• Attachment Type: Unthreaded Stem
• Sales Unitof Measure: EA
• Standard Pack Quantity: 1
• AA Item#: W10035
• Weiler Brush Part#: 10035
• Manufacturer: Weiler Brush
• Brush Diameter (Decimal Inch): 1-1/4
• Wire Type: Crimped
• Maximum Rpm: 20000
• Shank Included: Yes
• Material Application: Steel
• Piloted: No
• Bridled: No
• Encapsulated: No
• Features: Pre-Flared to Match Working Angle; Crimped Wire Fill
• Flared: Yes
• Hollow Center: No
• Filament/Wire Diameter Range (Decimal Inch): Up to 0.0100
• Shank Length (Inch): 3/4
• Shank Diameter (mm): 6.00
• UNSPSC Code: 31191521
• Bristle Material: Steel
• Bristle Diameter: 0.008 in
• Package Quantity: 1 per Pack
• Brush Width: 1.15 in
• Disc Diameter: 1-1/4 in
• Material Compatibility: Steel
• Outside Diameter: 1 1/4 in
• Wheel Diameter: 1-1/4 in
• Mount Type: Shank
• Flared Bristles: Flared
• Specification: ANSI B165.1
• Manufacturer Upc Number: 012382100353
• UPC_NO: 012382100353
• Mfr. Part#: 10035
• UPC ID: 12382100353
• Wire Form: Crimped
