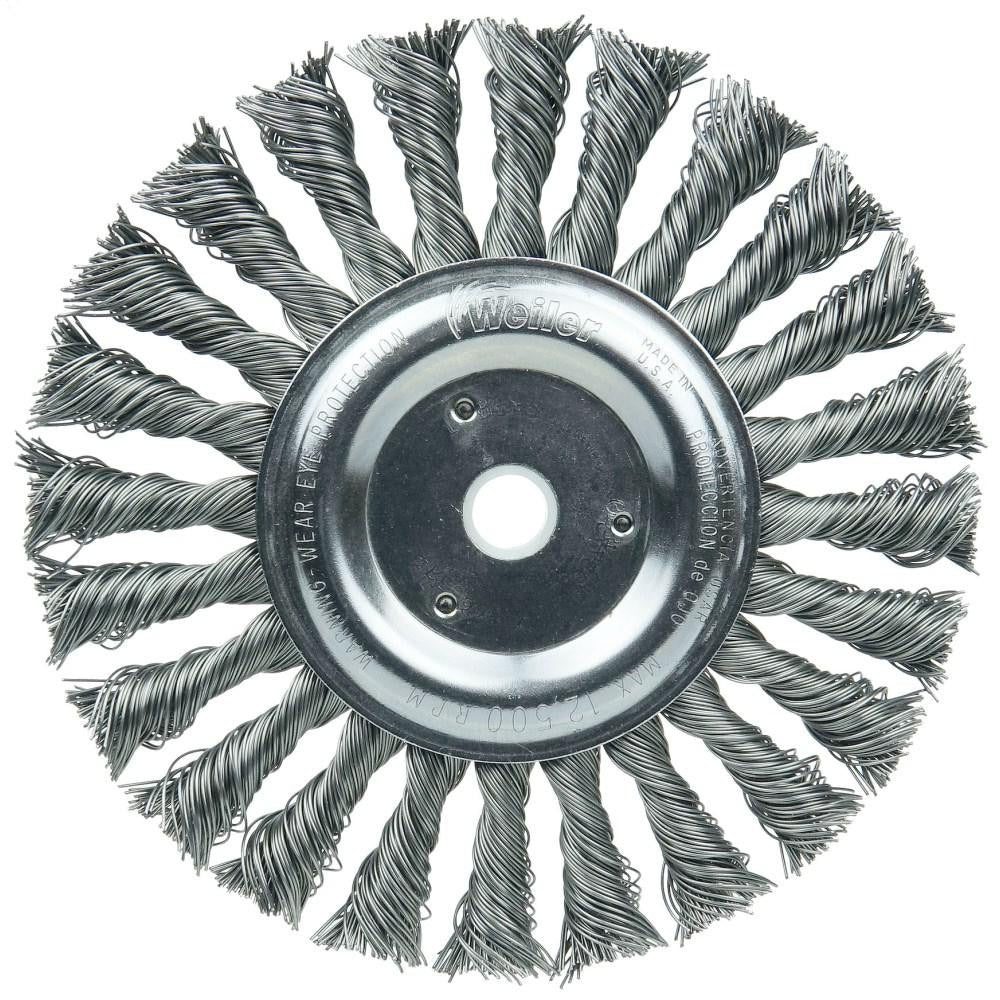

Weiler 08775 Knotted Wire Wheel Brush 6 Inch 12500 Rpm

Product Description

The WEILER 08775 is a knotted wire wheel brush designed for aggressive surface preparation, weld cleaning, and rust or scale removal on metal workpieces. The 6-inch diameter wheel uses stringer bead twist knotted carbon steel wire, which concentrates contact force along the wire tips for faster cutting action compared to crimped fill. With a rated maximum speed of 12,500 RPM, this brush is compatible with angle grinders and bench grinders equipped with a standard arbor hole mount. The 1/2-inch face width keeps abrasive contact focused, while the 1-3/8-inch trim length provides the wire flex needed to conform to irregular surfaces without premature fatigue.

This wheel brush is suited for industrial maintenance, fabrication shops, and field metalwork where light to medium deburring, slag removal, and surface conditioning are required. The arbor hole mount fits standard 5/8-inch arbor spindles, making it a common choice for both bench-mounted and portable right-angle grinder setups. It is used by ironworkers, welders, pipefitters, and general maintenance technicians. The carbon steel fill is appropriate for ferrous metal applications where wire contamination of the base material is not a concern.

Key Features

• Stringer bead twist knotted wire for aggressive material removal and weld cleaning
• 6-inch outside diameter rated to 12,500 RPM maximum operating speed
• Carbon steel fill wire, 0.020 to 0.029 inch diameter range
• 1/2-inch face width for focused contact on narrow surfaces and weld beads
• 1-3/8-inch trim length provides controlled wire flex and extended service life
• Arbor hole mount, no shank included, fits 5/8-inch arbor spindles

Compatibility

Designed for use with angle grinders and bench grinders that accept a 5/8-inch arbor hole mounted wheel brush. Suitable for ferrous metal surface preparation applications.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive wheel safety per ANSI B11 and OSHA 29 CFR 1910.243 guidelines. Always de-energize and unplug the grinder before mounting or removing the wheel brush. Verify that the tool spindle speed does not exceed the 12,500 RPM rating marked on this brush before operation. Wear appropriate personal protective equipment including face shield, gloves, and hearing protection during use.
