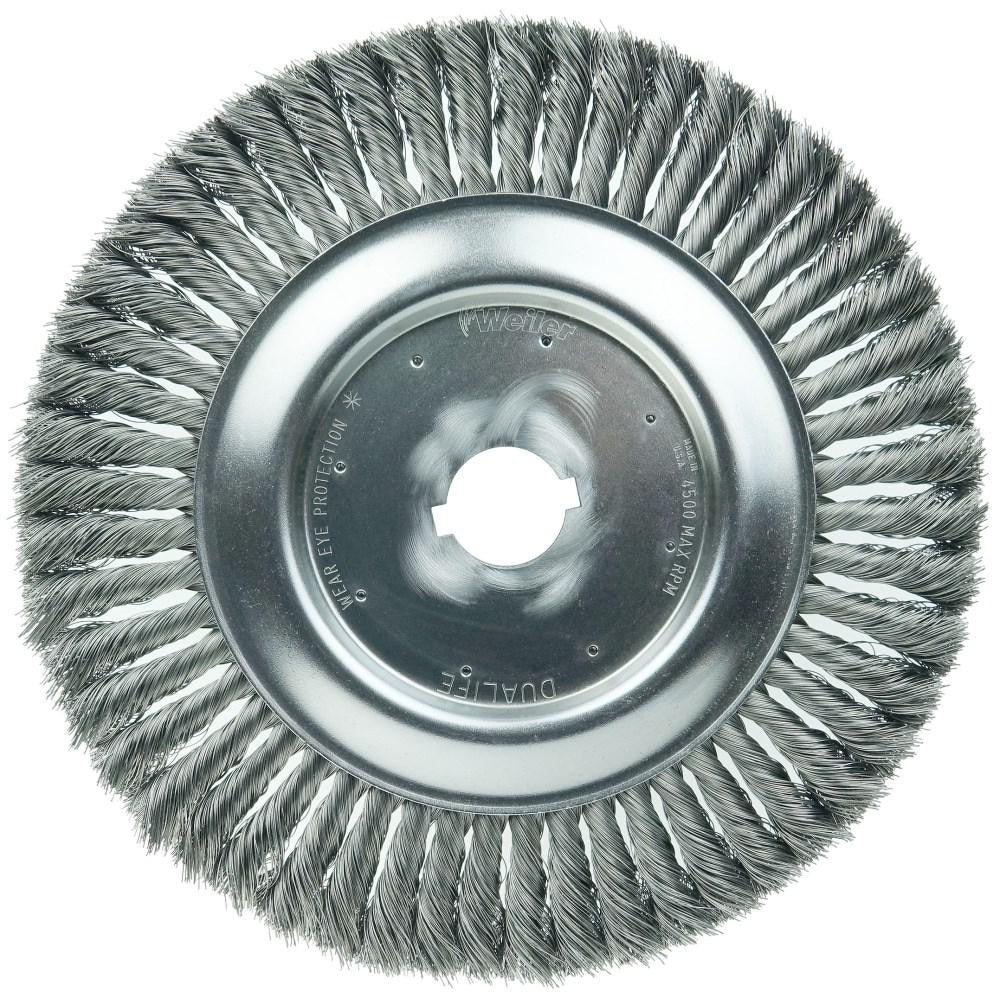

Weiler 08179 Wheel Brush 10 Inch Knotted Carbon Steel

Product Description

The WEILER 08179 is a knotted wire wheel brush designed for aggressive surface preparation and cleaning on bench grinders, pedestal grinders, and straight grinders. The 10-inch outside diameter brush uses standard-twist knotted carbon steel wire to deliver the bite needed for weld spatter removal, rust and scale cleaning, and surface conditioning on metal workpieces. The arbor hole mount with two-keyway style seats securely on compatible grinder spindles. Rated to 4,500 RPM, this brush handles sustained heavy-duty use in fabrication shops and maintenance environments. It weighs 3.5 pounds and carries a 3/4-inch face width with a 1-3/4-inch trim length.

This wheel brush is intended for use on bench or pedestal grinders and straight grinders in industrial and trade settings. Typical applications include deburring, descaling, rust removal, and weld cleanup on structural steel, pipe, and fabricated metal components. The knotted wire construction concentrates wire tips for more aggressive cutting action compared to crimped wire styles. Metal fabricators, pipefitters, ironworkers, and maintenance technicians are the primary users of this brush type.

Key Features

• 10-inch outside diameter knotted wire wheel brush for bench, pedestal, and straight grinders
• Standard-twist knotted carbon steel wire for aggressive rust, scale, and weld spatter removal
• Two-keyway arbor hole style for secure, centered mounting on grinder spindles
• 4,500 RPM maximum speed rating suitable for sustained heavy-duty grinding applications
• 3/4-inch face width and 1-3/4-inch trim length provide good wire contact and flex across workpiece surfaces
• Filament wire diameter in the 0.010 to 0.019 inch range balances aggression with brush longevity

Compatibility

Designed for use on bench grinders, pedestal grinders, and straight grinders equipped with a compatible arbor hole spindle. No shank is included; the brush mounts via the two-keyway arbor hole.

Installation Notes

Installation should be performed by a qualified operator following the grinder and brush manufacturer guidelines. Always de-energize and lock out the grinder before mounting or removing the brush. Verify that the grinder spindle speed does not exceed the 4,500 RPM maximum rating of the brush before operation. Use appropriate PPE including a face shield, safety glasses, and gloves during installation and use, and confirm the brush guard is properly in place before starting the grinder.
