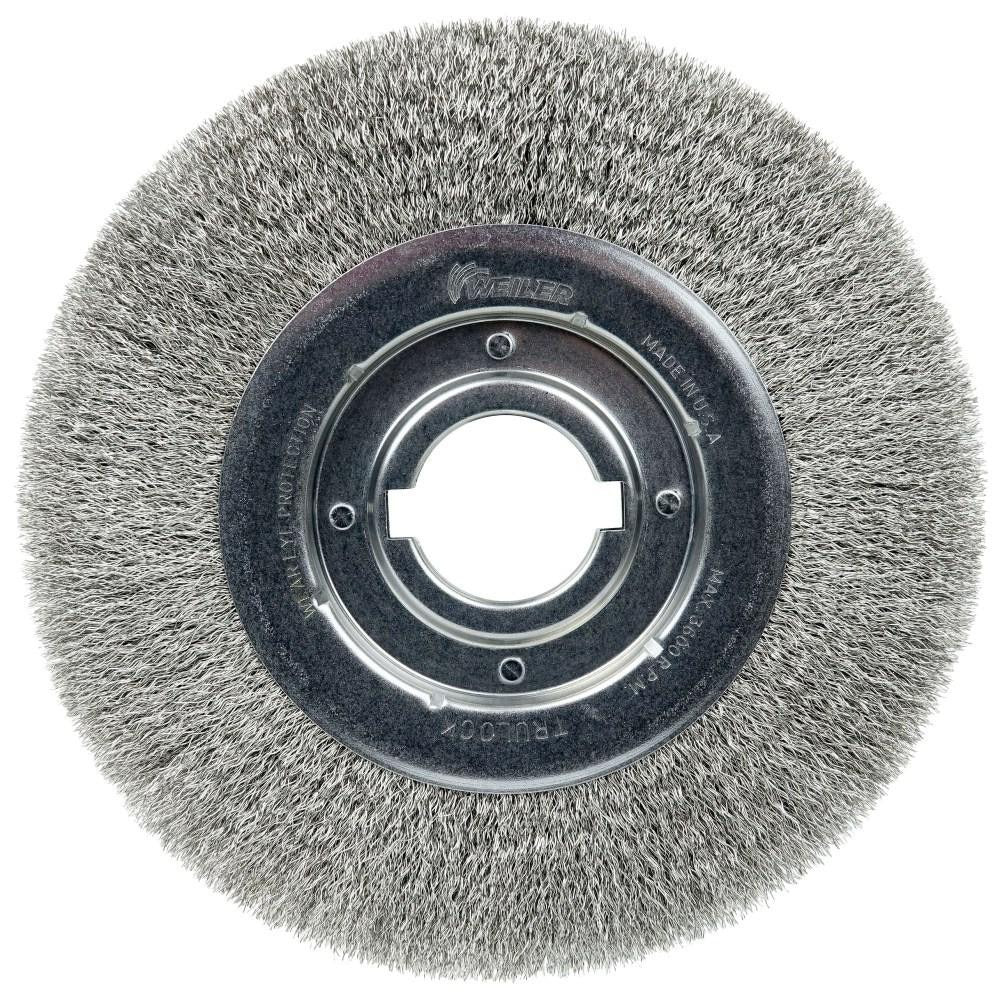

Weiler 06530 Wheel Brush 10 Inch Stainless Steel Crimped

Product Description

The WEILER 06530 is a 10-inch arbor-mount wheel brush designed for aggressive surface conditioning, deburring, and cleaning on metal workpieces. It uses crimped stainless steel wire with a filament diameter in the 0.010 to 0.019 inch range, which delivers consistent, controlled abrasive action across the face. The brush mounts via an arbor hole with a two-keyway configuration and carries a maximum operating speed of 3,600 RPM. With a face width of 1-1/8 inches and a trim length of 2 inches, it suits production-scale material finishing where a stable, repeatable cut pattern is required. Fabricators, machinists, and maintenance techs are the typical users.

This wheel brush is rated for use on bench or pedestal grinders, automatic machines, CNC machines, and milling equipment. Its stainless steel wire construction makes it appropriate for work on stainless steel, aluminum, and other materials where carbon steel wire contamination must be avoided. The crimped wire fill provides a softer, more flexible action compared to knotted wire, making it well suited for finishing passes and light to medium deburring in production environments.

Key Features

• 10-inch outside diameter with a 1-1/8-inch face width for broad surface coverage
• Crimped stainless steel wire resists corrosion and prevents material contamination
• Filament diameter range of 0.010 to 0.019 inches for controlled finishing action
• Two-keyway arbor hole style for secure, positive mounting on compatible spindles
• Rated to 3,600 RPM for use on bench grinders, pedestal grinders, and CNC equipment
• 2-inch trim length provides flexibility and consistent wire contact pressure

Compatibility

Designed for arbor-hole mounting on bench grinders, pedestal grinders, automatic machines, and CNC milling equipment that accept a 10-inch wheel brush with a two-keyway arbor hole. No shank is included.

Installation Notes

Installation should be performed by a qualified operator following the grinder or machine manufacturer's mounting instructions. Always power down and lock out the machine before mounting or removing the brush. Confirm that the machine spindle speed does not exceed the 3,600 RPM maximum rating of this brush before operation. Eye protection and appropriate PPE are required when operating wire wheel brushes.
