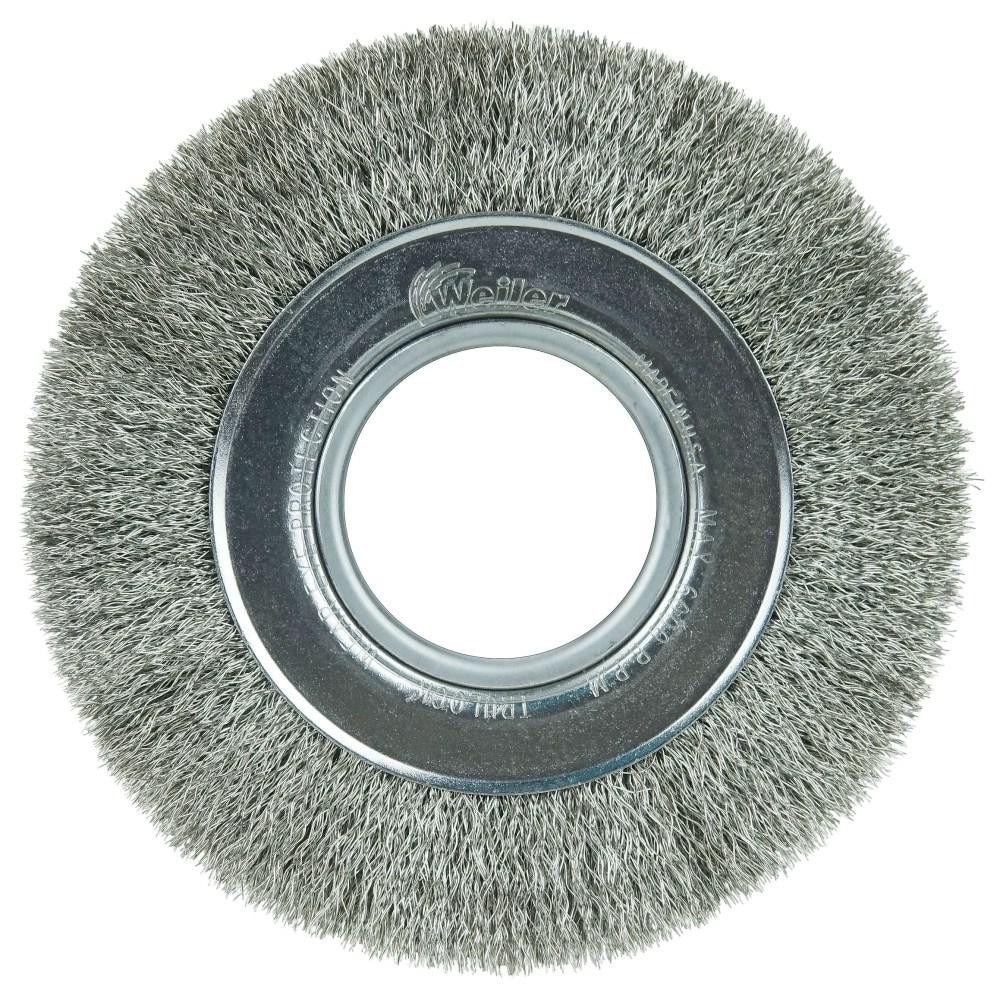

Weiler 06440 Wheel Brush 6 in Crimped Stainless 6000 Rpm

Product Description

The WEILER 06440 is a 6-inch diameter crimped wire wheel brush designed for aggressive surface preparation, deburring, and cleaning on metal workpieces. It mounts via an arbor hole and is fitted with stainless steel crimped wire filaments in the 0.010 to 0.019 inch diameter range, providing consistent flexibility and even pressure across the work surface. Rated to 6,000 RPM, this brush is built for sustained use on bench or pedestal grinders as well as automated equipment. The 1-inch face width and 1-1/8 inch trim length deliver controlled contact with the part surface. No shank is included; direct arbor mounting is required.

This wheel brush is suited for use on bench or pedestal grinders, CNC machining centers, milling machines, and automatic processing equipment. It is a common choice in metalworking and fabrication shops where stainless steel wire is required to avoid carbon contamination on stainless or non-ferrous workpieces. The crimped wire construction handles light to medium surface finishing tasks across a range of industrial and shop environments.

Key Features

• 6-inch outside diameter with a 1-inch face width for broad surface contact
• Crimped stainless steel wire resists corrosion and prevents cross-contamination on sensitive alloys
• Wire filament diameter range of 0.010 to 0.019 inches provides flexible, even brushing action
• 6,000 RPM maximum speed rating supports use on standard bench and pedestal grinders
• 1-1/8 inch trim length with arbor hole mount for secure, direct spindle attachment
• Compatible with automatic machines, CNC equipment, and milling applications

Compatibility

Designed for use on automatic machines, bench or pedestal grinders, CNC machines, and milling equipment where an arbor hole mounted wheel brush is required. No shank is included; verify arbor hole sizing before installation.

Installation Notes

This brush is installed by a qualified operator or maintenance technician on a grinder or machine spindle using the arbor hole mount. Always power down and lock out the machine before mounting or removing the brush. Verify the spindle speed does not exceed the 6,000 RPM maximum rating marked on the brush. Wear appropriate eye protection and follow applicable ANSI B11 or shop safety standards when operating wheel brushes.
