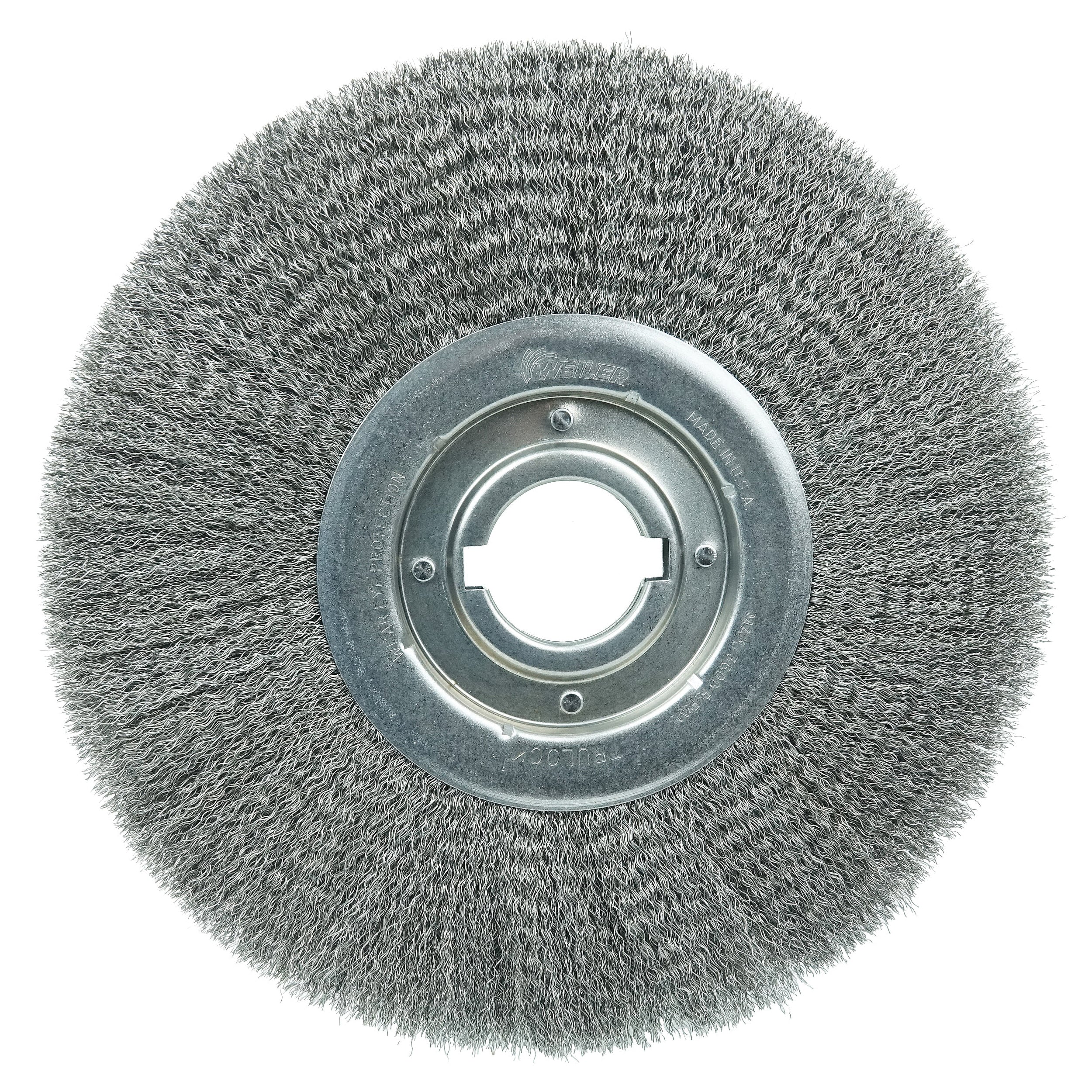

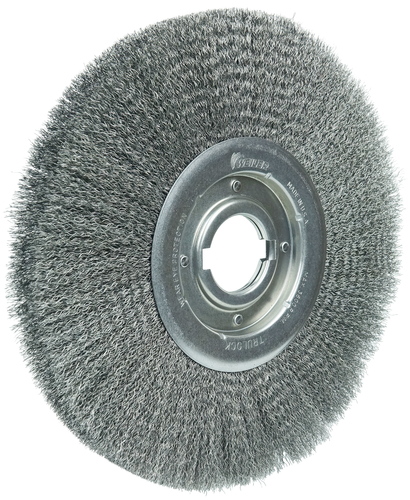

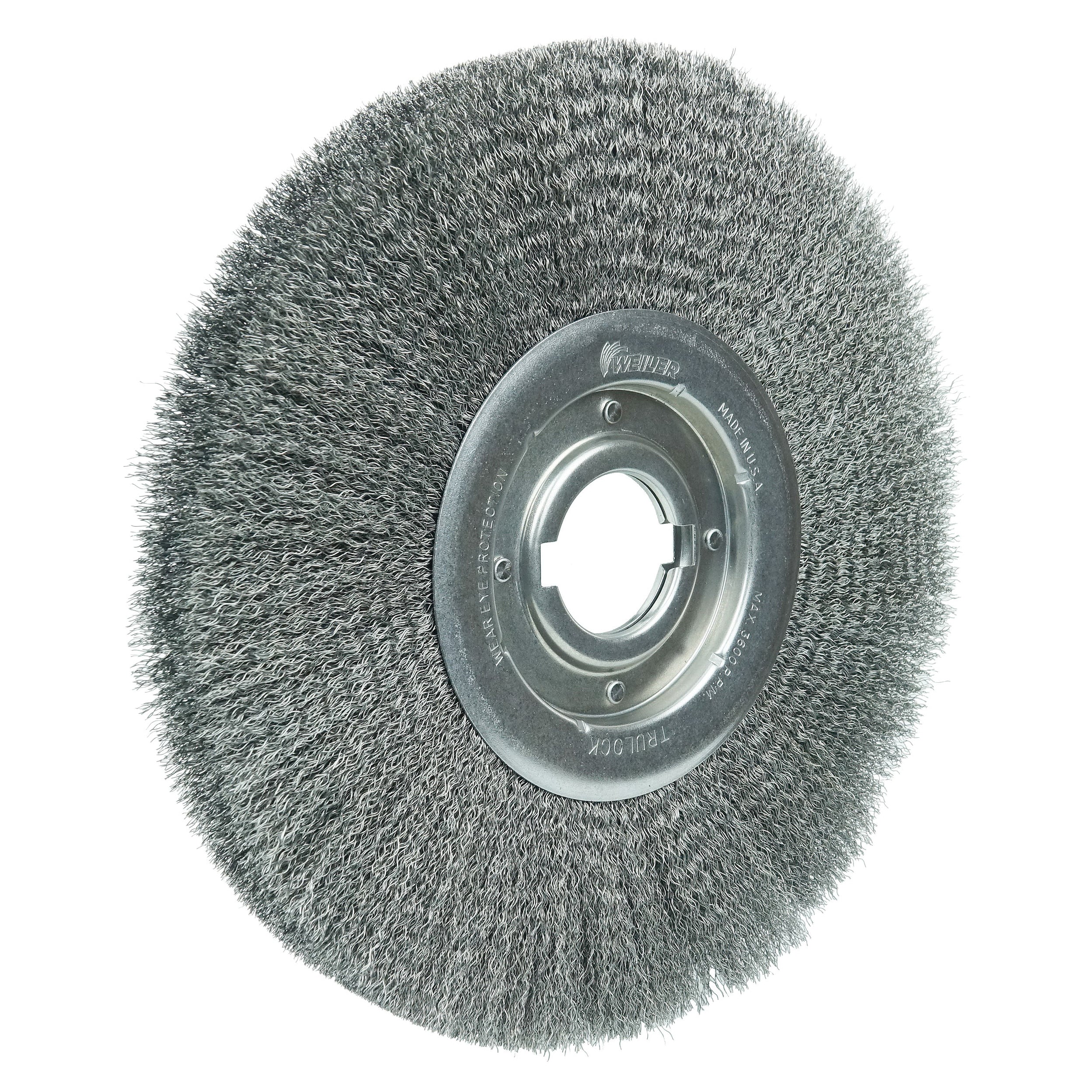

Weiler 06190 Medium crimped wire wheel 3600 RPM (12 in)

Product Description

Weiler 06190 is a medium-face crimped wire wheel brush with a 12 in diameter and a 2 in arbor hole for mounting. It uses 0.014 in crimped steel filaments, offers a 1-1/4 in face width and 3 in trim length, and has a maximum operating speed of 3,600 rpm. The unthreaded arbor attachment and radial solid-ring construction are intended for bench and pedestal grinders and light surface preparation tasks.

• 12 in diameter wheel with 1-1/4 in face width and 3 in trim length
• 0.014 in crimped steel filaments, solid ring radial construction
• Unthreaded 2 in arbor hole, maximum speed 3,600 rpm

Product Highlights

12 in medium-face crimped steel wire wheel; 0.014 in filaments; 2 in unthreaded arbor; 3,600 rpm max.

Product Information

Standard Information

• Brand: WEILER
• Manufacturer Part Number: 06190
• Country of Origin: United States

Technical Specifications

• Brand: Weiler
• Manufacturer Part Number: 06190
• Product Type: Crimped wire wheel
• Diameter: 12 in
• Face Width: 1-1/4 in
• Face Type: Medium
• Face Thickness: 1 in
• Filament/Wire Diameter: 0.014 in
• Filament/Wire Type: Crimped
• Fill Material: Steel
• Trim Length: 3 in
• Maximum Speed: 3600 rpm
• Arbor Hole Size: 2 in
• Attachment Type: Unthreaded arbor
• Construction: Solid ring radial brush
• ANSI Standard: B165.1
• Applications: Cleaning; Light deburring; Surface preparation; Edge blending; Roughening
• Country Of Origin: United States
