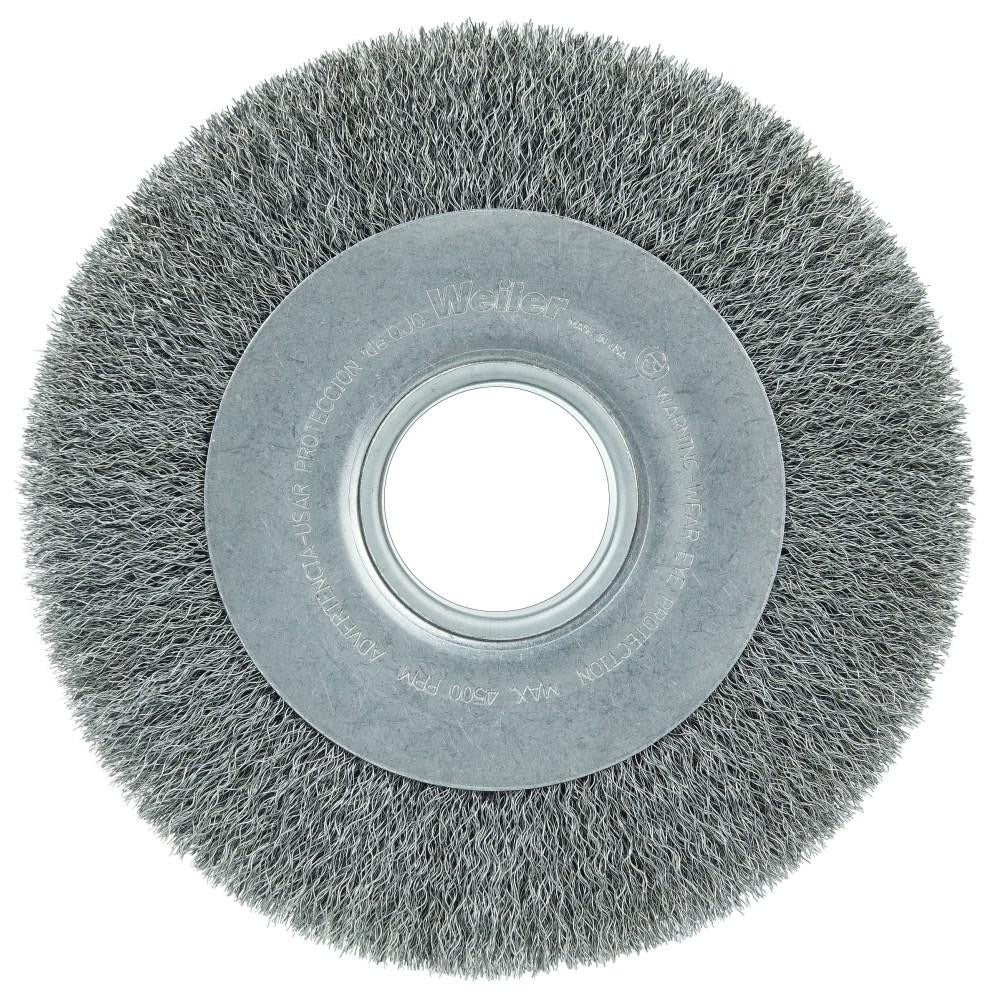

Weiler 06090 Wheel Brush 8 in Crimped Carbon Steel 4500 Rpm

Product Description

The WEILER 06090 is a crimped-wire wheel brush designed for aggressive surface preparation, deburring, and cleaning on bench grinders, pedestal grinders, automatic machines, and CNC milling equipment. Built with carbon steel fill material, this brush measures 8 inches in outside diameter with a 1-inch face width and a trim length of 1-3/8 inches. The arbor-hole mount accepts a 2-inch hole for secure spindle attachment. Rated to 4,500 RPM, it delivers consistent wire contact across a range of industrial applications. Filament wire diameter falls in the range up to 0.0099 inches, producing a fine-to-medium cut action suited for scaling, blending, and light stock removal on ferrous metals.

This wheel brush is used in shop environments where a bench or pedestal grinder provides the drive. Common applications include weld seam cleanup, rust and scale removal, part deburring, and surface blending prior to coating or inspection. It is appropriate for automated machine setups including CNC and milling operations where repeatable brush contact is required. The crimped wire construction provides flexibility under load, reducing wire breakage and extending service life compared to knotted configurations under similar duty cycles.

Key Features

• 8-inch outside diameter with 1-inch face width for broad surface contact
• Crimped carbon steel wire for flexible, consistent scratch pattern
• Rated to 4,500 RPM for bench grinder and pedestal grinder use
• Arbor-hole mount with 2-inch hole diameter for direct spindle fitting
• Trim length of 1-3/8 inches for effective reach into contoured or irregular surfaces
• Compatible with automatic machines and CNC milling setups

Compatibility

Designed for use on bench grinders, pedestal grinders, automatic machines, and CNC milling equipment that accept an arbor-hole mounted wheel brush with a 2-inch hole diameter and a maximum speed rating of 4,500 RPM or lower.

Installation Notes

Installation should be performed by a qualified machine operator or maintenance technician. Power down and lock out the grinder or machine spindle before mounting or removing the brush. Verify the machine spindle speed does not exceed the 4,500 RPM rating of this brush before operation. Always install appropriate guards per ANSI and machine manufacturer requirements before running the brush.
