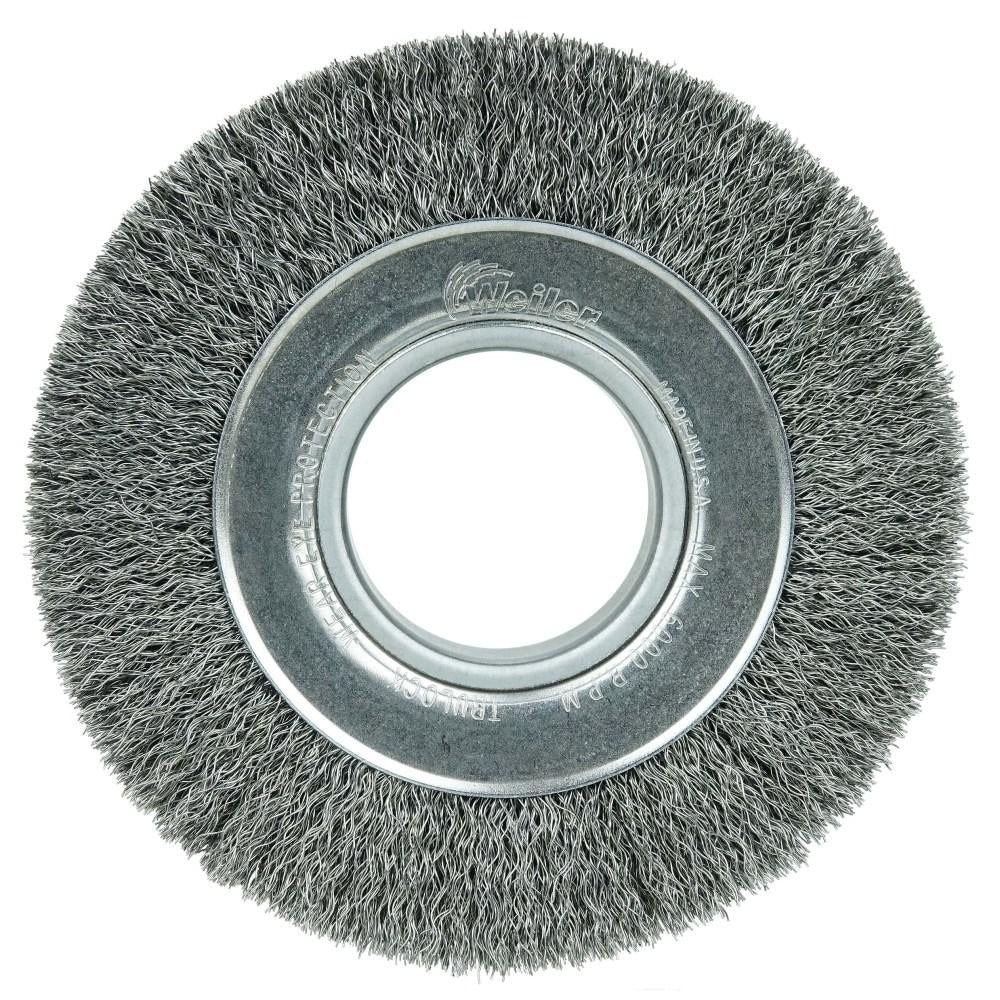

Weiler 06070 Wheel Brush 6 in Crimped Carbon Steel 6000 Rpm

Product Description

The WEILER 06070 is a 6-inch diameter crimped wire wheel brush designed for aggressive surface preparation, deburring, and cleaning on metal workpieces. It mounts via an arbor hole and is fitted with carbon steel crimped wire filaments rated for use up to 6,000 RPM. The 1-inch face width and 1-1/8-inch trim length give the brush enough contact area to work efficiently across flat and contoured surfaces. At 1.5 pounds, it is sized for bench or pedestal grinders and compatible power equipment commonly found in fabrication and machining environments. No shank is included; an appropriate arbor adapter is required for mounting.

This wheel brush is suited for use on bench or pedestal grinders, straight grinders, and automated machining setups including CNC machines and automatic machines. Typical applications include weld cleanup, rust and scale removal, burr removal, and surface conditioning on carbon steel and similar ferrous materials. It is also noted for milling-adjacent surface work where consistent wire contact and controlled aggressiveness are required.

Key Features

• 6-inch outside diameter with 1-inch face width for broad surface contact
• Crimped carbon steel wire construction for flexible, consistent abrasive action
• Rated to 6,000 RPM for use on bench grinders, pedestal grinders, and straight grinders
• Arbor hole mount — compatible with standard arbor adapters; no shank included
• 1-1/8-inch trim length supports controlled wire deflection during operation
• Suitable for automatic machines and CNC machine integration

Compatibility

Designed for use on bench or pedestal grinders, straight grinders, automatic machines, CNC machines, and milling equipment where an arbor hole mount and up to 6,000 RPM operating speed are supported.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive wheel safety. Power down and lock out the grinder or machine before mounting or removing the brush. Verify that the spindle speed of the host machine does not exceed the 6,000 RPM rating marked on the brush. Inspect the wire fill for damage before each use and do not operate a brush with broken or missing wire segments. Always use appropriate eye protection and guards per applicable ANSI B11 or OSHA standards when operating wire wheel brushes.
