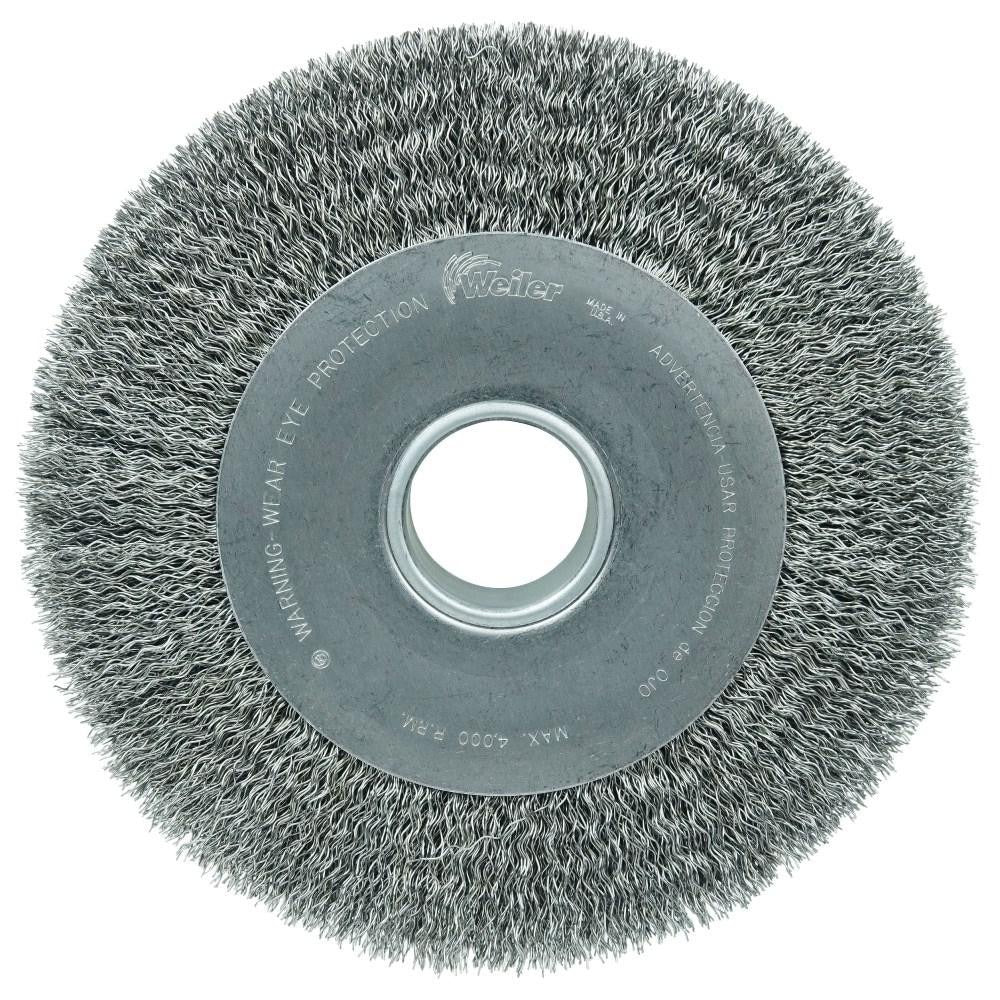

Weiler 03200 Wheel Brush 10 Inch Carbon Steel Crimped

Product Description

The WEILER 03200 is a 10-inch diameter wheel brush designed for aggressive surface conditioning, deburring, cleaning, and finishing on metal workpieces. It uses crimped carbon steel wire filaments in a diameter range of 0.0100 to 0.0199 inches, which allows the brush to flex and conform to irregular surfaces while maintaining consistent contact pressure. The brush mounts via an arbor hole with a 2-inch bore and is rated to a maximum of 4,000 RPM. The 1-5/8-inch face width and 1-7/8-inch trim length make it well suited for medium-to-heavy-duty surface work. No shank is included. Metalworking professionals and machine operators are the primary users of this tool.

This wheel brush is built for use on automatic machines, CNC machines, bench grinders, pedestal grinders, and milling equipment. Its arbor hole mount provides a secure, centered fit on standard machine spindles. Typical applications include scale removal, weld cleanup, rust removal, and surface preparation on steel and other ferrous metals. The crimped wire configuration delivers a more aggressive cut than knotted wire brushes in many finishing passes and suits production environments where consistent, repeatable results are required.

Key Features

• 10-inch outside diameter for broad surface contact on large workpieces
• Crimped carbon steel wire for flexible, consistent abrasive action
• Arbor hole mount fits standard bench, pedestal, and CNC machine spindles
• 1-5/8-inch face width provides a wide cleaning path per pass
• 1-7/8-inch trim length supports extended brush life and reach into contoured surfaces
• Rated to 4,000 RPM for compatibility with standard industrial grinder speeds

Compatibility

Designed for use on automatic machines, bench or pedestal grinders, CNC machines, and milling equipment that accept a 2-inch arbor hole wheel brush mount.

Installation Notes

Installation is performed by qualified machine operators or maintenance personnel familiar with bench and pedestal grinder safety practices. Always power down and lock out the machine before mounting or removing the brush. Verify that the machine spindle speed does not exceed the 4,000 RPM rating of the brush before operation. Ensure the arbor hole bore and spindle diameter are properly matched and that all flanges and guards are reinstalled before restarting the machine.
