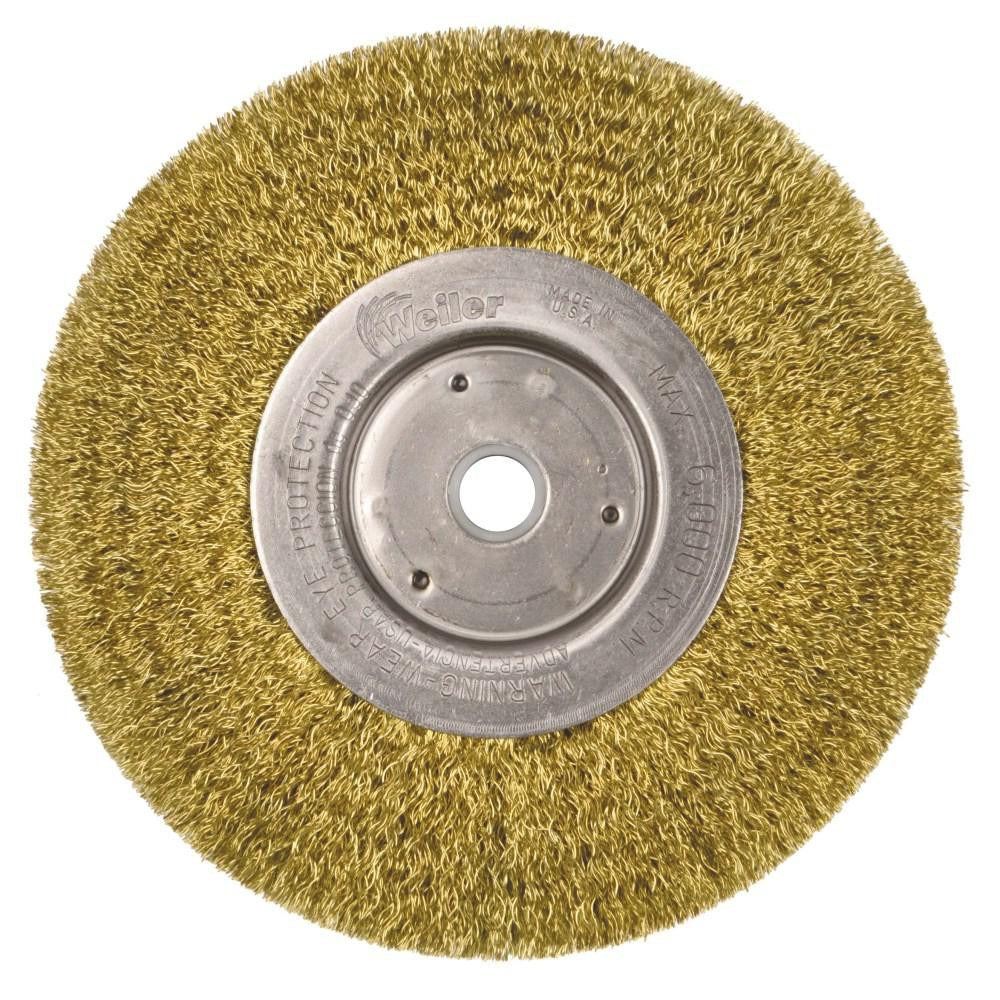

Weiler 01475 Wheel Brush 6 Inch Crimped Brass

Product Description

The WEILER 01475 is a 6-inch diameter wheel brush designed for deburring, cleaning, and surface finishing in industrial and trade applications. It mounts via a 5/8-inch arbor hole and uses crimped brass wire filaments with a diameter in the 0.010 to 0.019 inch range. The 1/2-inch face width and 1-1/16-inch trim length provide consistent contact across the work surface. Rated at 6,000 RPM, this brush is built for use on bench grinders, pedestal grinders, CNC machines, milling machines, and automatic processing equipment. It ships without a shank and is not encapsulated. Total weight is 0.5 pounds.

This wheel brush is suited for metalworking and fabrication environments where controlled wire action is needed on ferrous and non-ferrous materials. The crimped brass wire construction makes it a common choice for applications where softer wire action is required to avoid marring or where sparking must be minimized. Typical use cases include edge blending, weld cleanup, scale removal, and light surface prep on precision components running on automatic machines or manual bench setups.

Key Features

• 6-inch outside diameter for broad surface coverage on standard grinder spindles
• Crimped brass wire filaments for controlled, softer wire action with reduced sparking
• Wire filament diameter range of 0.010 to 0.019 inches for fine finishing work
• 1/2-inch face width and 1-1/16-inch trim length for consistent brush contact
• 5/8-inch arbor hole mount — no shank included, direct arbor mounting required
• 6,000 RPM maximum speed rating for use on bench, pedestal, CNC, and automatic machines

Compatibility

Compatible with bench grinders, pedestal grinders, CNC machines, milling machines, and automatic processing equipment fitted with a 5/8-inch arbor spindle. Verify that the machine spindle speed does not exceed the 6,000 RPM rating of this brush before installation.

Installation Notes

Installation is performed by machinists or tool and die technicians familiar with bench and pedestal grinder setups. Power down and lock out the grinder before mounting the brush on the arbor spindle. Confirm spindle speed does not exceed 6,000 RPM and that the arbor hole size matches the 5/8-inch spindle before operating. Always use appropriate eye and face protection when operating wire wheel brushes.
