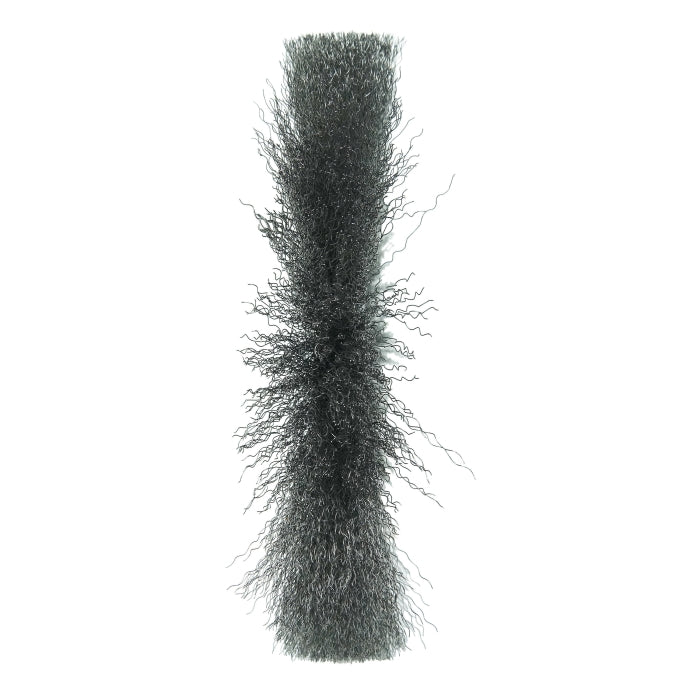

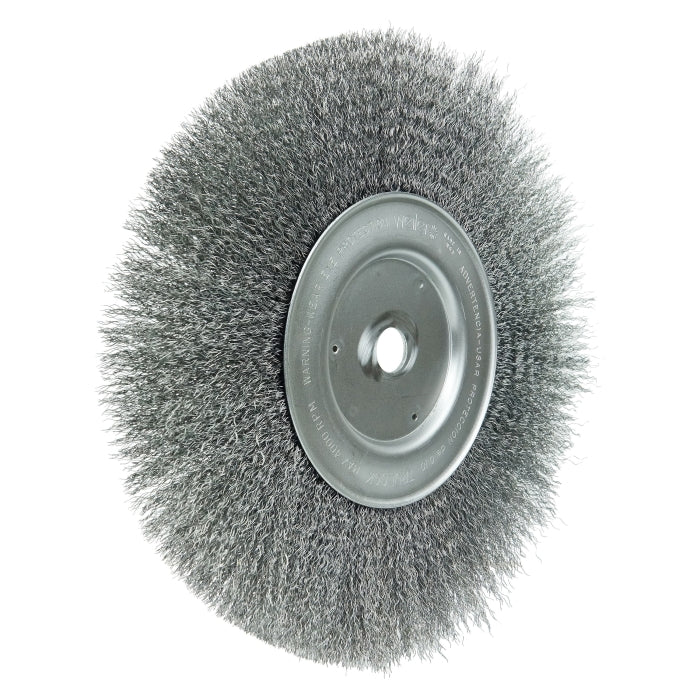

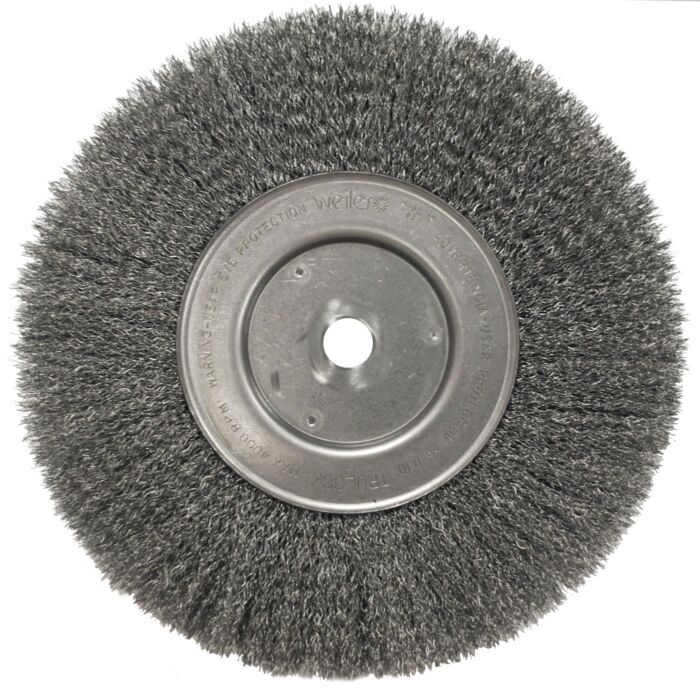

Weiler 01238 Narrow Face Crimped Wire Wheel (10 in Diameter, 3/4 in Face Width)

Product Description

Weiler 01238 is a narrow face crimped wire wheel brush designed for light-duty cleaning and deburring. The wheel has a 10 in diameter, 3/4 in face width and a 3/4 in unthreaded arbor hole, with crimped steel filaments of 0.0104 in diameter and a 2-1/2 in trim length. The brush operates up to 4000 rpm and provides a flexible brushing action for straight and stationary grinders.

• 10 in diameter, 3/4 in face width, 3/4 in unthreaded arbor
• Crimped steel filaments, 0.0104 in diameter, 2-1/2 in trim length
• Maximum operating speed 4000 rpm; flexible brushing action for cleaning and deburring

Product Highlights

Narrow face crimped wire wheel for straight and bench/pedestal grinders; 10 in diameter with .0104 in steel fill and 2-1/2 in trim length.

Product Information

Standard Information

• Brand: WEILER
• Manufacturer Part Number: 01238
• Country of Origin: UNITED STATES

Technical Specifications

• Brand: Weiler
• Manufacturer Part Number: 01238
• Product Type: Narrow face crimped wire wheel
• Diameter: 10 in
• Face Width: 3/4 in
• Arbor Hole Size: 3/4 in
• Attachment Type: Unthreaded arbor
• Bristle Type: Crimped
• Bristle Diameter: 0.0104 in
• Bristle Material: Steel
• Trim Length: 2-1/2 in
• Maximum Speed: 4000 rpm
• Intended Use: Straight grinders; bench/pedestal grinders; buffing lathes
• Construction: Solid ring
• Face Plate Thickness: 5/8 in
• Compatible Materials: Steel; armored steel; cast iron; ductile iron; tool steel
• Standards: ANSI B165.1
• Country of Origin: United States
• Pack Quantity: 2 per pack
