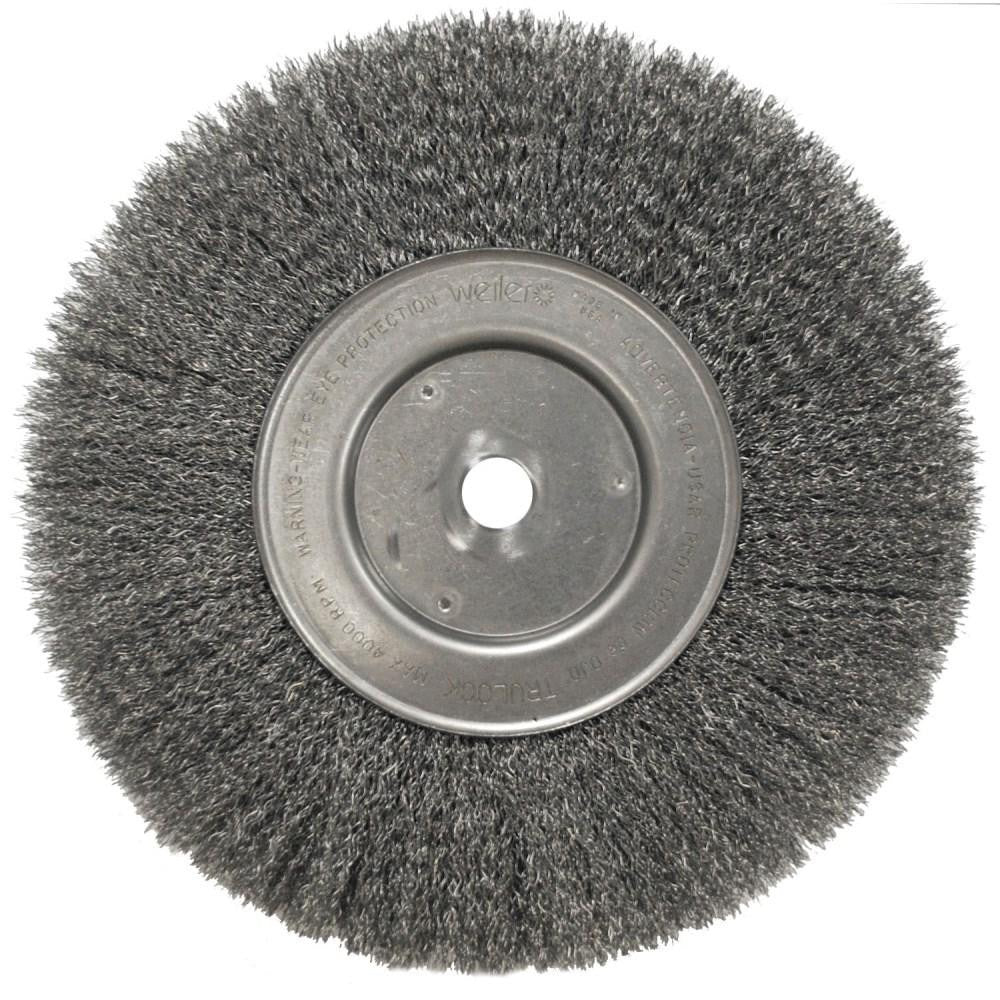

Weiler 01228 Wheel Brush 10 Inch Crimped Carbon Steel

Product Description

The WEILER 01228 is a 10-inch diameter wheel brush designed for surface conditioning, deburring, and cleaning on automated and bench-mounted grinding equipment. It uses a crimped carbon steel fill material with a filament wire diameter up to 0.0099 inches, which provides consistent, flexible contact across irregular surfaces. Mounted via an arbor hole with a 3/4-inch face width, this brush integrates directly into stationary and CNC-driven setups without requiring a separate shank adapter. Rated to 4,000 RPM, it is well-suited for production environments where consistent wire action and controlled material removal are required.

This wheel brush is intended for use on bench or pedestal grinders, automatic machines, CNC machines, and milling equipment. The crimped wire construction makes it effective for light deburring, scale removal, and surface blending on metal workpieces. With a 2-1/2-inch trim length and a 10-inch outside diameter, the brush provides sufficient working reach for standard industrial grinder setups. It is typically specified by machinists, tool and die technicians, and maintenance professionals in fabrication or production environments.

Key Features

• 10-inch outside diameter with 3/4-inch face width for broad surface coverage
• Crimped carbon steel wire construction delivers flexible, consistent brushing action
• Arbor hole mount — no shank included — designed for direct spindle or mandrel mounting
• 4,000 RPM maximum speed rating for compatibility with standard bench and pedestal grinders
• 2-1/2-inch trim length provides working depth suitable for contoured and flat workpieces
• Compatible with automatic machines, CNC machines, bench grinders, and milling equipment

Compatibility

Designed for use on automatic machines, bench or pedestal grinders, CNC machines, and milling equipment with arbor hole spindle configurations. No shank is included; mounting requires a compatible arbor or spindle fixture.

Installation Notes

Installation should be performed by a qualified machinist or maintenance technician following the equipment manufacturer's spindle and arbor specifications. Always power down and lock out the grinder or machine before mounting or removing the wheel brush. Verify that the machine spindle speed does not exceed the 4,000 RPM maximum rated speed of the brush before operation. Inspect the brush for wire fatigue or uneven wear before each use and replace if deformation is detected.
