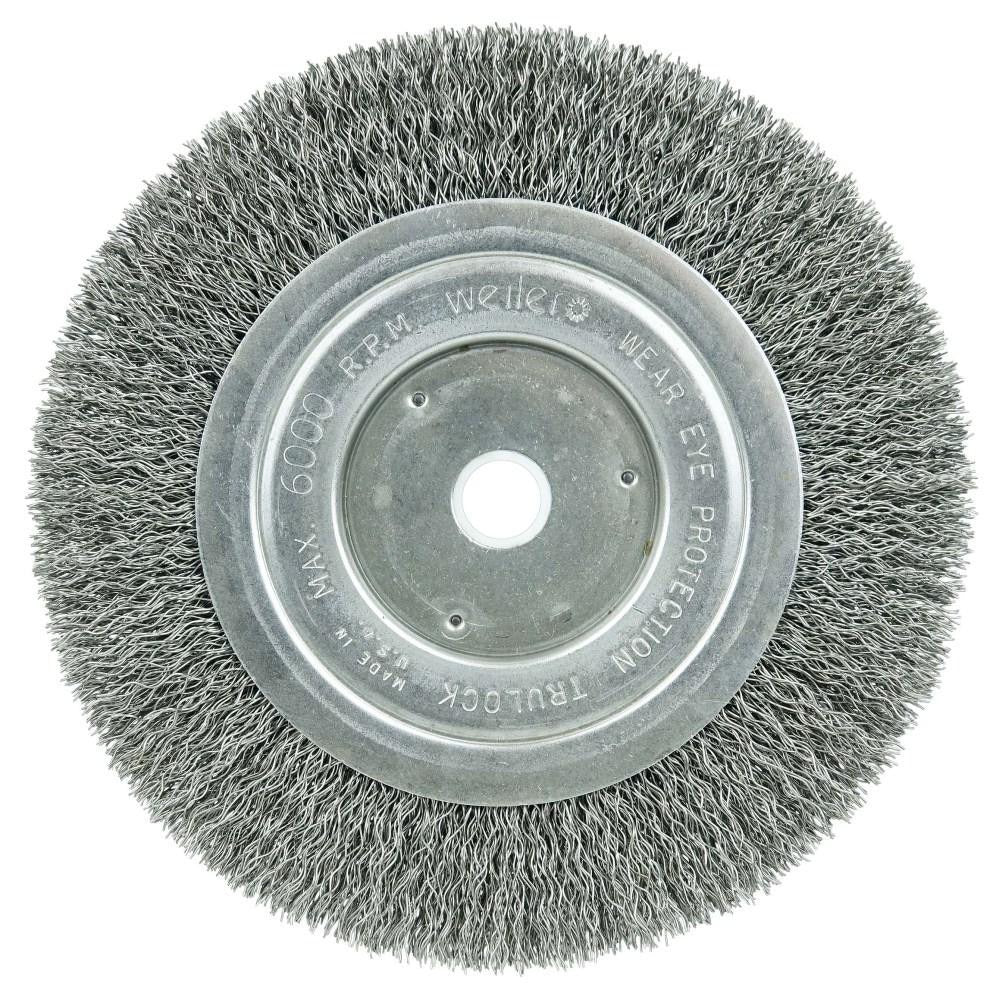

Weiler 01115 6 Inch Crimped Wheel Brush 6000 Rpm

Product Description

The WEILER 01115 is a 6-inch crimped wire wheel brush designed for surface preparation, deburring, cleaning, and finishing operations on metal workpieces. Mounted via an arbor hole, it installs on bench grinders, pedestal grinders, and straight grinders. The brush uses carbon steel fill wire with a filament diameter in the 0.0100 to 0.0199 inch range, delivering consistent, controlled abrasive action. Rated to 6,000 RPM, it handles demanding production environments without sacrificing brush integrity. The 1/2-inch face width and 1-1/16-inch trim length make it well suited for focused cleaning passes on flat and contoured surfaces.

This wheel brush is used across a range of industrial and shop applications including bench or pedestal grinding stations, straight grinders, CNC machines, and automatic machining setups. It is appropriate for milling operations requiring scale removal, weld cleanup, or surface conditioning. Typical users include machinists, fabricators, and maintenance technicians working in light to medium industrial environments. The arbor hole mount accommodates standard spindle configurations found on common bench and pedestal grinders.

Key Features

• 6-inch outside diameter for broad surface coverage on bench and pedestal grinders
• Crimped carbon steel wire fill for effective deburring and surface cleaning
• Filament wire diameter range of 0.0100 to 0.0199 inches for controlled abrasive action
• Rated to 6,000 RPM for use in production and automated machine environments
• 1/2-inch face width and 1-1/16-inch trim length for focused, consistent contact
• Arbor hole mount with 5/8-inch hole fits standard spindle configurations

Compatibility

Compatible with bench grinders, pedestal grinders, straight grinders, automatic machines, and CNC milling setups configured for a 6-inch arbor-mounted wheel brush with a 5/8-inch arbor hole.

Installation Notes

Installation should be performed by a qualified machinist or tool-and-die technician following the grinder or machine manufacturer's instructions. Power down and lock out the grinder before mounting or removing the brush. Verify that the machine's rated spindle speed does not exceed the 6,000 RPM maximum rating of the brush before operation. Always install the proper flanges and guards as required by applicable ANSI and OSHA standards for abrasive wheel accessories.
