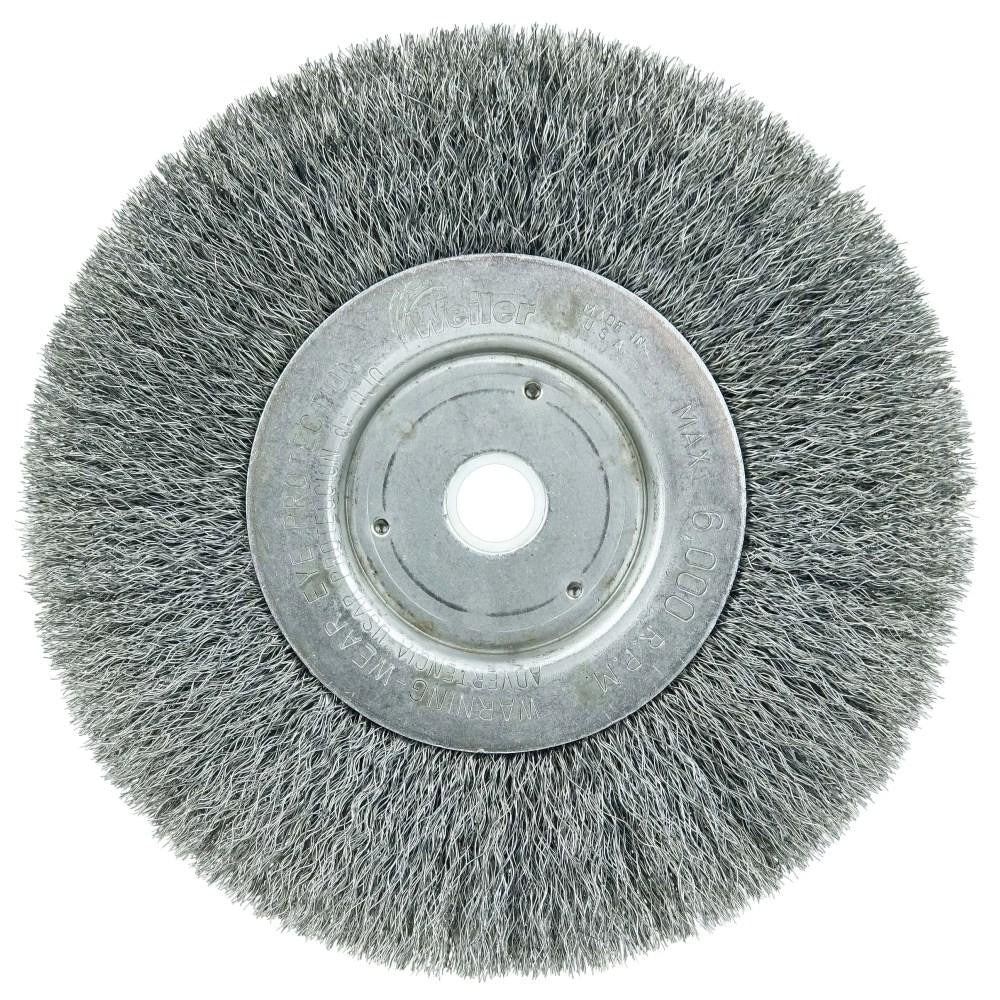

Weiler 01045 Wheel Brush 6 Inch Crimped Carbon Steel

Product Description

The WEILER 01045 is a 6-inch diameter crimped wire wheel brush designed for deburring, cleaning, and surface finishing on metal workpieces. It mounts via an arbor hole and is built with carbon steel fill material, making it suited for aggressive material removal on ferrous surfaces. The brush runs at a maximum of 6,000 RPM and features a 1/2-inch face width with a 1-7/16-inch trim length, giving it the lateral coverage needed for consistent contact across flat and contoured surfaces. Licensed trade machinists, tool room technicians, and fabrication professionals install and operate this type of brush in production and maintenance environments.

This wheel brush is rated for use on bench or pedestal grinders, straight grinders, automatic machines, and CNC or milling machines. The arbor hole mount style makes it compatible with standard spindle setups found on these machine types. It is well suited for weld cleanup, scale removal, rust removal, and general surface preparation on steel and iron parts in both production shop and maintenance contexts. No shank is included, and the brush is not encapsulated.

Key Features

• 6-inch outside diameter provides broad surface coverage for bench and pedestal grinder applications
• Crimped carbon steel wire fill delivers aggressive scrubbing action on ferrous metals
• Arbor hole mount style fits standard spindle configurations on bench grinders, straight grinders, and CNC machines
• 1/2-inch face width and 1-7/16-inch trim length suited for consistent contact on flat workpieces
• Rated to 6,000 RPM maximum for compatibility with common grinder speeds
• Filament wire diameter up to 0.0099 inches for effective deburring and scale removal

Compatibility

Designed for use on automatic machines, bench or pedestal grinders, CNC machines, milling machines, and straight grinders with standard arbor hole spindle configurations.

Installation Notes

Installation should be performed by qualified machine operators or maintenance technicians familiar with abrasive wheel mounting procedures. Always power down and lock out the machine before mounting or removing the brush. Confirm the machine spindle speed does not exceed the 6,000 RPM maximum rated speed of the brush before operation. Inspect the brush for damage before each use and follow applicable ANSI B11 or OSHA abrasive wheel safety standards.
