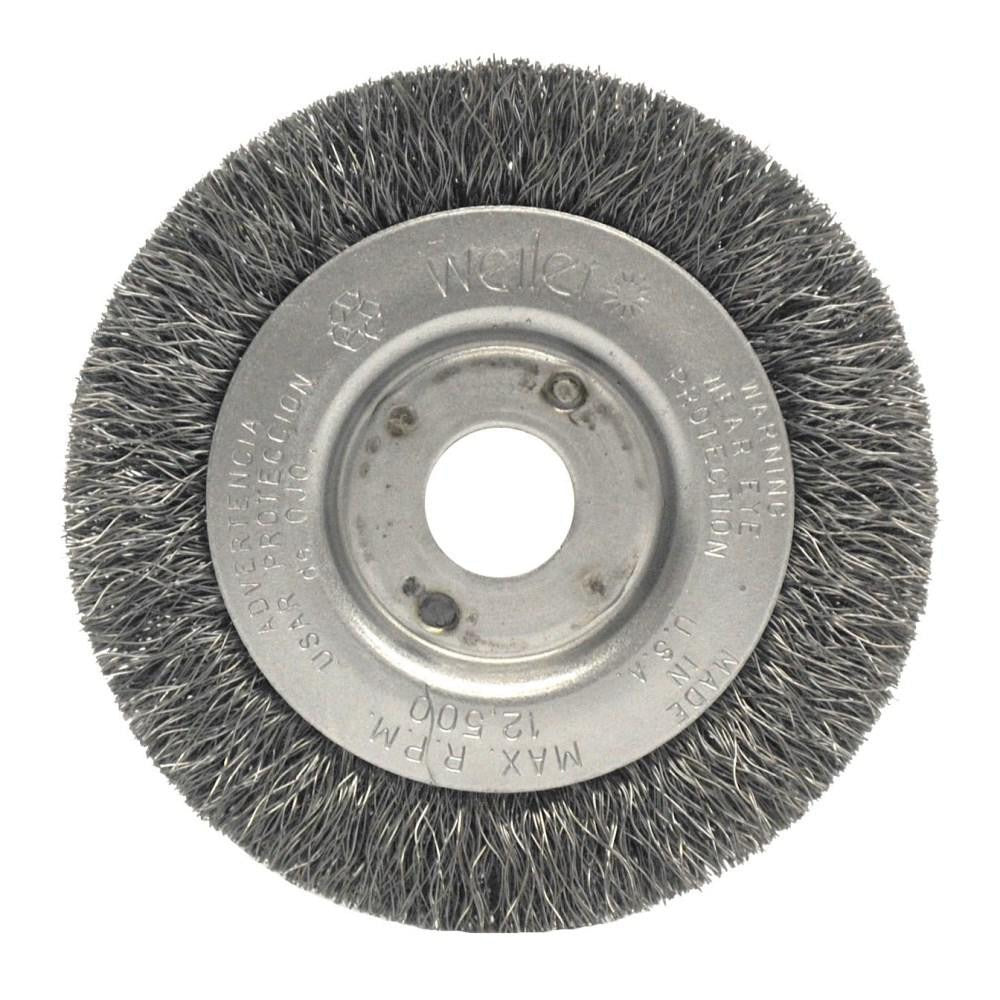

Weiler 00214 Wheel Brush 3 in Crimped Carbon Steel 12500 Rpm

Product Description

The WEILER 00214 is a 3-inch diameter wheel brush designed for deburring, surface conditioning, and cleaning metal workpieces on bench grinders, pedestal grinders, straight grinders, and CNC or automatic machines. It features crimped carbon steel wire filaments with a maximum diameter of 0.0099 inches, which flex on contact to conform to irregular surfaces without removing base material aggressively. The arbor hole mount measures 0.5 inches and accepts standard spindle arbors. The brush is rated to 12,500 RPM, making it suitable for high-speed stationary and handheld power tool applications. A 0.4375-inch face width and 0.5-inch trim length complete the working geometry.

This wheel brush is used in light industrial and production environments where consistent surface prep is required. Typical applications include weld spatter removal, rust and scale cleaning, edge deburring, and pre-paint surface conditioning on ferrous metals. It is suited for installation on bench or pedestal grinders, milling setups, straight grinders, and automatic or CNC machining lines where arbor-mounted abrasive tooling is standard.

Key Features

• 3-inch outside diameter for use on standard bench and pedestal grinders
• Crimped carbon steel wire filaments for flexible, controlled surface action
• 12,500 RPM maximum speed rating for high-speed power tool compatibility
• Arbor hole mount — 0.5-inch hole diameter fits common spindle arbors
• 0.4375-inch face width with 0.5-inch trim length for precise brush contact
• Compatible with automatic machines, CNC machines, milling, and straight grinder setups

Compatibility

Designed as an arbor-hole-mounted wheel brush for use on bench grinders, pedestal grinders, straight grinders, automatic machines, CNC machines, and milling setups where a 3-inch diameter crimped wire brush is specified.

Installation Notes

Installation is typically performed by a machinist or maintenance technician. Always power down and lock out the grinder or machine before mounting or removing the brush. Confirm the machine spindle speed does not exceed 12,500 RPM before operation. Inspect the arbor, flanges, and brush for damage before each use, and wear appropriate eye and face protection whenever the brush is in operation.
