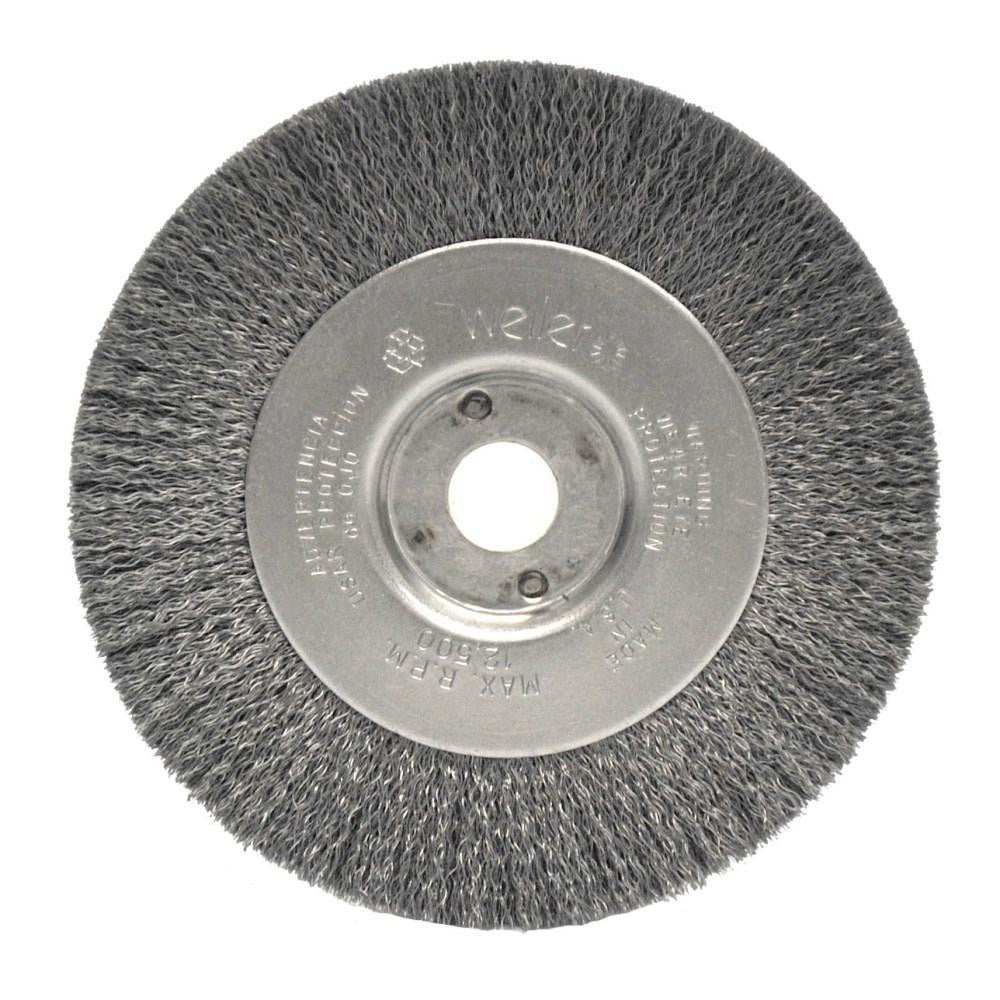

Weiler 00134 Wheel Brush 4 Inch Crimped Carbon Steel

Product Description

The WEILER 00134 is a 4-inch diameter wheel brush designed for aggressive surface conditioning, deburring, and cleaning on metal workpieces. It mounts via an arbor hole and uses crimped carbon steel fill wire in the 0.010 to 0.019 inch diameter range, delivering consistent, flexible contact across irregular surfaces. Rated to 12,500 RPM, this brush is built for use on bench or pedestal grinders, straight grinders, and automated machining equipment including CNC and milling machines. The 7/8-inch trim length and 1/2-inch face width make it suited to detail work and edge finishing where controlled abrasion is required. A shank is not included; an appropriate arbor or mandrel must be used.

This wheel brush is commonly used in metal fabrication shops, maintenance environments, and manufacturing cells where parts require scale removal, weld spatter cleanup, rust removal, or surface prep before coating. It is compatible with bench grinders, pedestal grinders, straight grinders, and automatic or CNC machines that accept a standard arbor-hole-mount brush. The crimped wire construction is preferred where a finer surface finish is desired compared to knotted wire alternatives.

Key Features

• 4-inch outside diameter with 1/2-inch face width for targeted surface contact
• Crimped carbon steel wire for flexible, consistent abrasive action
• Rated to 12,500 RPM for use on standard grinders and automated machines
• Arbor hole mount — compatible with bench, pedestal, straight, and CNC equipment
• 7/8-inch trim length provides appropriate wire extension for deburring and cleaning tasks
• No shank included — mounts directly via arbor hole to existing spindle or mandrel

Compatibility

Suitable for use on automatic machines, bench or pedestal grinders, CNC machines, milling equipment, and straight grinders where an arbor hole mount wheel brush is specified.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive tool safety. Always power down and de-energize the grinder or machine before mounting or removing the brush. Verify that the machine spindle speed does not exceed the 12,500 RPM maximum rating of the brush before operation. Ensure the arbor, flanges, and guards are in good condition and comply with applicable ANSI abrasive safety standards before running the tool.
