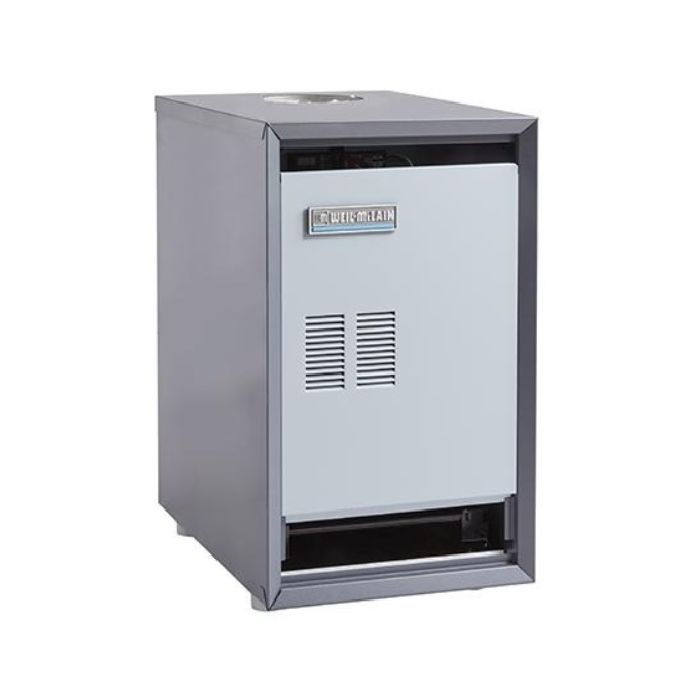

Weil-mclain 672619215023 Cga-7 Packaged Atmospheric Natural Gas Water Boiler 200000 Btu 84% Afue Series 3 with Taco 007e Circulating Pump 381-359-080

Product Description

The WEIL-MCLAIN 672619215023 CGa-7 Packaged Atmospheric Natural Gas Water Boiler is a high-capacity heating unit built for residential and light commercial hydronic heating systems. Rated at 200,000 BTU input and 84% AFUE, this cast iron sectional boiler delivers reliable, efficient heat output for demanding applications. It ships as a complete packaged unit and includes a Taco 007e circulating pump, making it a ready-to-install solution for HVAC technicians and plumbing contractors. This is a Series 3 unit in the CGa line, which is known for durability and ease of service in the field. The natural draft, atmospheric design means no power venting is required, simplifying installation in a wide range of mechanical room configurations. Stainless steel burners provide quieter ignition, improved combustion efficiency, and a longer service life compared to standard burners. The cast iron sectional construction retains heat well and resists corrosion over years of continuous operation. A built-in low water cut off function protects the boiler from damage caused by low water conditions, reducing the risk of costly repairs. Controls are easily accessible, and the vertical flueways support top cleaning, so routine maintenance and annual servicing can be completed quickly. The compact footprint helps conserve mechanical room space without sacrificing heating capacity. This boiler is compatible with natural gas supply lines and is designed for forced hot water hydronic heating systems. It is well suited for replacement boiler installations or new construction projects where high BTU output, long service life, and straightforward serviceability are top priorities. HVAC technicians and hydronic heating specialists will appreciate the combination of proven cast iron performance and a full packaged configuration that reduces installation time on the job site.

• 200,000 BTU input with 84% AFUE for efficient natural gas hydronic heating
• Cast iron sectional construction with stainless steel burners for long service life and quiet operation
• Packaged unit includes Taco 007e circulating pump with built-in low water cut off protection

Product Highlights

The Weil-McLain CGa-7 Series 3 packaged boiler combines cast iron durability with an 84% AFUE rating and a complete pump package, giving HVAC professionals a reliable, field-ready hydronic heating solution at 200,000 BTU input capacity.

Product Information

Standard Information

• Brand: WEIL-MCLAIN
• Manufacturer Part Number: 672619215023

Technical Specifications

• Series: CGa Series 3
• Item Type: Boiler
• BTU Input: 200,000
• AFUE: 84%
• Tank Capacity: 3.8 gallons
• Vent Size: 7 inches
• Height: 60.125 inches
• Length: 22 inches
• Width: 23.25 inches
• Weight: 370 pounds
• Fuel Type: Natural Gas
• Circulating Pump: Taco 007e
• Draft Type: Atmospheric Natural Draft
• Section Material: Cast Iron
• Burner Material: Stainless Steel
