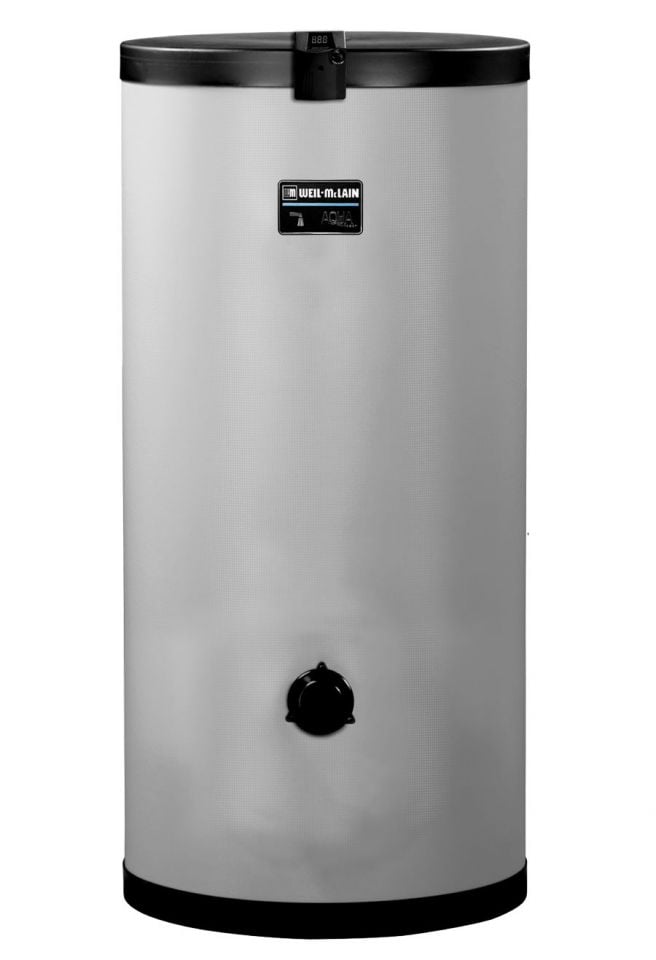

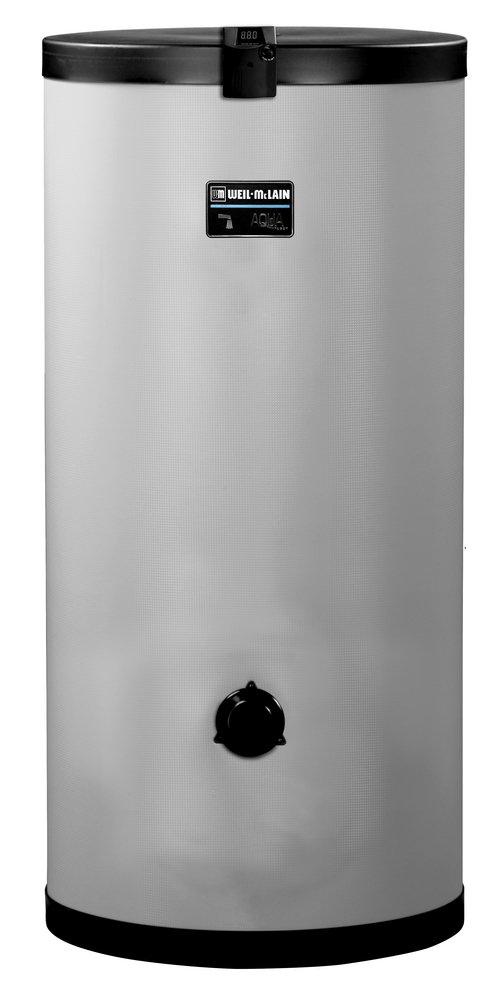

Weil-Mclain 633600004 Aqua Plus 105 Gallon Residential Indirect Water Heater

Product Description

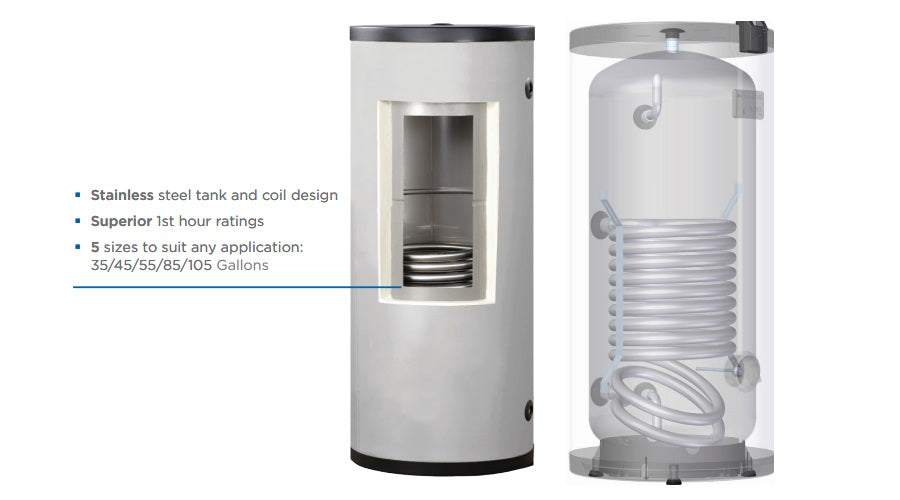

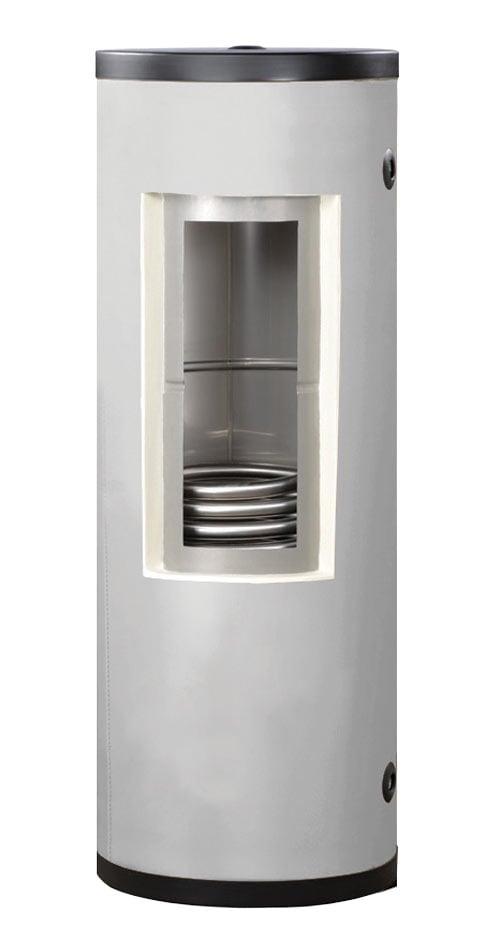

The Weil-Mclain 633600004 Aqua Plus 105 is designed to leverage boiler power and efficiency for domestic hot water. This residential indirect water heater features consolidated connection points and adjustable leg heights for ease of installation. The stainless steel heat exchanger and storage tank resist corrosion, ensuring lasting performance. It also features a digital thermostat for precise accuracy.

• Features a stainless steel heat exchanger and storage tank for corrosion resistance.
• Equipped with two inches of dense foam insulation to minimize heat loss.
• Includes a digital thermostat for precise temperature control.

Product Highlights

The Aqua Plus 105 is a residential indirect water heater with a stainless steel tank and digital thermostat, designed for efficient and reliable hot water supply.

Product Information

Standard Information

• Brand: WEIL-MCLAIN
• Manufacturer Part Number: 633600004

Technical Specifications

• Tank Size: 110.9
• Type: Indirect Water Heater
• Medium: Hot Water
• Capacity: 110.9 Gallons
• Fuel Type: Indirect Fired
• Application: Residential
• Product Line: Aqua Plus
• Storage Type: Tank
• Coils Quantity: 1
• Connection Type: NPT
• Product Category: Water Heater - Indirect-Fired
• AHRI Certified: Yes
• AHRI Reference Number: 10358740
• First Hour Delivery: 448 Gallons
• Continuous Recovery Rate: 376 Gallons
• Product Depth: 30 Inches
• Product Width: 30 Inches
• Product Height: 59.75 Inches
• Cold Water Inlet: 1 Inch
• Hot Water Outlet: 1 Inch
• Return Connection: 1 Inch
• Supply Connection: 1 Inch
• Applicable Standard: CSA (Canada and US), NSF/ANSI 372, AHRI
• Boiler Supply Return Connection: 1 Inch Threaded x 1 Inch Threaded
• Flow Rate: 14 GPM
• GPH Recovery: 715 GPH at 115 Deg F, 483 GPH at 140 Deg F
• Gross Boiler Output: 350 MBH at 200 Deg F
• Head Loss: 7.1 Foot
• Heat Exchanger Coil Type: 1 Inch Diameter 304 Stainless Steel
• Heat Exchanger Mounting Type: Side Mount
• Inlet Outlet Connection: 1 Inch Threaded x 1 Inch Threaded
• Insulation Details: 2 Inch Non-CFC Foam
• Options: 180 Deg F Thermostat
• Pressure Rating: 150 PSI (Tank), 145 PSI (Coil)
• Tank Capacity: 105 Gallon
• Tank Dimensions: 30 Inch Diameter x 59-3/4 Inch Height
• Tank Material: 316L Stainless Steel
• Material: 316L Stainless Steel
• Diameter: 30 in
• End Connections: NPT
• First Hour Rating: 448
• Height: 59-3/4 in
• Power Source: Indirect
• Pressure - Maximum: 150 psi
• Weight: 238 lb
• Water Heater Type: Indirect Fired
• Gallons: 110.9
• Manufacturer: Weil McLain
• Product Type: Indirect Water Heater
