Product Description

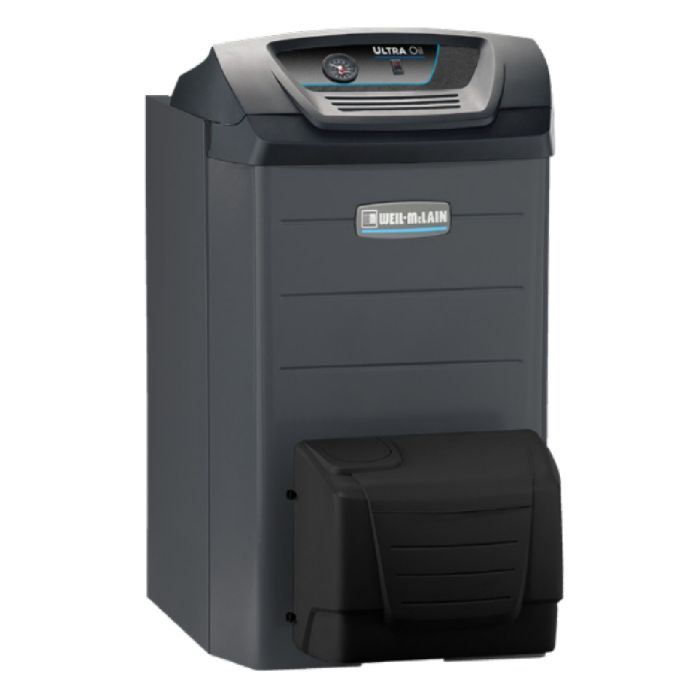

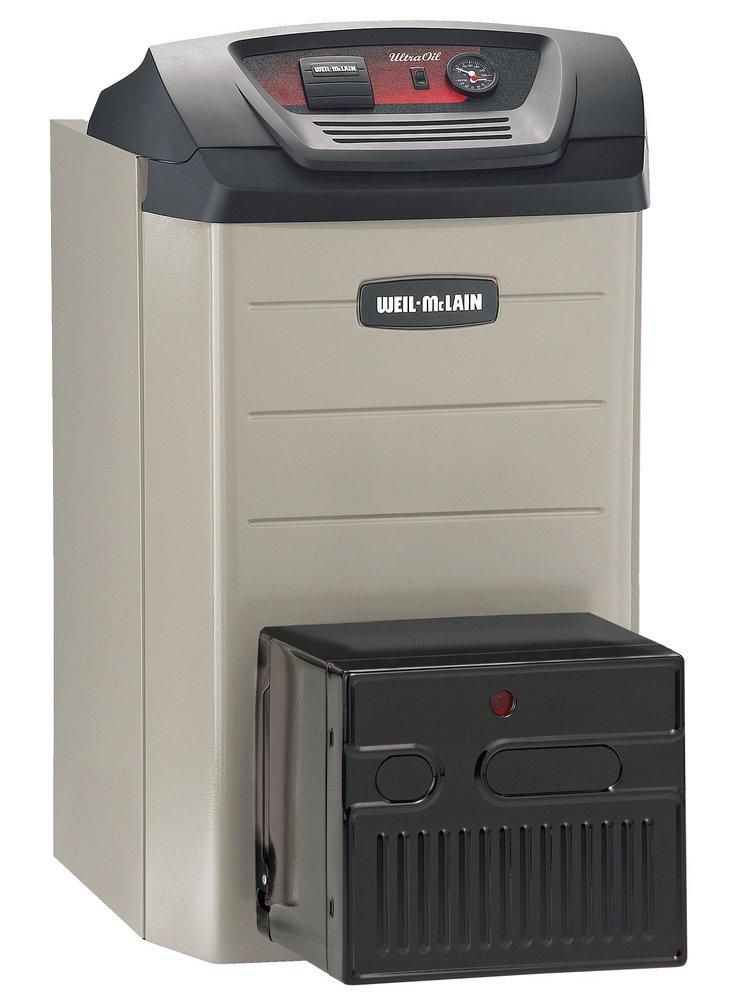

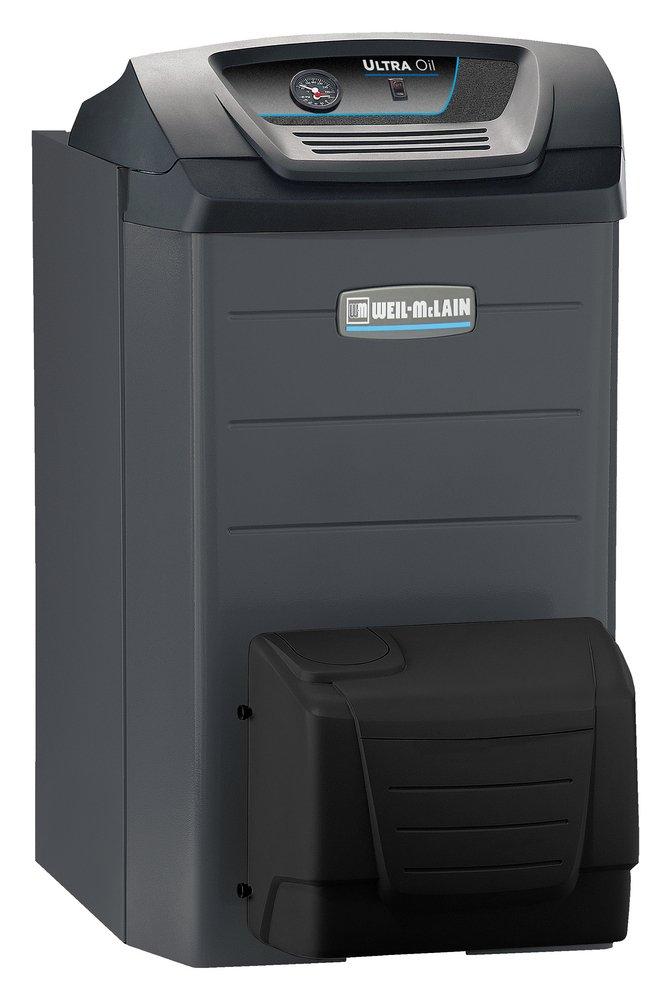

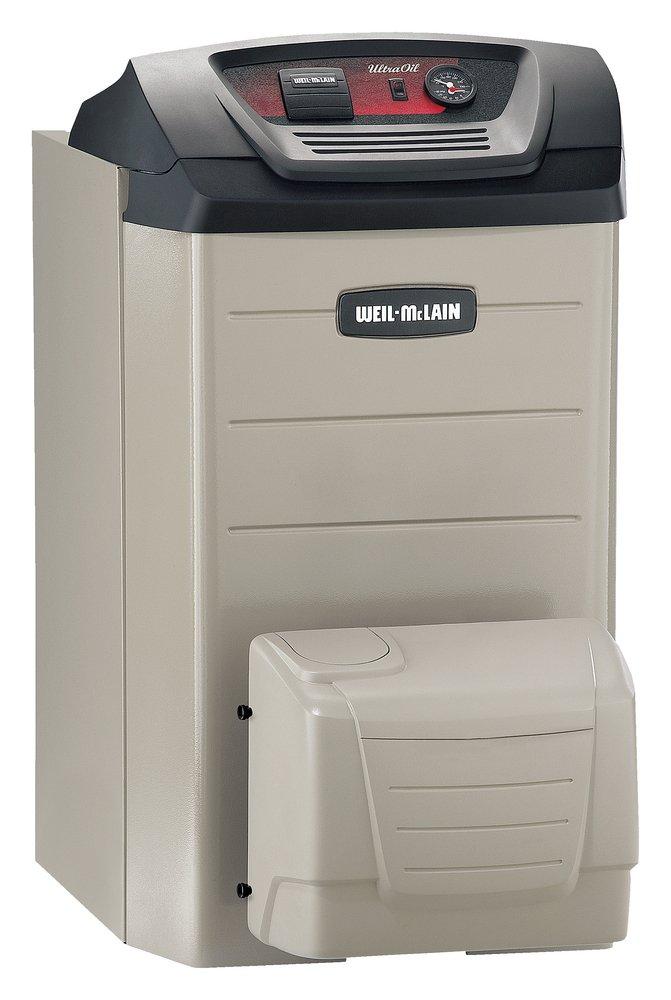

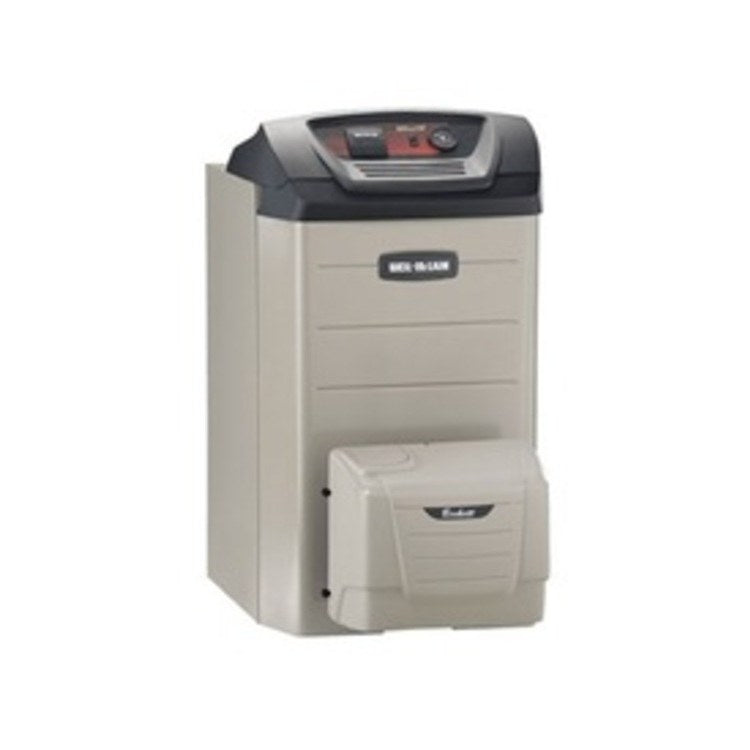

The Weil-Mclain 386901007 UO-4 Ultra oil boiler has a reputation for reliable boiler design. This hot water boiler is efficient and durable. The Ultra reuses heat that escapes from conventional boilers, increasing efficiency. When equipped with the optional Weil-McLain Advanced Features Module (AFM), the Ultra is user-friendly.
- Modern appearance allows placement in high traffic living spaces and provides easy serviceability.
- Swing-away door provides simplified inspection, cleaning, and maintenance.
- Three pass design provides better flame control and efficient fuel utilization.
Product Highlights
The Weil-McLain Ultra Oil boiler features a reversible swing-away door, concealed controls, and venting flexibility. It can be vented to an existing chimney or direct vented using the pre-packaged termination and combustion air kit.
Product Information
Standard Information
-
Brand: WEIL-MCLAIN
-
Manufacturer Part Number: 386901007
-
Country of Origin: USA
Technical Specifications
-
AFUE: 87 %
-
Phase: 1
-
Input Rate: 1.2 GPH
-
Product Depth: 29 Inches
-
Product Width: 22 1/16 Inches
-
CSA Listed: Yes
-
Product Height: 40 Inches
-
Frequency: 60 Hz
-
Product Category: Boiler
-
Medium: Hot Water
-
Return Connection: 1 1/2 Inches
-
Supply Connection: 1 1/2 Inches
-
AHRI Certified: Yes
-
ASME Certified: Yes
-
Fuel Type: Oil-Fired
-
Vent Type: Chimney Vent
-
Mount Type: Floor
-
Net I=B=R Capacity: 129000 BTU
-
Flue Connection Size: 6 Inches
-
Burner Model: Sold Separately
-
Product Line: UO
-
DOE Heating Capacity: 148000 BTU
-
Energy Star Listed: Yes
-
Assembly Type: Packaged
-
Includes Pump: Yes
-
Combustion Type: Conventional
-
AHRI Reference Number: 7434750
-
Modulating/Staging: Staging
-
Heat Exchanger Material: Cast Iron
-
Additional Information: Application Residential, Light Commercial, Radiant Heating, Indirect Fired Water Heating
-
Applicable Standard: CSA (Canada and US), ASME, AHRI, DOE
-
Boiler Dimensions: 29 Inch Length x 22-1/16 Inch Width x 40 Inch Height
-
Boiler Material: Cast Iron (Heat Exchanger)
-
Brand Name: ULTRA OIL
-
Burner Type: Reversible Swing Away
-
Catalog Number: 386901007
-
Customer UPC: 67261920401
-
Firing Rate: 1.2 GPH
-
Inclusions Features: Captured Elastomer Seal, Reversible Swing Away Burner Door, Silicone Coated Fiberglass Sealing Rope, Boiler Drain Valve, 30 PSI Relief Valve, Attractive Jacket Design, Hinged Control Pod, Service Switch, Temperature/Pressure Gauge, Factory Wired Terminal Strip with Labeled Wire Combination Limit and Low Water Cut-Off, Quick Disconnect Burner Plug, Barometric Damper, Circulator
-
Manufacturer Name: Weil-McLain
-
Manufacturer Part Number: UO-4
-
Options: Beckett, Direct Vent Kit, 50 PSI Relief Valve
-
Pressure Rating: 150 PSIG (Oil Pump)
-
Relief Valve Details: Installed
-
Water Content: 18.3 Gallon
-
Sections: 4
-
Efficiency: 87%
-
BTU: 168K BTU
-
Venting: Chimney
-
Vent Size (Inches): 8 x 8
-
Item Type: Boiler
-
BTU Input: 127,000
-
Material: Cast Iron
-
Boiler Type: Residential
-
Venting Type: Chimney Vent, Direct Vent
-
Input (MBH): 168 MBH
-
Installation Type: Floor Mount
-
Length: 29 in
-
MBH: 168
-
Return Pipe Connection: 1-1/2 in
-
Supply Pipe Connection Size: 1-1/2 in
-
UL Listed: Yes
-
Volts: 120V
