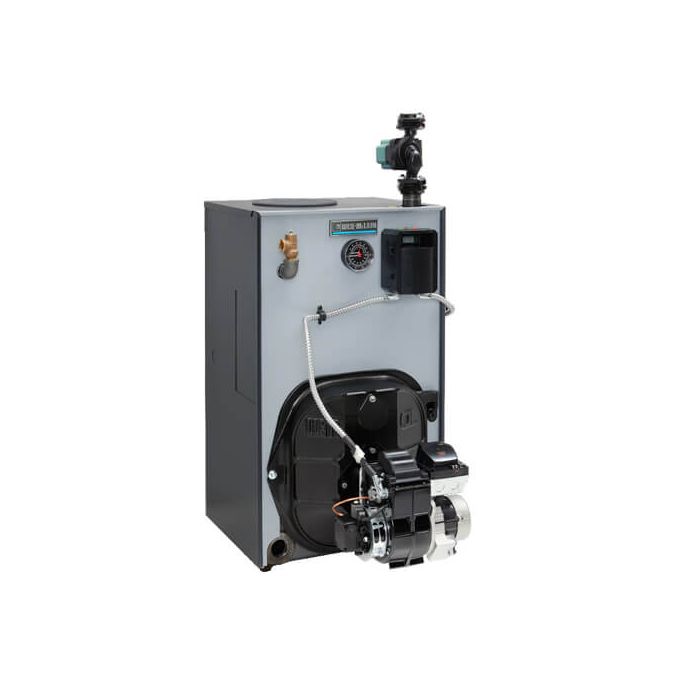

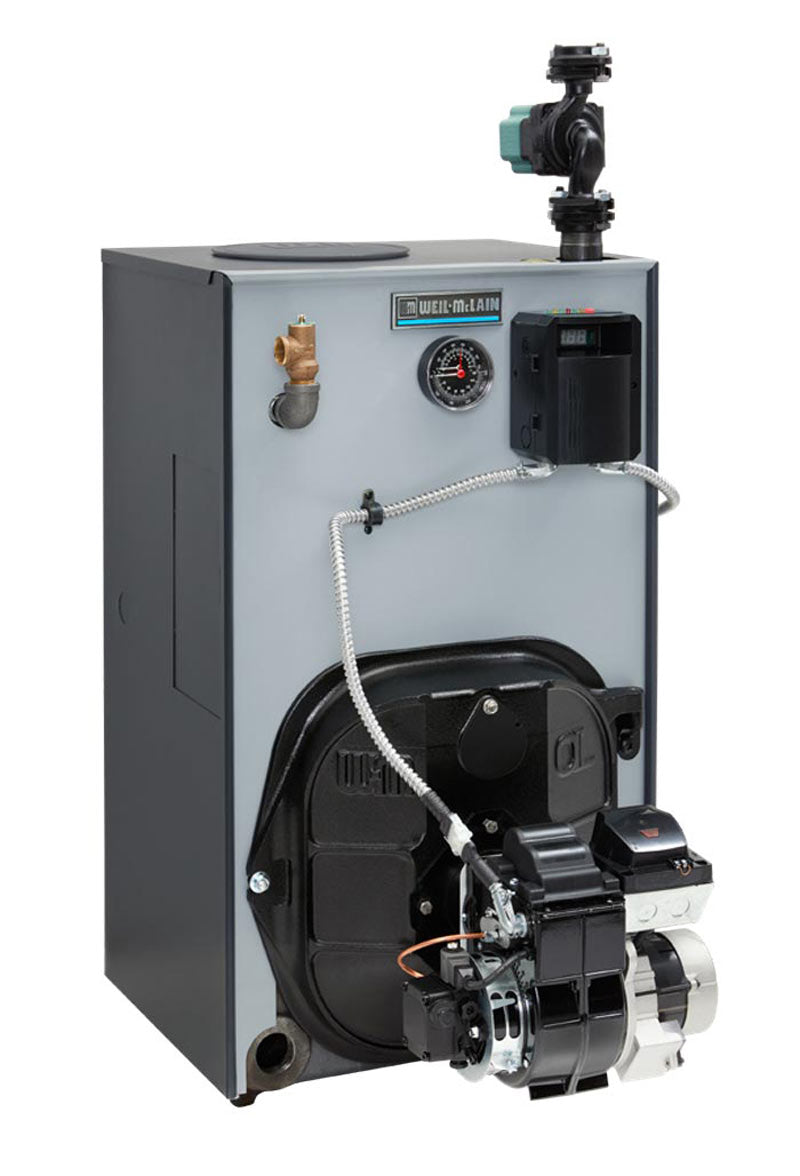

Weil-Mclain 386701029 WTGO-4 140,000 BTU Oil Fired Boiler with Taco 007e Circulator

Product Description

The Weil-Mclain 386701029 WTGO-4 is a flexible and durable oil-fired boiler with a tankless coil for water heating. The WTGO excels as a replacement boiler and as an addition to new construction. It features high efficiency, durable construction, and flexibility. This boiler does not include an oil burner.

• Simple to service with a swing-away burner door and a quick-open top panel for accessibility.
• Silicone-coated fiber ropes are used for sealing the boiler sections, expanding and contracting to keep the unit watertight.
• Features two vent connections, one on the rear and one on the top, for a variety of installation conditions.

Product Highlights

The Weil-McLain WTGO-4 boiler provides lasting heating solutions with its efficient design, durable construction, and flexible venting options.

Product Information

Standard Information

• Brand: WEIL-MCLAIN
• Manufacturer Part Number: 386701029
• Country of Origin: United States

Technical Specifications

• AFUE: 86.2%
• Input Rate: 1.0 GPH
• Product Depth: 16 7/8 Inches
• Product Width: 20 1/4 Inches
• Phase: 1
• CSA Listed: Yes
• Product Height: 35 5/8 Inches
• Frequency: 60 Hz
• Medium: Hot Water
• Return Connection: 1 1/2 Inches
• Supply Connection: 1 1/4 Inches
• AHRI Certified: Yes
• ASME Certified: Yes
• Fuel Type: Oil-Fired
• Vent Type: Chimney Vent
• Mount Type: Floor
• Net I=B=R Capacity: 127000 BTU
• Flue Connection Size: 6 Inches
• Country of Origin: United States
• Burner Model: Sold Separately
• Product Line: WTGO
• DOE Heating Capacity: 146000 BTU
• Energy Star Listed: Yes
• Assembly Type: Packaged
• Includes Pump: Yes
• DHW Production: Yes
• Combustion Type: Conventional
• Storage Volume (Gallons): 7.6
• AHRI Reference Number: 2101618
• Maximum Altitude: 2000 Feet
• Modulating/Staging: Staging
• Heat Exchanger Material: Cast Iron
• BTU Input: 140,000
• Efficiency: 86.2%
• IBR Rating: 106000
• System Type: Hydronic (Water)
• Vent Size: 7"
• Height (Inches): 35-5/8"
• Width (Inches): 20-1/4"
• Depth (Inches): 15-1/2"
• Weight (lbs): 660 lbs
• MPN: 386-701-029
• Manufacturer: Weil-McLain
• Series: WTGO Series 4
• Item Type: Boiler
• Material: Cast Iron
• Boiler Type: Residential
• Venting: Chimney Vent
• Length (Inches): 16-7/8"
