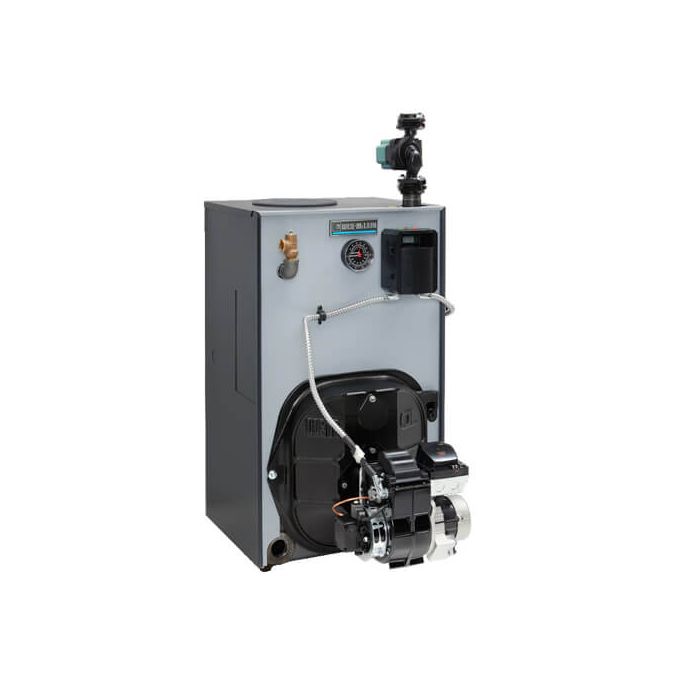

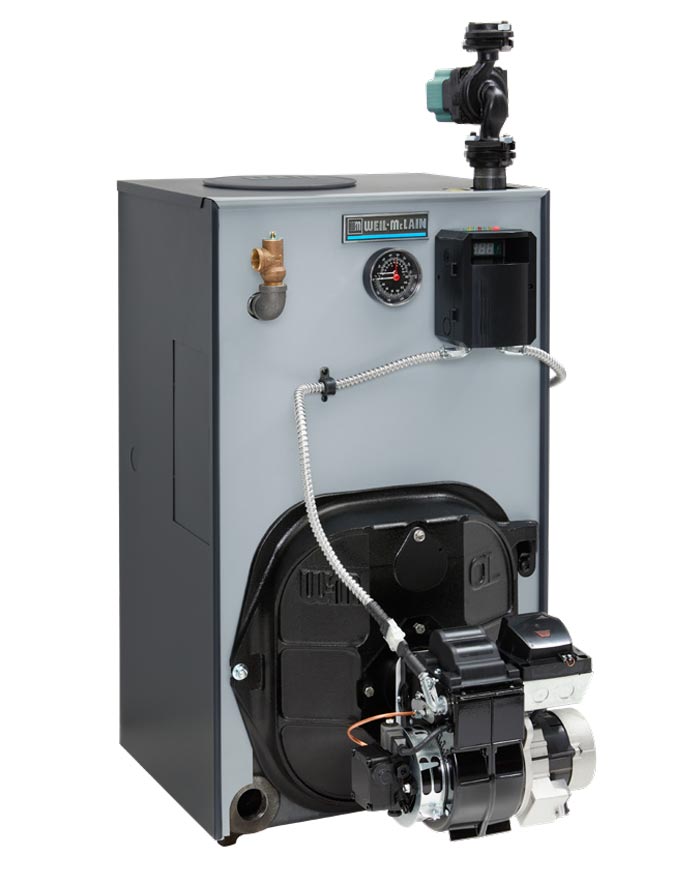

Weil-Mclain 386701015 WGO-5 147K BTU Hot Water Oil Boiler with Taco 007 Circulator

Product Description

The Weil-McLain 386701015 WGO-5 is a flexible and durable oil-fired heating solution for hot water systems. Designed for efficient energy use, this boiler features cast-iron sections for longevity. It is simple to service with a swing-away burner door and quick-open top panel. An extended, insulated steel jacket prevents heat from escaping and improves efficiency.

• Flexible, durable, oil-fired heating solution for hot water systems
• Efficient energy use
• Cast-iron boiler sections

Product Highlights

This boiler is designed for efficient energy use and lasting performance, suitable for both replacement and new construction applications.

Product Information

Standard Information

• Brand: WEIL-MCLAIN
• Manufacturer Part Number: 386701015
• Country of Origin: United States

Technical Specifications

• AFUE: 86.1 %
• Phase: 1
• Product Depth: 20 Inches
• Product Width: 20 1/4 Inches
• CSA Listed: Yes
• Product Height: 35 5/8 Inches
• Frequency: 60 Hz
• Product Category: Boiler
• Medium: Hot Water
• Return Connection: 1 1/2 Inches
• Supply Connection: 1 1/4 Inches
• AHRI Certified: Yes
• ASME Certified: Yes
• Fuel Type: Oil
• Vent Type: Chimney Vent
• Mount Type: Floor
• Net I=B=R Capacity: 128000 BTU
• Flue Connection Size: 7 Inches
• Country of Origin: United States
• Burner Model: Sold Separately
• Product Line: WGO
• DOE Heating Capacity: 147000 BTU
• Energy Star Listed: Yes
• Assembly Type: Packaged
• Includes Pump: Yes
• DHW Production: No
• Combustion Type: Conventional
• AHRI Reference Number: 2101626
• Maximum Altitude: 2000 Feet
• Modulating/Staging: Staging
• Heat Exchanger Material: Cast Iron
• Input Rate: 1.2 GPH
• MPN: 386-701-015
• Manufacturer: Weil-McLain
• Series: WGO Series 4
• Item Type: Boiler
• BTU Input: 168,000
• Height (Inches): 35-5/8"
• Length (Inches): 20"
• Width (Inches): 20-1/4"
