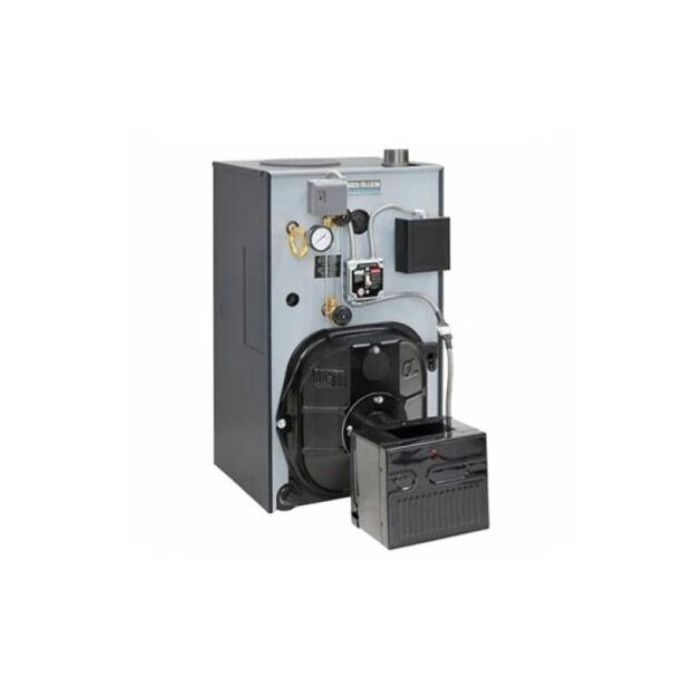

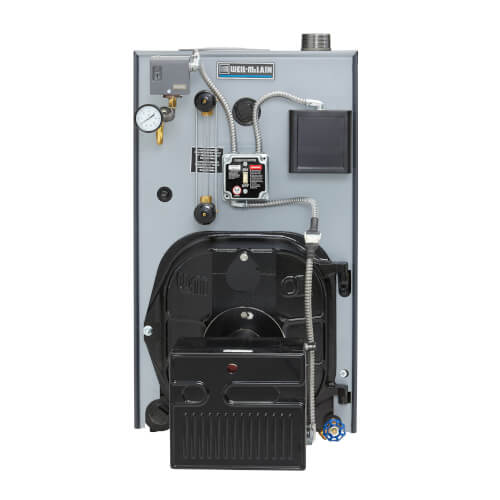

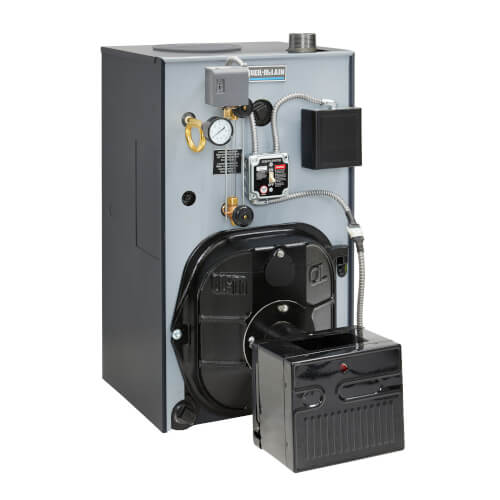

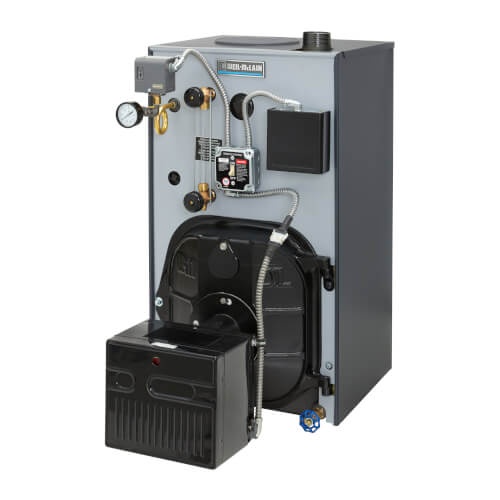

Weil-Mclain 386701001 p-sgo-4 steam oil boiler 108k btu chimney vent burner sold separately

Product Description

The Weil-McLain 386701001 P-SGO-4 is a flexible and durable oil-fired heating solution for steam systems. Designed for efficient energy use, this boiler features cast-iron sections for longevity. It excels as a replacement boiler and as an addition to new construction. Note: Oil burner sold separately.

• Simple to Service
• Captured Seals
• Venting Flexibility
• Efficiency-Boosting Insulation

Product Highlights

High efficiency, durable construction, and flexibility make the SGO an excellent choice for various applications.

Product Information

Standard Information

• Brand: WEIL-MCLAIN
• Manufacturer Part Number: 386701001
• Country of Origin: United States

Technical Specifications

• AFUE: 85 %
• Phase: 1
• Input Rate: 1.2 GPH
• Product Depth: 20 Inches
• Product Width: 20 1/4 Inches
• CSA Listed: Yes
• Product Height: 35 5/8 Inches
• Frequency: 60 Hz
• Product Category: Boiler
• Medium: Steam
• Return Connection: 2 Inches
• Supply Connection: 2 1/2 Inches
• Fuel Type: Oil
• Vent Type: Chimney Vent
• Mount Type: Floor
• Net I=B=R Capacity: 108000 BTU
• Flue Connection Size: 6 Inches
• Country of Origin: United States
• Burner Model: Sold Separately
• Product Line: SGO
• DOE Heating Capacity: 144000 BTU
• Assembly Type: Packaged
• Includes Pump: No
• DHW Production: Available
• Combustion Type: Conventional
• Maximum Altitude: 2000 Feet
• Modulating/Staging: Staging
• Heat Exchanger Material: Cast Iron
• BTU Input: 133000
• DOE Rating: 114000
• Efficiency: 85%
• IBR Rating: 86000
• System Type: Steam
• Vent Size: 7"
