Weil-Mclain 386700656 Section Assembly 231 MBH (WGO-8 8-Section) 386700416

Product Description

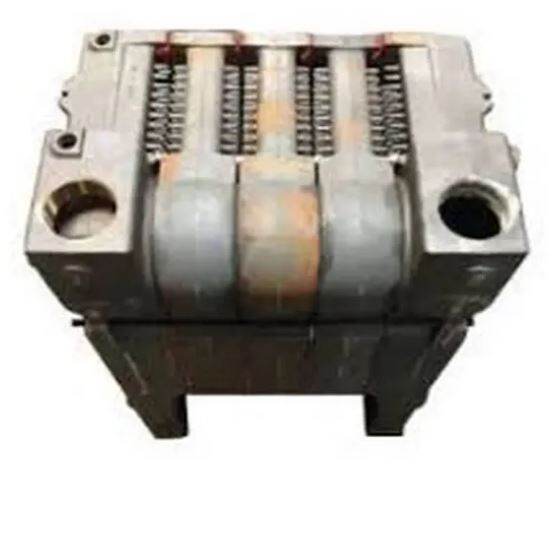

Weil-Mclain 386700656 is a replacement section assembly with jacket for WGO series boilers, configured as the WGO-8 non-packaged eight-section assembly. It is rated 231 MBH net IBR, features 1-1/2 inch supply and return connections, and a 7-inch flue collar that can be field converted to 8 inches. The assembly is for oil-fired systems, lists 115 V, and is supplied less burner.

• 231 MBH net IBR capacity for WGO-8 non-packaged eight-section boilers
• 1-1/2 inch supply and return; 7-inch flue collar field convertible to 8 inches
• Designed for oil-fired systems; voltage listed as 115 V; supplied less burner and compatible with Beckett oil burners

Product Highlights

Replacement section assembly for Weil-McLain WGO-8 boilers with 231 MBH output, 1-1/2 in supply/return, and convertible 7 in flue collar.

Product Information

Standard Information

• Brand: WEIL-MCLAIN
• Manufacturer Part Number: 386700656

Technical Specifications

• Brand: Weil-Mclain
• Manufacturer: Weil-Mclain
• Manufacturer Part Number: 386700656
• Alternate Manufacturer Part Number: 386-700-656
• Suitable For Use With: WGO series boiler (WGO-8 non-packaged 8-section assembly)
• Net Output: 231 MBH (net IBR)
• Supply and Return Size: 1-1/2 inch
• Flue Collar: 7 inch (field convertible to 8 inch)
• Fuel Type: Oil
• Voltage: 115 V
• Includes: Replacement section assembly with jacket (supplied less burner)
• Compatible Burner: Beckett oil burner (reference 386700416)
• UPC: 672619129306
• Package Quantity: 1
