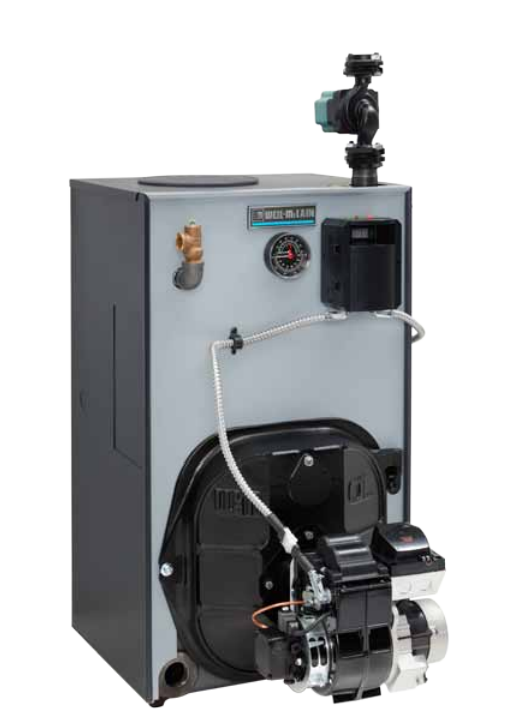

Weil-Mclain 386-701-020 WGO-5 Packaged Oil Water Boiler

Product Description

The Weil-McLain 386-701-020 WGO-5 is a dependable oil water boiler designed for effective heating in residential properties. This boiler features durable cast iron construction and efficient controls to ensure optimal operation and energy savings. It is suitable for water-only systems and provides multiple venting options with rear and top flue outlets.

• BTU input of 203,000 and output of 176,000
• Minimum chimney requirement of seven inch diameter by fifteen feet high
• Includes a swing-away burner door for easy access

Product Highlights

The Weil-McLain WGO-5 offers reliable performance with a focus on user-friendly operation.

Product Information

Standard Information

• Fuel Type: Oil
• Type: Water

Technical Specifications

• Heat Exchanger Material: Cast Iron
• BTU Input: 203,000
• BTU Output: 176,000
• Annual Fuel Usage Efficiency (AFUE): 86.0
• Domestic Hot Water: No
• Vent Type: Atmospheric Vent
• Building Type: Residential
• Length: 34 inches
• Width: 20.25 inches
• Height: 35.675 inches
• Vent Material: Galvanized
• Supply: Female Iron Pipe 1.5 inches
• Return: Female Iron Pipe 1.5 inches
• Vent Size: 7 inches
• Water Content: 15.9 gallons
