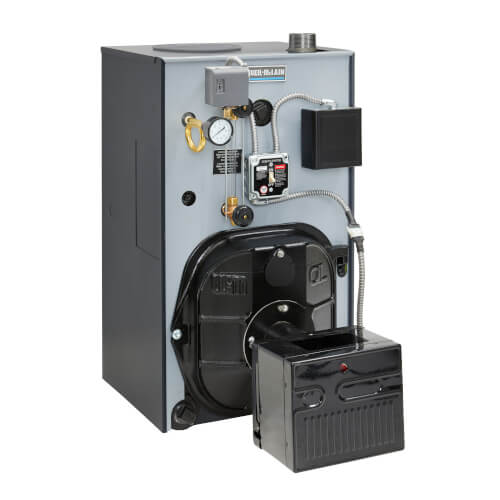

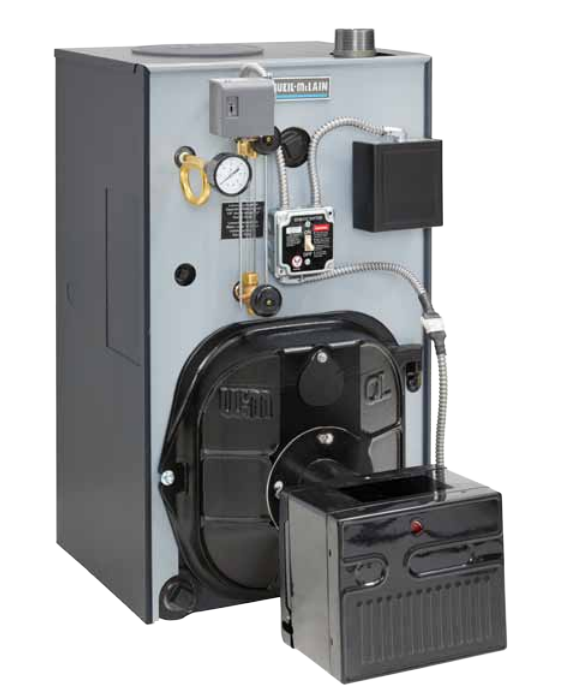

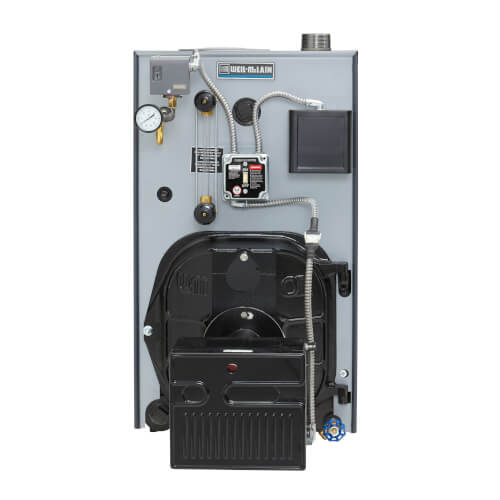

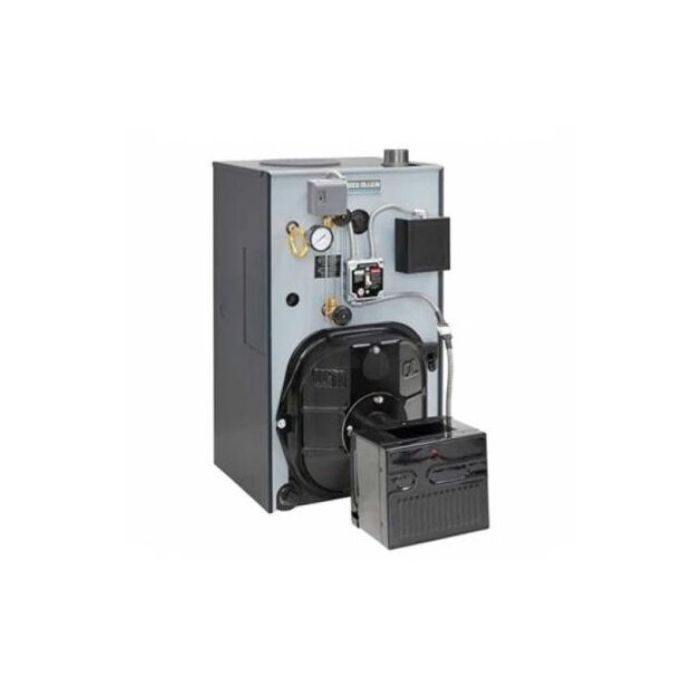

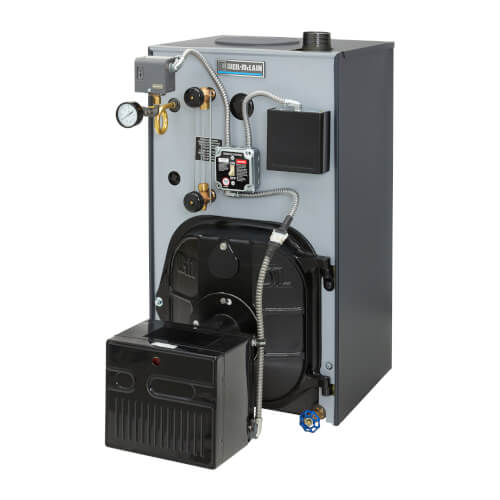

Weil-Mclain 386-701-000 SGO-3 - 86,000 BTU Output Cast Iron Packaged Steam Oil Boiler w/ LWCO - Series 4

Product Description

The Weil-Mclain 386-701-000 SGO-3 is a cast iron steam oil boiler with an output of eighty-six thousand BTUs. It is designed for residential use and light commercial applications. This boiler has a factory-tested cast iron section assembly for reliable performance. The insulated steel jacket helps with heat retention and efficiency.

• Oil-fired steam boiler suitable for various heating applications
• Long steaming times due to large water content
• Flexible venting options with rear and top flue outlets

Product Highlights

This oil boiler is ideal for homes needing efficient heating solutions.

Product Information

Standard Information

• Fuel Type: Oil-Fired
• Manufacturer: Weil-McLain

Technical Specifications

• BTU Input: 133000
• DOE Rating: 114000
• Efficiency: 85%
• IBR Rating: 86000
• Vent Size: 7 inches
• Height: 35-5/8 inches
• Width: 20-1/4 inches
• Depth: 15-1/2 inches
• Warranty: 10 Year (Heat Exchanger)/ 2 Year (Parts)
• Series: SGO Series 4
• AFUE: 85%
• Material: Cast Iron
• Boiler Type: Residential
• Venting: Chimney Vent
• Burner Input: .95 GPH
• Product Type: Oil Steam Boilers
• Domestic Hot Water: No
• Building Type: Residential
• Supply: Female Iron Pipe 2 1/2
• Return: Female Iron Pipe 2
• Square Feet of Steam: 358
