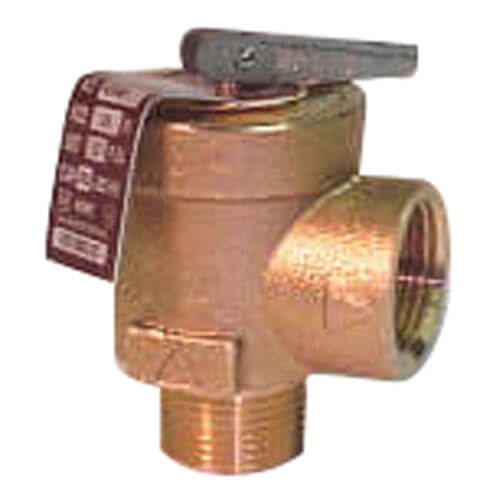

Weil-McLain 383600105 ASME Steam Valve

Product Description

The Weil-McLain ASME Steam Valve, model 383600105, is designed for efficient steam management in heating systems. This valve is set to relieve pressure at fifteen PSIG. It includes a side outlet and a three-quarter inch N.P.T. male inlet. The valve supports a capacity of four hundred forty-six pounds per hour.

• Pressure relief setting at 15 PSIG
• Side outlet configuration
• Compatible with three-quarter inch N.P.T. male inlet

Product Highlights

This steam valve is suitable for use with Weil-McLain boilers, ensuring reliable operation in residential and commercial heating applications.

Product Information

Standard Information

• Weight: 5 lbs
• Used With: 76 Boilers, 78 Boilers, 80 Boilers, EGH Boilers

Technical Specifications

• Relief Pressure: 15 PSIG
• Outlet Type: Side outlet
• Inlet Size: 3/4 inch N.P.T. male
• Capacity: 446 lbs/hr
• Shipping Dimensions: 5 x 4 x 2 inches
