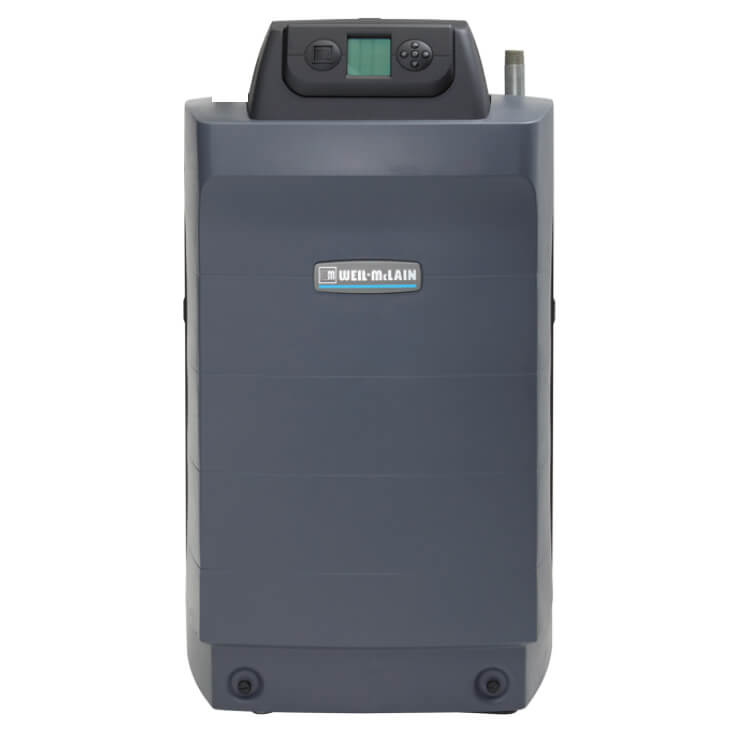

Weil-McLain 383-500-736 Ultra Series 4 Gas Boiler High Efficiency Condensing 230 MBH

Product Description

The Weil-McLain 383-500-736 is a high-efficiency condensing gas boiler known for its durability and advanced technology. This model operates on natural gas and has an input of 230 MBH. The cast aluminum heat exchanger ensures effective heat transfer, leading to up to 94% DOE AFUE efficiency.

• Low temperature condensing applications capability.
• Outdoor reset functionality.
• 5:1 turn-down ratio for efficient operation.

Product Highlights

This boiler is designed for hydronic heating systems and can be integrated into various heating configurations. Its stainless steel burner provides quiet operation and cleaner combustion, complying with low NOx standards. The boiler's modulating control adjusts to heating demands automatically, making it suitable for residential applications.

Product Information

Standard Information

• Brand: Weil-McLain
• Model: 383-500-736

Technical Specifications

• BTU Input: 230,000 BTU
• BTU Output: 183,000 BTU
• Efficiency: 94.1%
• Material: Aluminum
• Voltage: 115 VAC
• Weight: 248 lbs
• Dimensions: 43.0625 inches height, 22.8125 inches width, 19.9375 inches depth
