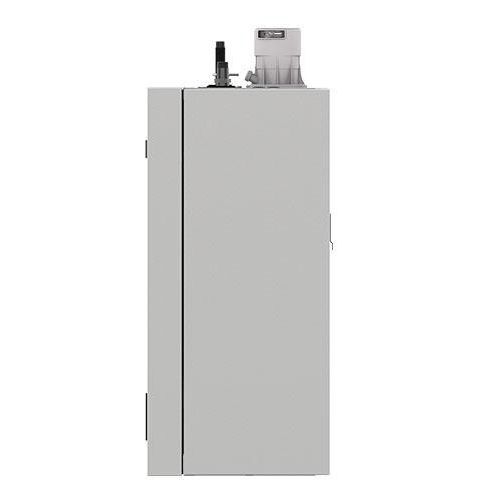

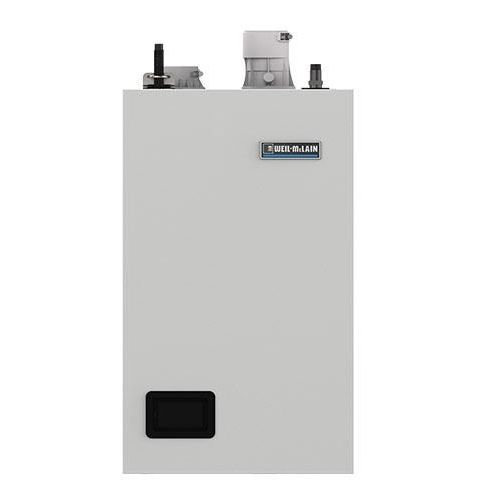

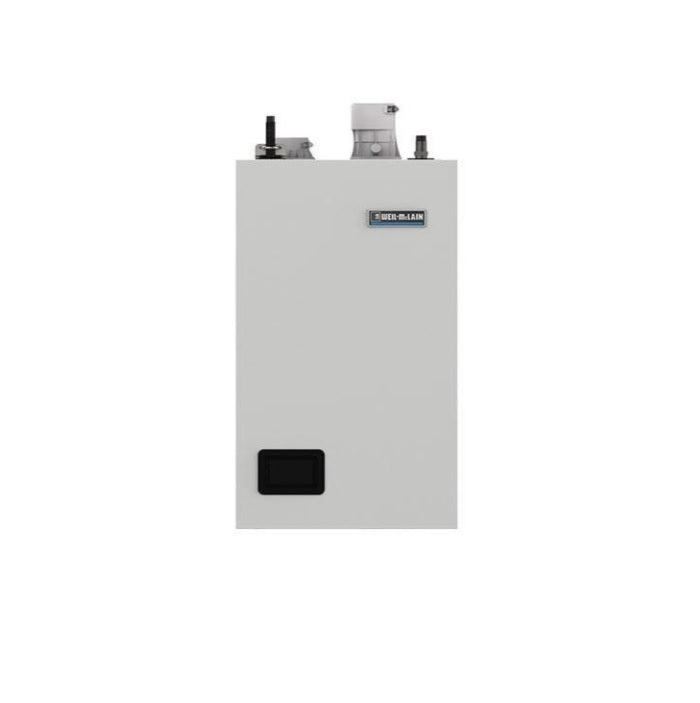

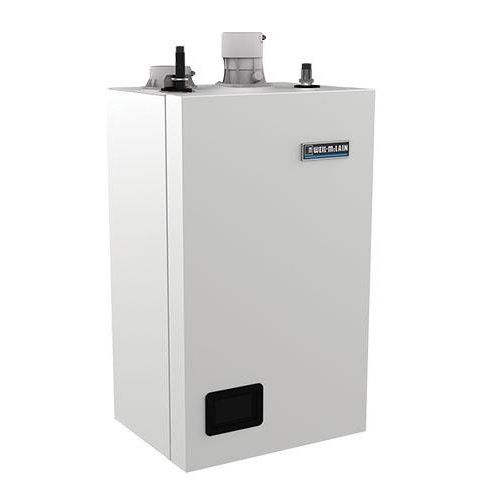

WEIL-MCLAIN 383-200-002 Simplicity 199 Combination Wall Mount Boiler

Product Description

The WEIL-MCLAIN 383-200-002 Simplicity 199 is a wall-mounted combination boiler that serves hydronic space heating and supplies domestic hot water. It can operate as a combi boiler, supplying both heating and hot water, or as a heat-only boiler focused on space heating. The unit includes a stainless steel firetube heat exchanger and a robust polypropylene base. This boiler is compatible with natural gas and designed for direct venting.

• Ideal for both heating and hot water needs.
• Equipped with a stainless steel firetube heat exchanger.
• Wall-mountable design for space efficiency.

Product Highlights

The WEIL-MCLAIN 383-200-002 offers a versatile solution for heating systems while saving space and providing energy efficiency.

Product Information

Standard Information

• Manufacturer Part Number: 383-200-002
• Fuel Type: Natural Gas

Technical Specifications

• Vent Type: Direct Vent
• Efficiency: 95%
• BTU Input: 199000
• Boiler Outlet: 3/4 MNPT
• Boiler Inlet: 3/4 MNPT
• DHW Inlet/Outlet Connections: 1/2 MNPT
• Vent Connection: 3 PVC/PP/SS
• Gas Connection: 1/2 MNPT
• Air Intake Connection: 3 PVC
• Installation Type: Wall Mounted
• Height: 38-3/8 inches
• Width: 20 inches
• Energy Star Rated: Yes
• Connection for Relief Valve & Air Vent: 3/4 MNPT
