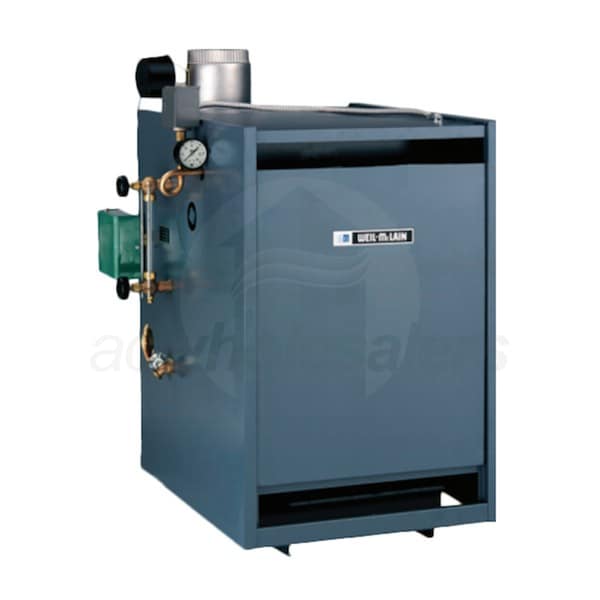

WEIL-MCLAIN 381800827 EG-30-S-PIDN Natural Gas Steam Boiler

Product Description

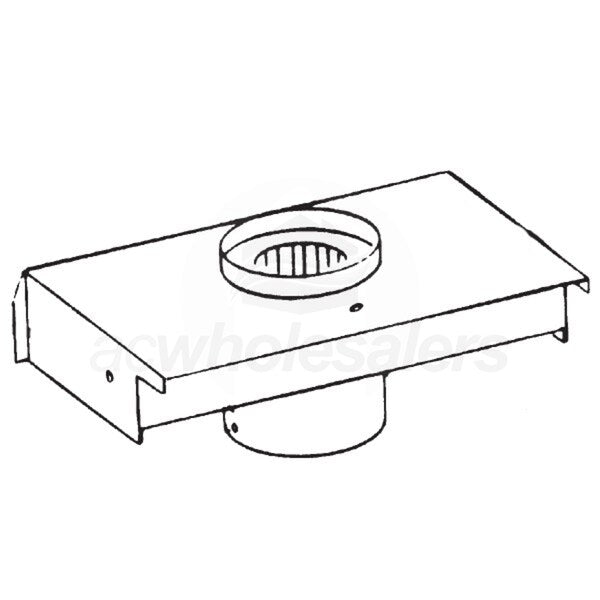

The WEIL-MCLAIN EG-30-S-PIDN is a natural gas steam boiler designed for both new installations and replacements. It includes a cast iron heat exchanger for efficient heat transfer and an insulated steel jacket that reduces heat loss. This model features a horizontal-to-vertical draft hood, streamlining installation without needing a traditional draft hood. The automatic vent damper included with the boiler optimizes combustion, which enhances overall efficiency.

• Designed for natural gas steam applications.
• Features a robust cast iron heat exchanger.

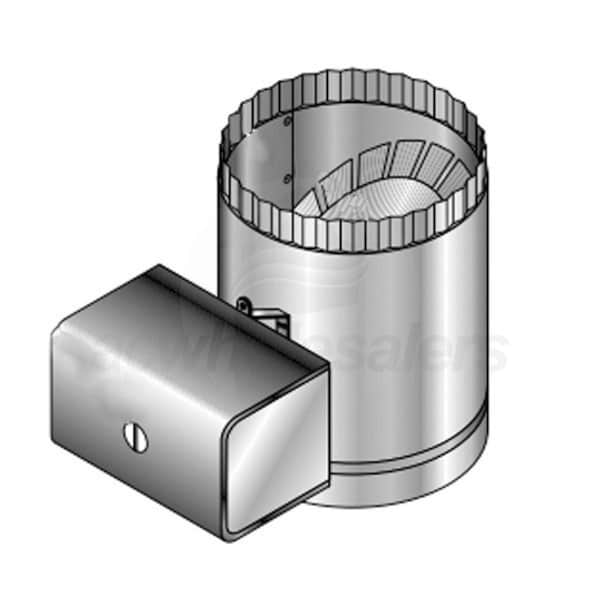

• Equipped with an automatic vent damper for efficiency.

Product Highlights

This boiler is effective for residential and commercial use in steam heating systems.

Product Information

Standard Information

• Product Line: EG
• Medium: Steam

Technical Specifications

• Heat Exchanger Material: Cast Iron
• Fuel Type: Natural Gas
• Combustion Type: Conventional
• Vent Type: Chimney Vent
• DHW Production: No
• Modulating/Staging: Single Stage
• Mount Type: Floor
• Altitude Capacity: 0 to 2000 Feet
• Assembly Type: Knockdown
• AFUE: 83 %
• Maximum Input Capacity: 75000 BTU
• DOE Heating Capacity: 62000 BTU
• Net I=B=R Capacity: 47000 BTU
• Gas Connection Size: 1/2 Inch
• Flue Connection Size: 5 Inches
• Supply Connection: 3 Inches
• Return Connection: 2 1/2 Inches
• Product Height: 33 3/4 Inches
• Product Width: 17 Inches
• Product Depth: 27 5/8 Inches
• Weight: 380 Pounds
• CSA Listed: Yes
• ASME Certified: Yes
• AHRI Certified: Yes
• AHRI Reference Number: 2101599
• Country of Origin: United States
• Parts Warranty: 1 Year
