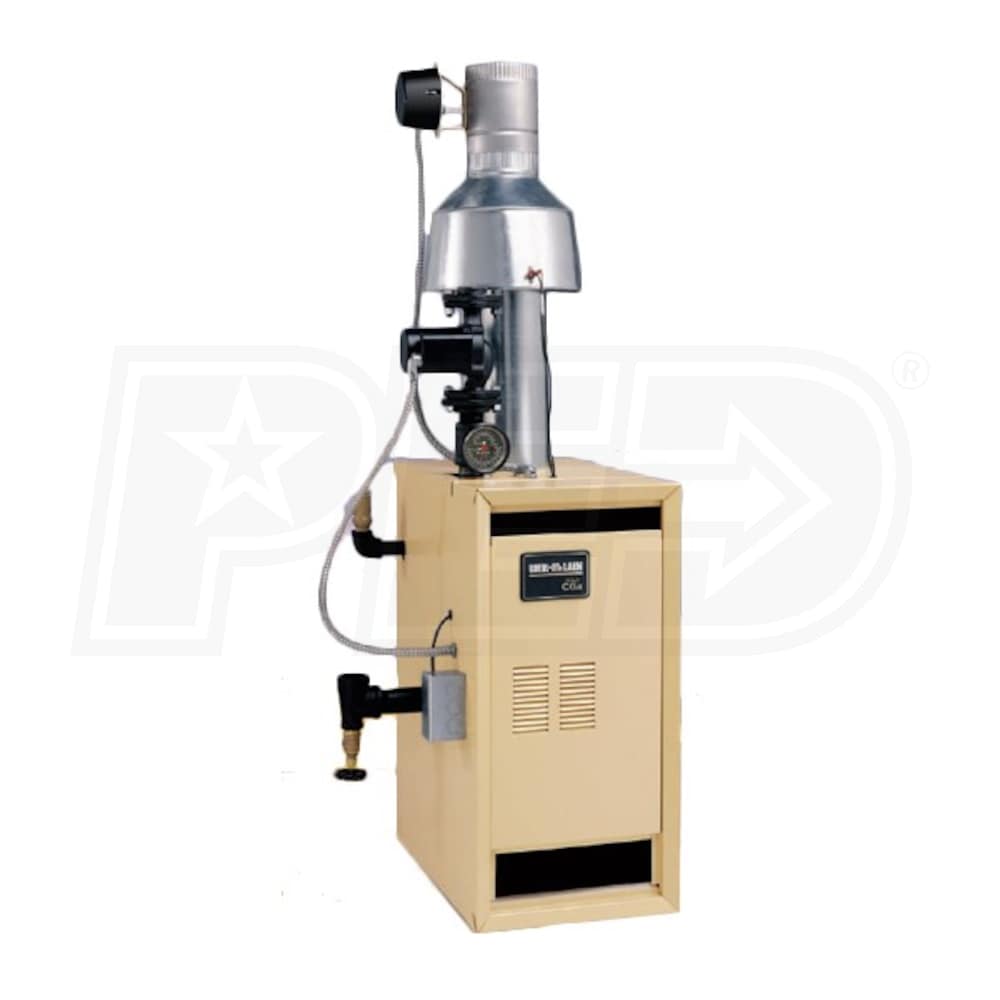

WEIL-MCLAIN 381357802 CGa-3-PIDN Gas Boiler 59K BTU

Product Description

The Weil-McLain CGa-3-PIDN gas boiler with MPN 381357802 is designed for residential hot water heating applications. This boiler employs a cast iron heat exchanger for efficient heat transfer and requires natural draft venting through a chimney. It operates using natural gas and comes equipped with a Taco circulator pump.

• Features a compact design for easy installation.
• Includes a vent damper and draft hood.
• Ideal for setups where space is limited.

Product Highlights

This boiler is well-suited for residential environments and operates efficiently within standard natural gas systems.

Product Information

Standard Information

• Product Line: CGa
• Application: Residential

Technical Specifications

• Medium: Hot Water
• Heat Exchanger Material: Cast Iron
• Fuel Type: Natural Gas
• Combustion Type: Conventional
• Vent Type: Chimney Vent
• Maximum Input Capacity: 70000 BTU
• DOE Heating Capacity: 59000 BTU
• AFUE: 84%
• Dimensions: 28 3/8 inches (H) x 10 inches (W) x 23 1/4 inches (D)
• Weight: 200 lbs
• Gas Connection Size: 1/2 inch
• Supply Connection: 1 inch
• Return Connection: 1 inch
• Warranty on Heat Exchanger: 20 Years
• CSA Listed: Yes
• AHRI Certified: Yes
