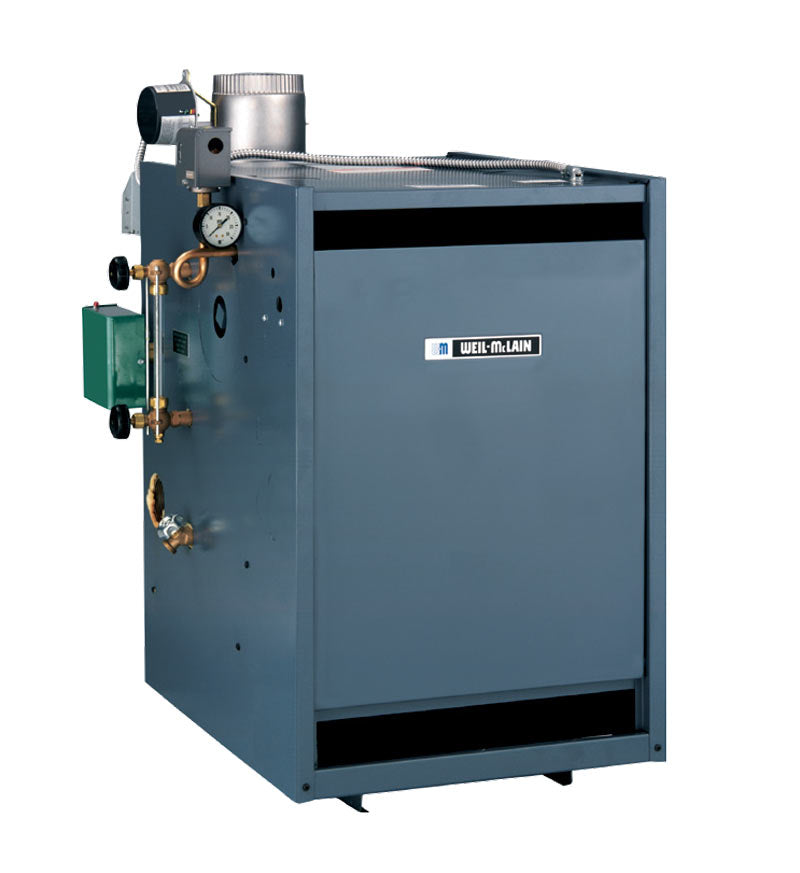

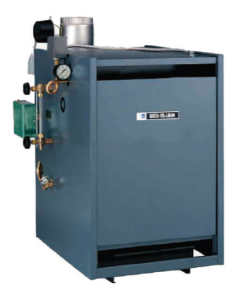

Weil-Mclain 381-800-850 PEG-65 PIDN Natural Gas Steam Boiler Only 250 MBH

Product Description

The Weil-Mclain 381-800-850 PEG-65 PIDN is a natural gas steam boiler designed for efficient steam applications. The boiler operates with an AGA input of 250 MBH and is built with a durable cast iron body suitable for floor mounting.

• Electronic intermittent ignition for reliable start-up
• Automatic vent damper enhances efficiency
• Convenient access to controls for easier servicing

Product Highlights

This model is tailored for natural gas usage and features a 15 PSI ASME relief valve for safety. Its construction includes an insulated jacket and a stainless steel burner, ensuring durability and optimal performance.

Product Information

Standard Information

• Brand: Weil-Mclain
• Product Type: Steam Boiler

Technical Specifications

• MPN: 381-800-850
• Type: Steam
• Supply Connection: 3 inches threaded
• Return Connection: 2.5 inches threaded
• Gas Type: Natural Gas
• Gas Connection: 3/4 inch
• AGA Input Rating: 250 MBH
• DOE Heating Capacity: 209 MBH
• Net IBR Rating: 157 MBH
• AFUE Rating: 82 percent
• Boiler Dimensions: 29.75 inches length x 27.625 inches width x 33.75 inches height
• Boiler Height Including Draft Hood: 41.875 inches
• Boiler Material: Cast Iron
• Water Content: 12.6 gallons
• Ignition Type: Electronic Intermittent
• Burner Type: Stainless Steel, Non-Linting Pilot
• Vent Size: 8 inches
• Relief Valve Details: 15 PSI ASME relief valve supplied
• Pressure Rating: 50 PSI
• Warranty: 10 Year Limited (Heat Exchanger), 2 Year Limited (Other Parts)
