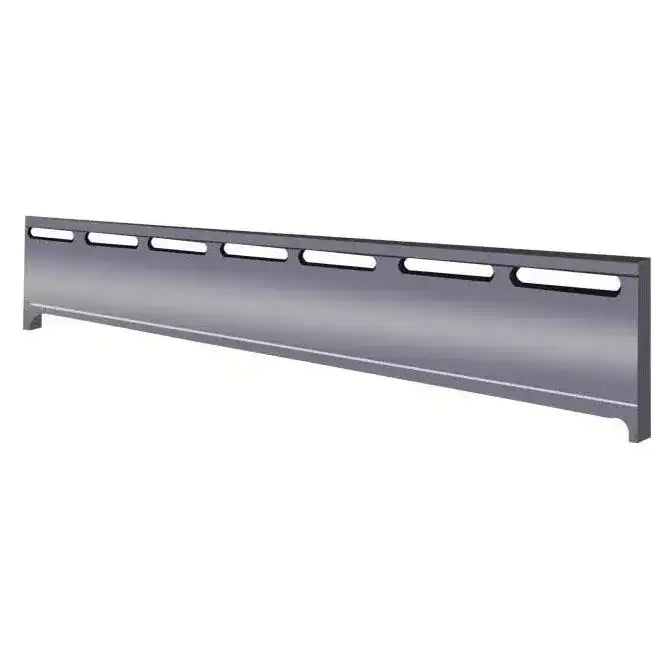

Weil-Mclain 190-100-012 Snug baseboard 655 to 3200 BTU/hr (4 ft)

Product Description

The Weil-McLain 190-100-012 Snug baseboard is a 4-foot cast iron hydronic heating section intended for hot water and steam systems. It provides 655 to 3200 BTU/hour output, accepts a 3/4-inch threaded element connection, and is rated for 110 to 215 F with a working pressure up to 50 psi. The unit supports flow rates of 1 to 6 GPM and is factory-primed for field painting.

• 4 ft cast iron baseboard section for hot water and steam systems; heating capacity 655–3200 BTU/hr
• 3/4-inch threaded element connection; flow rate 1–6 GPM; temperature rating 110–215 F
• Factory-primed finish; rated to 50 psi working pressure; joinable sections for continuous runs

Product Highlights

Cast iron 4 ft hydronic baseboard section with 655–3200 BTU/hr output, 3/4-inch threaded element connection, and 110–215 F temperature rating.

Product Information

Standard Information

• Brand: WEIL-MCLAIN
• Manufacturer Part Number: 190-100-012

Technical Specifications

• Brand: Weil-McLain
• Manufacturer Part Number: 190-100-012
• Product Name: Snug baseboard
• Category: HVAC/R & Fans
• Type: Hot water, Steam
• Material: Cast iron
• Length: 4 ft (48 in)
• Depth: 2.25 in
• Width: 2.25 in
• Height: 9.75 in
• Heating Capacity: 655 to 3200 BTU/hour
• Element Connection: 3/4 inch threaded
• Flow Rate: 1 to 6 GPM
• Temperature Rating: 110 to 215 F
• Working Pressure: 50 psi
• Finish: Factory-primed (suitable for field painting)
• Weight: 68 lb
• UPC: 672619266124
• Alternate Part Numbers: 229435, 280028
• Model: CIB (#9 CIBB)
