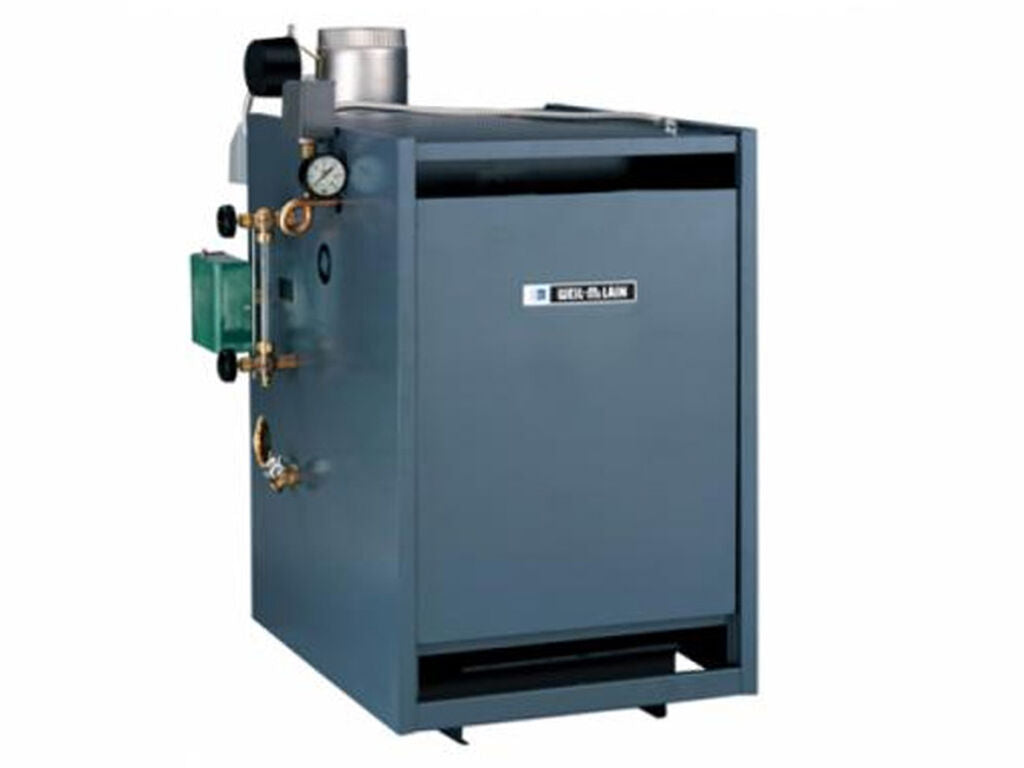

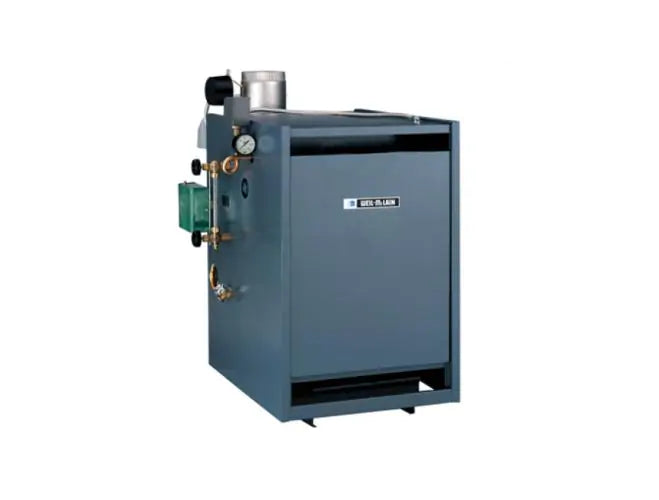

Weil-McLain 118654500 EG-65 Series 6 Natural Gas Steam Boiler

Product Description

The Weil-McLain EG-65 Series 6 is a gas-fired steam boiler ideal for residential and light commercial hydronic heating needs. The model 118654500 provides a net steam output of one hundred forty-nine thousand BTU per hour with an overall input of two hundred thirty-eight thousand BTU per hour. It includes an automatic vent damper to minimize standby losses and an integral low water cut-off for added safety.

• Automatic vent damper to reduce standby losses.
• Cast iron heat exchanger for durability.
• Compatible with gravity-return or pumped-return low-pressure steam systems.

Product Highlights

This steam boiler is suitable for high-efficiency heating with simple maintenance.

Product Information

Standard Information

• Brand: Weil-McLain
• MPN: 118654500

Technical Specifications

• Fuel Type: Gas
• Model: EG
• Water or Steam: Steam
• Size: 238 MBH
• Efficiency: 82%
• Heat Exchanger Material: Cast Iron
• Chimney Type: Atmospheric
• Mounting Type: Floor
• Power Rating: 40 VA
• Pressure Rating: 30 PSI
• Series: EG Series
• Weight: 706 lbs
