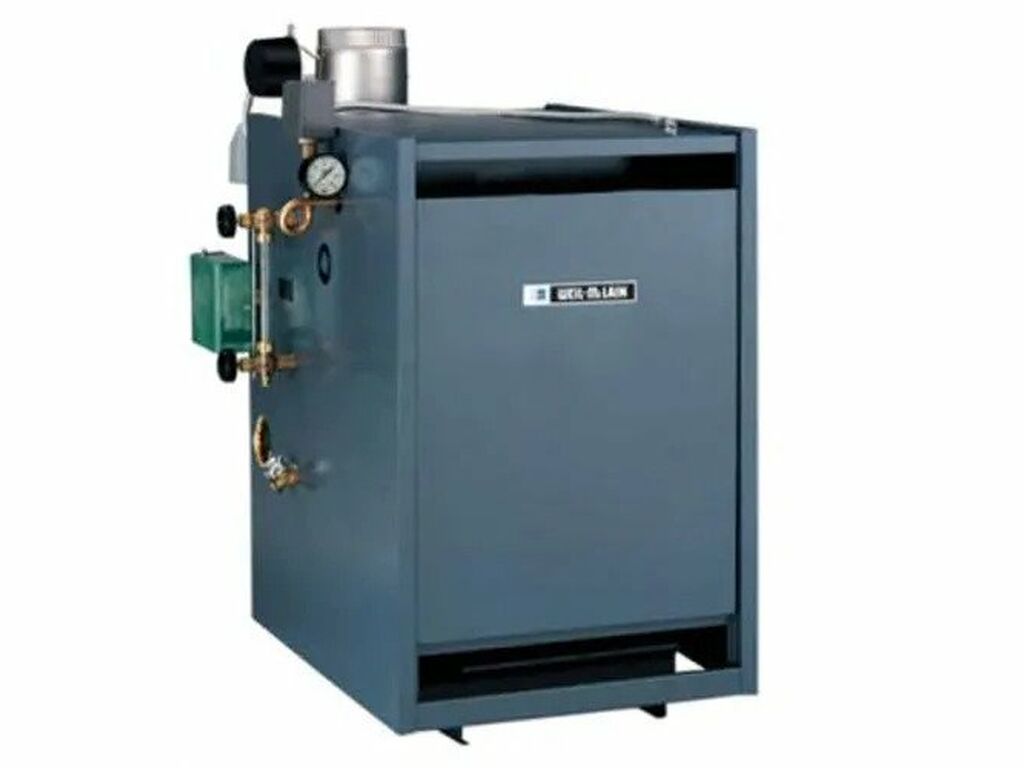

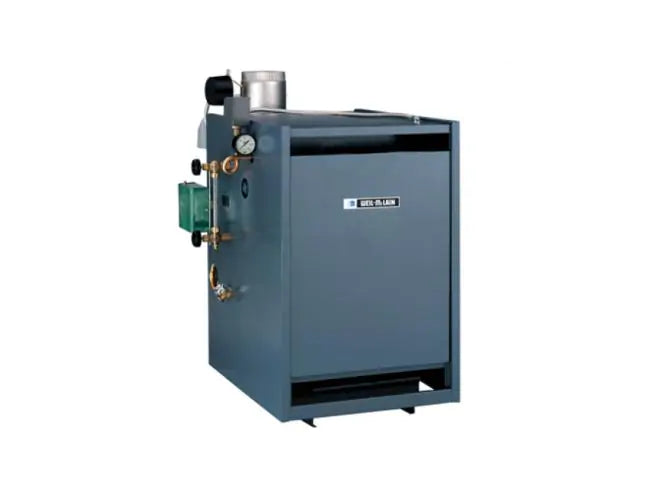

Weil-McLain 118404500 EG-40 PIDN Series 6 Steam Boiler

Product Description

The Weil-McLain EG-40 PIDN Series 6 steam boiler is designed for efficient steam heating applications. The MPN 118404500 identifies this reliable cast iron boiler, which is configured to operate with natural gas. It has an input capacity of one hundred twenty-five MBH and a DOE steam output of approximately seventy-eight MBH, achieving an AFUE rating of eighty-four percent.

• Includes a factory-assembled design with an insulated jacket.
• Features an automatic vent damper for enhanced efficiency.
• Supports chimney venting for easy installation.

Product Highlights

This boiler is built to provide effective steam heating while ensuring durability and ease of use.

Product Information

Standard Information

• Manufacturer: Weil McLain
• Model: EG

Technical Specifications

• Water or Steam: Steam
• Fuel Type: Gas
• Input: 125 MBH
• Efficiency: 84 %
• Heat Exchanger Material: Cast Iron
• Chimney Type: Atmospheric
• DOE Output (Steam): ~78 MBH
• Pressure Rating: 50 PSIG
• Vent Connection: 6 inches chimney via draft hood
• Ignition System: Intermittent electronic
• Weight: ~505 lb
• Warranty (Heat Exchanger): 20 years
• Warranty (Parts): 2 years
