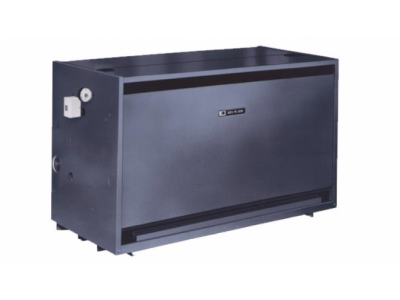

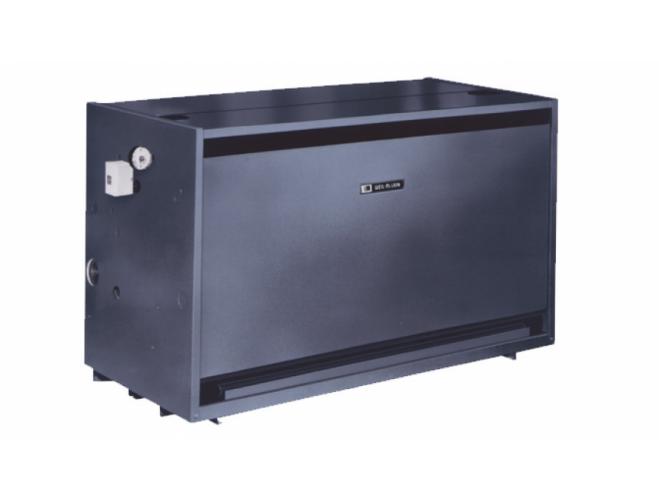

Weil-McLain 117-084-350 EGH-85-S Natural Gas Steam Boiler

Product Description

The Weil-McLain 117-084-350 is a natural gas steam boiler intended for commercial use. This high-efficiency model is equipped with a combination gas valve and regulator, ensuring safe operation. Its stainless steel burners offer durability and reliable performance. The non-linting pilot burner comes with LP conversion capability, making it adaptable to various setups.

• Operates on natural gas and produces steam.
• Includes factory-assembled section block for robust design.
• Insulated extended steel jacket enhances energy efficiency.

Product Highlights

This boiler is ideal for commercial buildings, equipped with intermittent electronic ignition, and conforms to the EGH-85 series standards.

Product Information

Standard Information

• Brand: Weil-McLain
• Fuel Type: Natural Gas

Technical Specifications

• Manufacturer Part Number: 117-084-350
• Type: Steam
• Heat Exchanger Material: Stainless Steel
• BTU Input: 315000
• BTU Output: 243000
• Vent Type: Atmospheric Vent
• Building Type: Commercial
• Length: 53.375 inches
• Width: 38.25 inches
• Height: 33.75 inches
• Vent Material: Galvanized
• Gas Connection: 3/4 inches
• Weight: 825 pounds
• Compatible With: 117-081-330, 117-082-330, 117-084-330, 117-085-330, 117-085-340, 117-085-350
