Description

Product Description

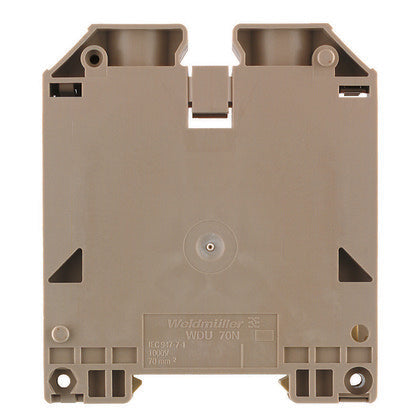

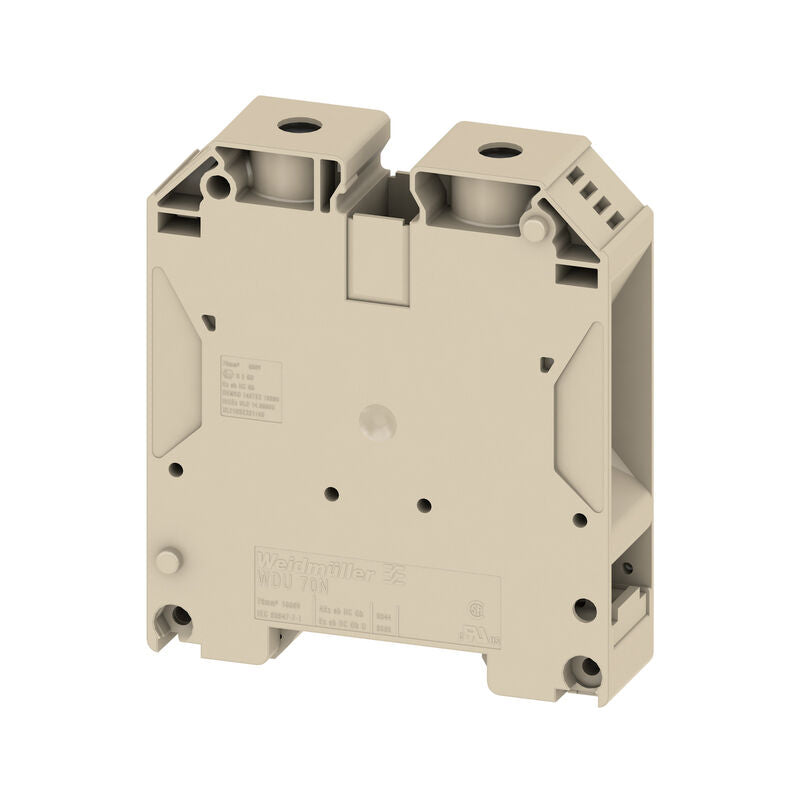

The Weidmuller 9512190000 WDU 70N/35 is a feed-through terminal block with screw connections. This dark beige terminal block supports 70 mm wire, 192 A, and 1000 V, and features two connections. It is designed for DIN rail mounting and is suitable for various industrial applications.

  • Screw connection for secure wiring
  • Supports up to 70 mm wire size
  • Rated for 192 A and 1000 V

Product Highlights

Feed-through terminal block with screw connection, supporting up to 70 mm wire size and 192 A current.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 9512190000
  • Country of Origin: US
Technical Specifications
Order No.
9512190000
Type
Terminal
GTIN (EAN)
4008190403874
Depth
85 mm
Depth (inches)
3.346 inch
Depth including DIN rail
86 mm
Height
75 mm
Height (inches)
2.953 inch
Width
20.5 mm
Width (inches)
0.807 inch
Net weight
118.93 g
Storage temperature
-25 C...55 C
Ambient temperature
-60 C 85 C
Continuous operating temp., min.
-60 C
Continuous operating temp., max.
130 C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO14ATEX1338U
Certificate No. (IECEX)
IECEXULD14.0005U
Max. voltage (ATEX)
690 V
Current (ATEX)
184 A
Wire cross section max. (ATEX)
70 mm
Max. voltage (IECEX)
690 V
Current (IECEX)
184 A
Wire cross section max. (IECEX)
70 mm
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
Screw connection
for screwable cross-connection
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
Yes
Cross-section for connected wire, stranded, two clampable wires, max.
25 mm
Cross-section for connected wire, stranded, two clampable wires, min.
10 mm
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
25 mm
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
6 mm
Wire connection cross section, finely stranded, two clampable wires, min.
10 mm
Wire cross-section, finely stranded, two clampable wires, max.
25 mm
Explosion-tested version
Yes
Installation advice
Direct mounting
Number of similar terminals
1
Open sides
closed
Type of mounting
Snap-on
Connection type, additional connection
Screw connection
Blade size
S6 (DIN 6911)
Clamping range, max.
95 mm
Clamping range, min.
16 mm
Clamping screw
M 8
Connection cross-section, finely stranded, min.
16 mm
Connection cross-section, stranded, max.
95 mm
Connection cross-section, stranded, min.
16 mm
Connection direction
on side
Gauge to IEC 60947-1
B11
Number of connections
2
Stripping length
22 mm
Tightening torque, max.
12 Nm
Tightening torque, min.
8 Nm
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 0
Wire connection cross section AWG, min.
AWG 6
Wire connection cross section, finely stranded, max.
70 mm
Wire connection cross section, finely stranded, min.
16 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
70 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
16 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
50 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
16 mm
Wire connection cross-section, solid core, max.
16 mm
Wire connection cross-section, solid core, min.
16 mm
Certificate No. (CSA)
200039-1581431
Current size C (CSA)
150 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
0 AWG
Wire cross section min. (CSA)
6 AWG
Standards
IEC 60947-7-1
Rated cross-section
70 mm
Rated voltage
1,000 V
Rated DC voltage
1,000 V
Nominal current
192 A
Current at maximum wires
232 A
Volume resistance according to IEC 60947-7-x
0.17 m
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
6.14 W
Pollution severity
3
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
0 AWG
Conductor size Factory wiring min. (cURus)
6 AWG
Conductor size Field wiring max. (cURus)
0 AWG
Conductor size Field wiring min. (cURus)
6 AWG
Current size C (cURus)
150 A
Voltage size C (cURus)
600 V
Brand
Weidm
Termination Type
Feed-Through
