Weidmuller 9123140001 ASK1EN/SMT 10-60VUC BFI H+

Brand: Weidmuller
SKU: 9123140001
Availability: In Stock

Ships same day if ordered by 12 pm
$24.82
$24.82
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

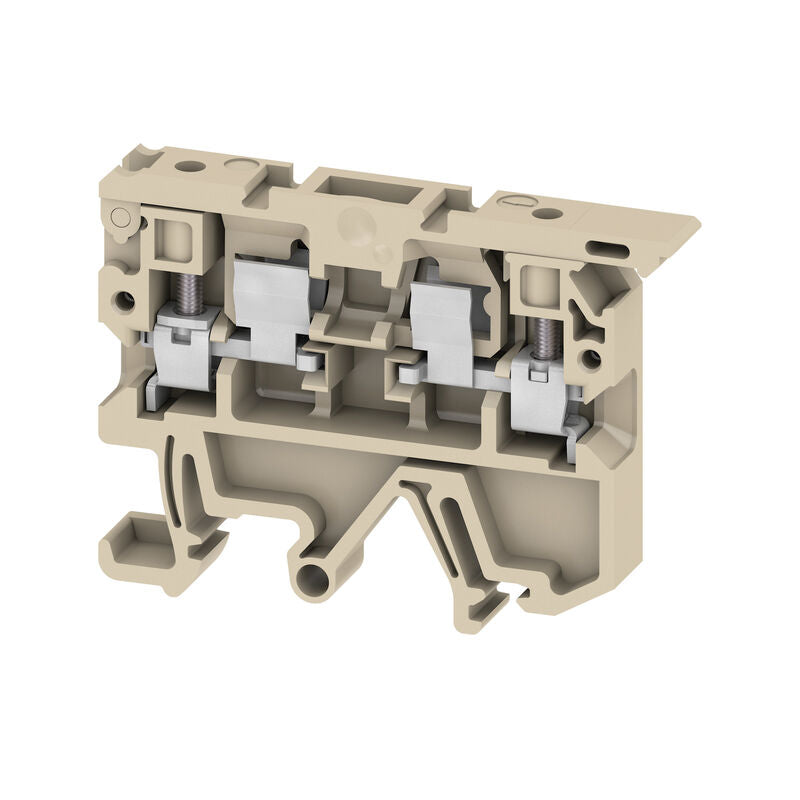

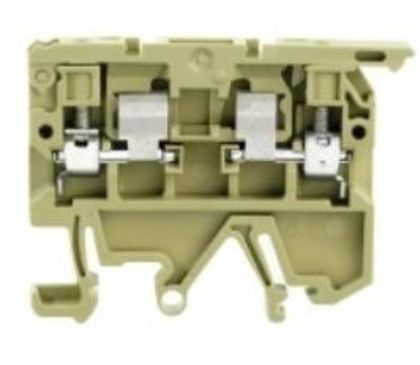

The Weidmuller 9123140001 ASK1EN/SMT 10-60VUC BFI H+ is a fuse terminal with screw connections, designed for DIN Rail mounting. It supports a rated cross-section of 4 mm and a nominal current of 6.3 A at 60 V. This terminal block is suitable for various electrical connections.

  • Screw connection type
  • Suitable for TS 35 and TS 32 mounting rails
  • Supports wire connection cross sections from AWG 26 to AWG 10

Product Highlights

Fuse terminal with screw connection, 4 mm , 6.3 A, 60 V, Number of connections: 2, Number of levels: 1, TS 35, TS 32

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 9123140001
  • Country of Origin: Germany
Technical Specifications
Version
Screw connection
Order No.
9123140001
Type
ASK1EN/SMT 10-60VUC BFI H+
GTIN (EAN)
4032248730919
Depth
43 mm
Depth (inches)
1.693 inch
Height
58 mm
Height (inches)
2.283 inch
Width
8.1 mm
Width (inches)
0.319 inch
Net weight
12.93 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…55 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
100 °C
RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%
Basic material
PA 66
UL 94 flammability rating
V-2
Fuse cartridge
One end without connector
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35, TS 32
Type of mounting
Snap-on
Clamping range, max.
6 mm²
Clamping range, min.
0.13 mm²
Connection cross-section, finely stranded, min.
0.13 mm²
Connection cross-section, stranded, min.
0.13 mm²
Connection direction
on side
Number of connections
2
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, min.
0.13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.13 mm²
Wire connection cross-section, solid core, min.
0.13 mm²
Rated cross-section
4 mm²
Rated voltage
60 V
Rated DC voltage
60 V
Nominal current
6.3 A
Volume resistance according to IEC 60947-7-x
1 mΩ
Power loss in accordance with IEC 60947-7-x
1.02 W
ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
Current - IEC
6.3 A
Manufacturer
Weidmüller
Voltage - IEC
500V
Series
ASK
Current - UL
10 A
Voltage - UL
300V
Part Status
Active
Wire Gauge or Range - AWG
12-26 AWG
Disconnect Type
Fuse, Lever
Features
LED
Number of Positions
2
Terminal - Width
8.0mm
Stripping Length
9mm
Termination Style
Screw
Model
ASK1EN/SMT 10-60VUC BFI H+
Brand
Weidmuller
Condition
New
Mfr Catalog Number
9123140001
Product Group
A
UPC
32248730919
Product UPC
32248730919
EAN / GTIN
4032248730919
Unique Product Key
83022
PC ID
83022
PC W BUY LINE
WEIDMULL
PC W DESC
WEIDMULLER 9123140001 ASK1EN/SMT 10-60VUC BFI H (
PC W ID
83022
PC W STK STATUS NUM
4
Wire Gauge or Range - mm²
4mm²
