Weidmuller 9037610000 Conn Ferrule 2X18AWG

Product Description

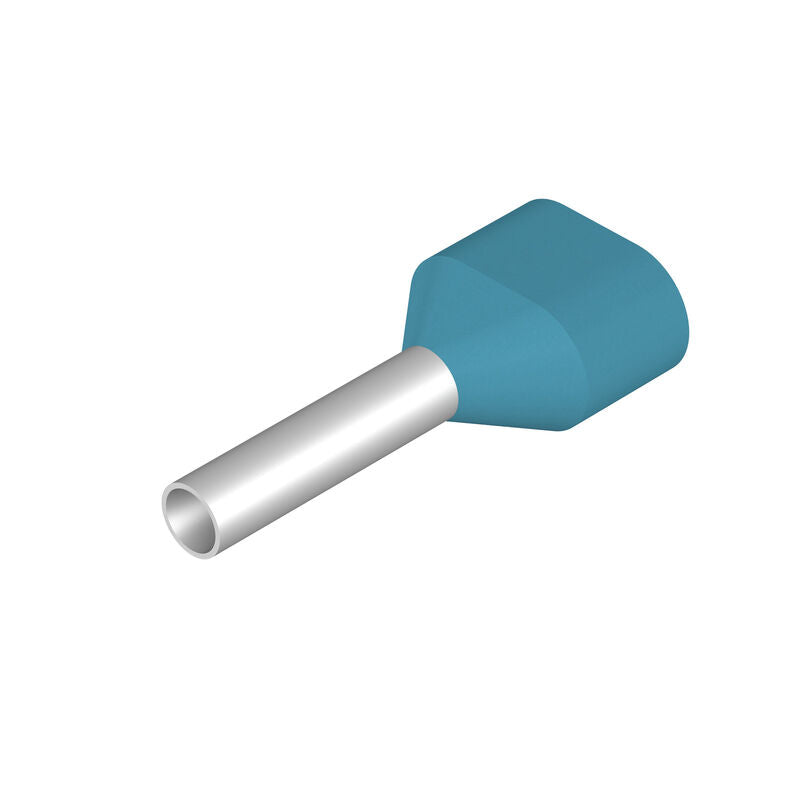

The Weidmuller 9037610000 is a blue wire ferrule connector for two 18 AWG (0.75mm²) wires. This twin wire-end ferrule has a 11 mm stripping length and 8 mm contact surface length. It is designed for secure and reliable wire terminations in electrical applications.

• Wire-End Ferrules
• Twin wire-end ferrule
• 11 mm stripping length

Product Highlights

The Weidmuller 9037610000 ensures secure wire terminations with its twin wire-end ferrule design and precise dimensions.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 9037610000
• Country of Origin: DE

Technical Specifications

• Category: Connectors, Interconnects
• Insulation: Partially Insulated
• Manufacturer: Weidmuller
• Size: Two x 18 AWG (0.75mm²)
• Packaging: Bulk
• Length - Overall: 14.00mm
• Part Status: Active
• Length - Pin: 8.00mm
• Type: Two Wire
• Color: Blue
• Version: Twin wire-end ferrule
• Collar height (A): 5.5 mm
• Collar width (B): 3 mm
• Colour code: Telemecanique
• Conductor cross-section: 0.75 mm²
• Contact surface diameter (D1): 1.7 mm
• Contact surface length (L2): 8 mm
• L1 in mm: 14 mm
• Metal sleeve thickness (S1): 0.15 mm
• Plastic collar thickness (S2): 0.3 mm
• Stripping length: 11 mm
• Wire connection cross section AWG, max.: AWG 18
• Ferrule Pin Length: 8 mm
• Ferrule for Wire Gauge: 18 Gauge
• Component: Ferrule
• Cross-Section: 0.75 mm²
• Product Type: Bootlace Ferrule
• Insulation Material: Polypropylene
• Pin Length: 8mm
• Maximum Wire Size AWG: 18AWG
• Overall Length: 11mm
• Terminal Plating: Tin Plated
• Wire Ferrule Type: 2
• Standards/Approvals: RoHS Compliant
• Terminal Material: Copper Cathode
