Weidmuller 9037510000 Type H2.5/20.5D Twin Wire End Ferrule 14 AWG

Brand: Weidmuller
SKU: 9037510000
Availability: In Stock

Ships same day if ordered by 12 pm
$20.27
$20.27
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

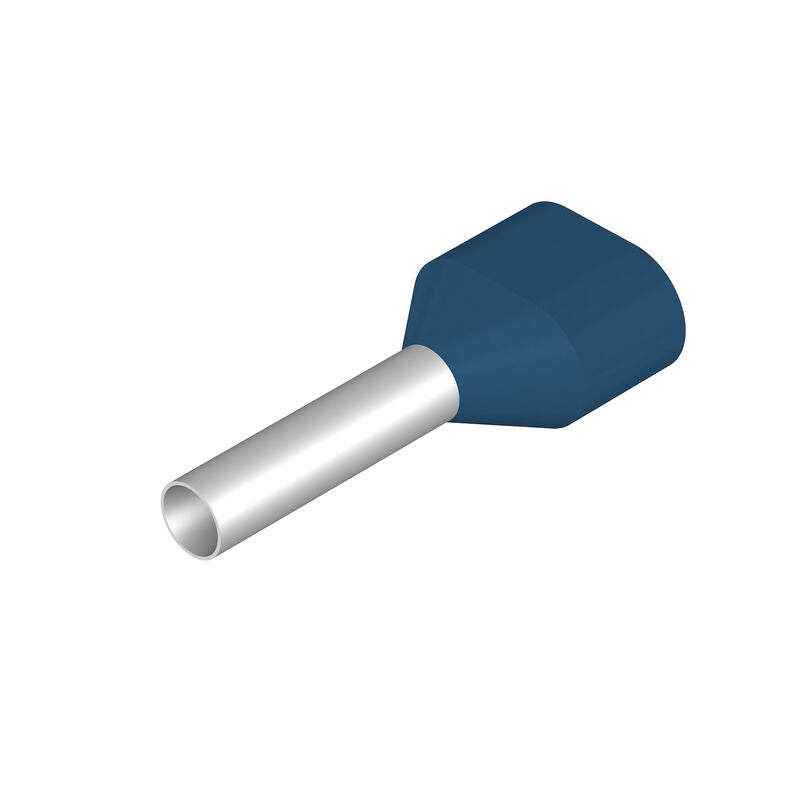

The Weidmuller 9037510000 Type H2.5/20.5D is a twin wire end ferrule with a plastic collar, designed for 14 AWG wires. It features partially insulated insulation and is constructed from tin-plated cathode copper. This wire-end ferrule ensures a reliable connection for conductors with a nominal cross-section of 2.5 mm².

  • Partially insulated with polypropylene insulation
  • Made from tin-plated cathode copper
  • Designed for 14 AWG conductors

Product Highlights

The Weidmuller 9037510000 ferrule provides secure wire termination, preventing fraying and ensuring optimal electrical contact in various applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 9037510000
Technical Specifications
Overall Length
21 mm
Insulation Type
Partially Insulated
Contact Material
Tin Plated Cathode Copper
Conductor Size
14 AWG
Temperature Rating
105 deg C
Type
Type H2.5/20.5D
Insulation Material
Polypropylene
Vendor SKU
9037510000
Manufacturer
Weidmuller
Brand
Weidmuller
Version
Twin wire-end ferrule
Collar height (A)
8 mm
Collar width (B)
4.5 mm
Colour code
DIN
Conductor cross-section
2.5 mm 2
Contact surface diameter (D1)
2.8 mm
Contact surface length (L2)
12 mm
L1 in mm
21 mm
Metal sleeve thickness (S1)
0.15 mm
Plastic collar thickness (S2)
0.4 mm
Stripping length
15 mm
Wire connection cross section AWG, max.
AWG 14
Style
DIN
Size
Two x 14 AWG (2.50mm 2)
Packaging
Bulk
Length - Overall
21.00mm
Length - Pin
12.00mm
Two Wire
Two Wire
Insulation
Insulated
Type of tip
bootlace ferrule
Ferrule variant
double, insulated
Wire cross-section
2.5mm 2
Bit length
12mm
Contact plating
tinned
Electrical mounting
crimped
Mechanical mounting
for cable
