Weidmuller 9025870000 H0,5/16 OR (Lot of 500)

Product Description

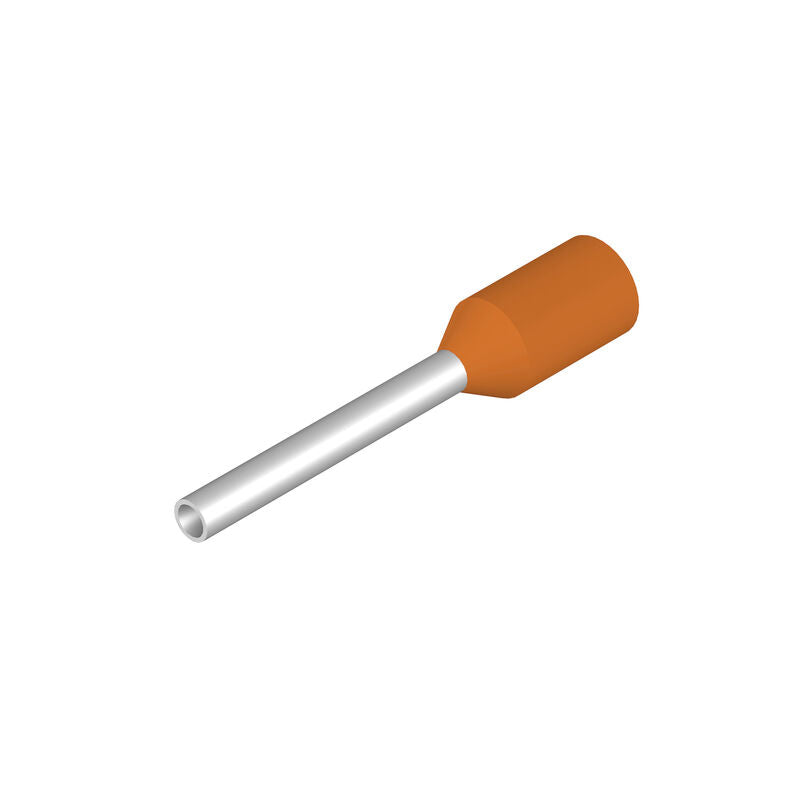

The Weidmuller 9025870000 is a standard wire-end ferrule with a plastic collar, designed for secure wire termination. This orange ferrule features a 12 mm stripping length and a 10 mm contact surface length. It is suitable for conductors with a cross-section of 0.5 mm

• Wire-end ferrule
• Standard
• 12 mm stripping length
• Suitable for 20 AWG (0.50mm 2) wire

Product Highlights

Standard wire-end ferrule with orange plastic collar, ideal for secure wire termination.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 9025870000
• Country of Origin: United States

Technical Specifications

• Version: Standard
• Order No.: 9025870000
• Type: H0,5/16 OR
• GTIN (EAN): 4008190025045
• Packaging: loose
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Description of article: Wire end ferrule with plastic collar, orange
• Collar diameter (D2): 2.6 mm
• Colour code: Weidmueller
• Conductor cross-section: 0.5 mm 2
• Contact surface diameter (D1): 1 mm
• Contact surface length (L2): 10 mm
• L1 in mm: 16 mm
• Metal sleeve thickness (S1): 0.15 mm
• Plastic collar thickness (S2): 0.25 mm
• Stripping length: 12 mm
• Wire connection cross section AWG, max.: AWG 20
• Insulation: Insulated
• Manufacturer: Weidm ller
• Size: 20 AWG (0.50mm 2)
• Length - Overall: 16.00mm
• Length - Pin: 10.00mm
• Model: H0,5/16 OR
• Brand: WEIDMULLER
• Country of Origin: United States
