Weidmuller 9019220000 H6,0/20D GE (14 mm, 12 mm)

Product Description

The Weidmuller 9019220000 H6,0/20D GE is a standard wire-end ferrule. It has a stripping length of 14 mm and a contact surface length of 12 mm. Suitable for use in electrical and electronic automation controls, this ferrule ensures reliable connections. Ideal for alternative energy applications, including wind power and solar energy.

• Wire-end ferrule
• Standard
• 14 mm stripping length
• 12 mm contact surface length

Product Highlights

Standard wire-end ferrule with 14 mm stripping length and 12 mm contact surface length.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 9019220000
• Country of Origin: DE

Technical Specifications

• Version: Standard
• Order No.: 9019220000
• Type: H6,0/20D GE
• GTIN (EAN): 4008190151607
• Packaging: loose
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%

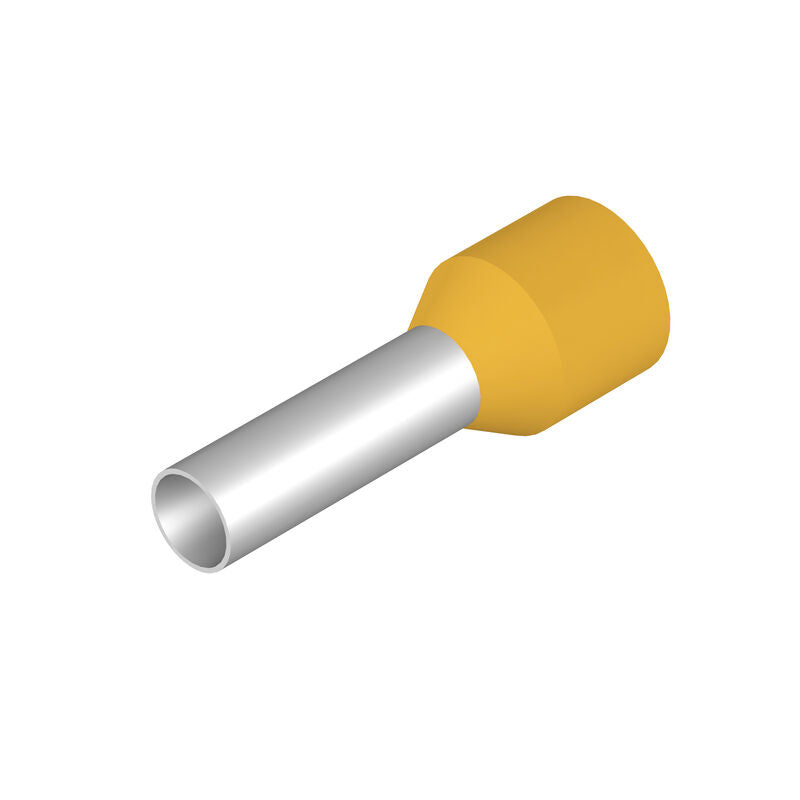

• Description of article: Wire end ferrule with plastic collar, yellow
• Collar diameter (D2): 6.3 mm
• Colour code: DIN
• Conductor cross-section: 6 mm
• Contact surface diameter (D1): 3.5 mm
• Contact surface length (L2): 12 mm
• L1 in mm: 20 mm
• Metal sleeve thickness (S1): 0.2 mm
• Plastic collar thickness (S2): 0.3 mm
• Stripping length: 14 mm
• Wire connection cross section AWG, max.: AWG 10
• ETIM 8.0: EC000005
• ETIM 9.0: EC000005
• ETIM 10.0: EC000005
• ECLASS 14.0: 27-40-02-01
• ECLASS 15.0: 27-40-02-01
• Catalog Number: 9019220000
• Connection: Screw Terminals
• Country of Origin: DE
• Brand: Weidmuller
• Manufacturer: Weidmuller, USA
• MPN: 9019220000
• Model: H6,0/20D GE
• Condition: New
• Case/Package: 100
• Contact Material: Copper
• Contact Plating: Tin
• Insulation Material: PP
• Material: Brass
• Mount: Standard
• Wire/Cable Gauge: 10 AWG
• Wire Gauge (Max): 10 AWG
• Insulation: Insulated
• Environmental Classification: Approvals
• Lead Free: Lead Free
• Radiation Hardening: No
• RoHS: Compliant
