Weidmuller 9019190000 H4,0/18D GR Wire-End Ferrule, Standard, 12 mm, 10 mm

Product Description

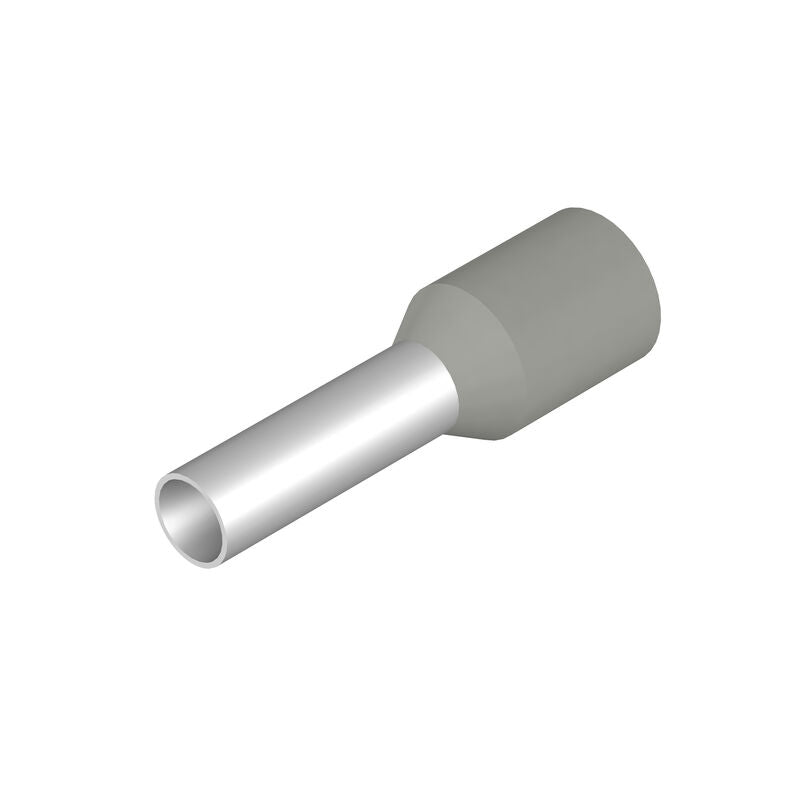

The Weidmuller 9019190000 is a wire-end ferrule with a plastic collar, designed for standard applications. It features a 12mm stripping length and a 4.8mm collar diameter. This ferrule ensures a secure crimp termination with a 4mm² conductor cross-section, accommodating 12AWG wire size. It is cULus E499744 certified.

• Wire end ferrule with plastic collar
• 12mm stripping length
• 4.8mm collar diameter (D2)

Product Highlights

Standard wire-end ferrule with plastic collar, 12mm stripping length, and 4.8mm collar diameter.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 9019190000
• Country of Origin: USA, United States

Technical Specifications

• Version: Standard
• Order No.: 9019190000
• Type: H4,0/18D GR
• GTIN (EAN): 4008190141349
• Packaging: loose
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Description of article: Wire end ferrule with plastic collar, grey
• Collar diameter (D2): 4.8 mm
• Colour code: DIN
• Conductor cross-section: 4 mm
• Contact surface diameter (D1): 2.8 mm
• Contact surface length (L2): 10 mm
• L1 in mm: 18 mm
• Metal sleeve thickness (S1): 0.2 mm
• Plastic collar thickness (S2): 0.3 mm
• Stripping length: 12 mm
• Wire connection cross section AWG, max.: AWG 12
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories
• Terminal Block Wire Ferrules: Terminal Block Wire Ferrules
• Insulation: Insulated
• Manufacturer: Weidm ller
• Size: 12 AWG (4.00mm ²)
• Length - Overall: 17.00mm
• Part Status: Active
• Length - Pin: 10.00mm
• Wire Ferrule Type: Single Wire
• Wire Size AWG Max: 12AWG
• Conductor Area CSA: 4mm ²
• Pin Length: 10mm
• Insulator Colour: Gray
• Overall Length: 18mm
• Insulator Material: PP (Polypropylene)
• Terminal Material: Copper
• Terminal Plating: Tin
• SVHC: No SVHC (23-Jan-2024)
• Material: Copper
• Temperature Rating: 257 degree fahrenheit
• Unit Count: 1 Count
• Gauge: 12.0
• Brand: Weidmuller
• MPN: 9019190000
• Contact material: Electro-Galvanized Cathode Copper
• Manufacturer Name: Weidmuller
• UNSPSC: 31163102
