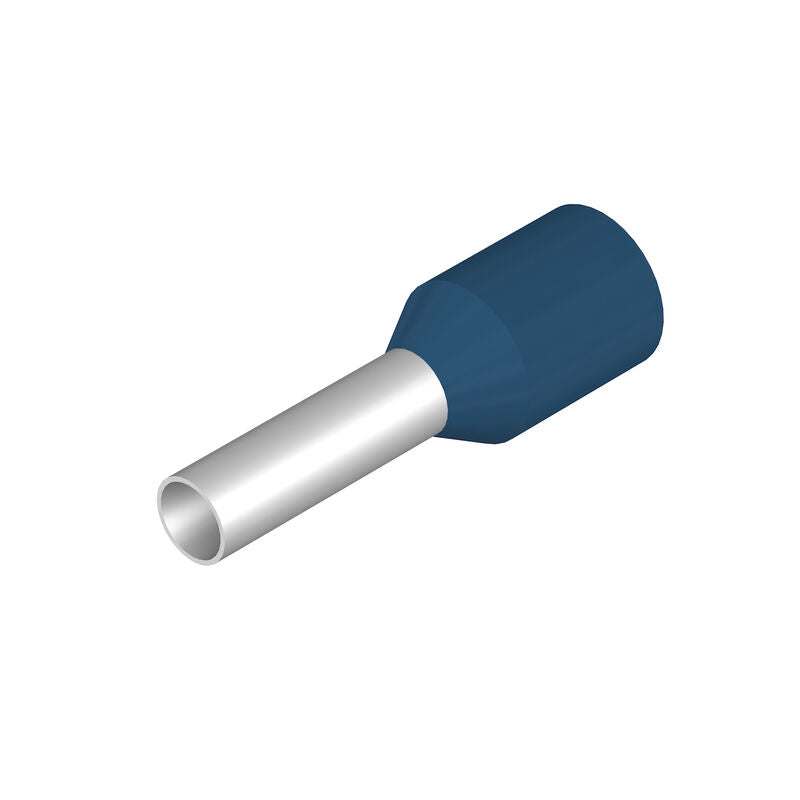

Weidmuller 9019160000 Type H2.5/15D BL Wire End Ferrule 14 AWG

Brand: Weidmuller
SKU: 9019160000
Availability: Out Of Stock
$36.97
$36.97
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Weidmuller 9019160000 Type H2.5/15D BL wire end ferrule accommodates a 14 AWG conductor and features insulated insulation. These wire end ferrules ensure electrical connections of long-lasting, consistent quality. They have a 4.2mm collar diameter and 10mm stripping length.

  • Insulated with polypropylene insulation material
  • Crimped connection type
  • Made with electro galvanized cathode copper contact material

Product Highlights

The Weidmuller 9019160000 wire end ferrule ensures consistent, quality electrical connections for industrial applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 9019160000
Technical Specifications
Insulation Type
Insulated
Contact Material
Electro Galvanized Cathode Copper
Temperature Rating
221 deg F
Conductor Size
14 AWG
Type
Type H2.5/15D BL
Insulation Material
Polypropylene
Connection Type
Crimped
Overall Length
15 mm
Manufacturer
Weidmuller
Brand
Weidmuller
Version
Standard
Collar diameter (D2)
4.2 mm
Colour code
DIN
Conductor cross-section
2.5 mm
Contact surface diameter (D1)
2.2 mm
Contact surface length (L2)
8 mm
L1 in mm
15 mm
Metal sleeve thickness (S1)
0.15 mm
Plastic collar thickness (S2)
0.25 mm
Stripping length
10 mm
Wire connection cross section AWG, max.
AWG 14
Category
Connectors, Interconnects
Style
DIN
Size
14 AWG (2.50mm)
Packaging
Bulk
Length - Overall
14.00mm
Length - Pin
8.00mm
Wire Ferrule Type
Single Wire
Wire Size AWG Max
14AWG
Conductor Area CSA
2.5mm
Pin Length
8mm
Terminal Material
Copper
Terminal Plating
Tin
Model
9019160000
Part Number
9019160000
Unit Count
1.0 Count
RoHS Status
ROHS3 Compliant
ECCN
EAR99
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
