Weidmuller 9004420000 h1,5/16d zh sw sv

Product Description

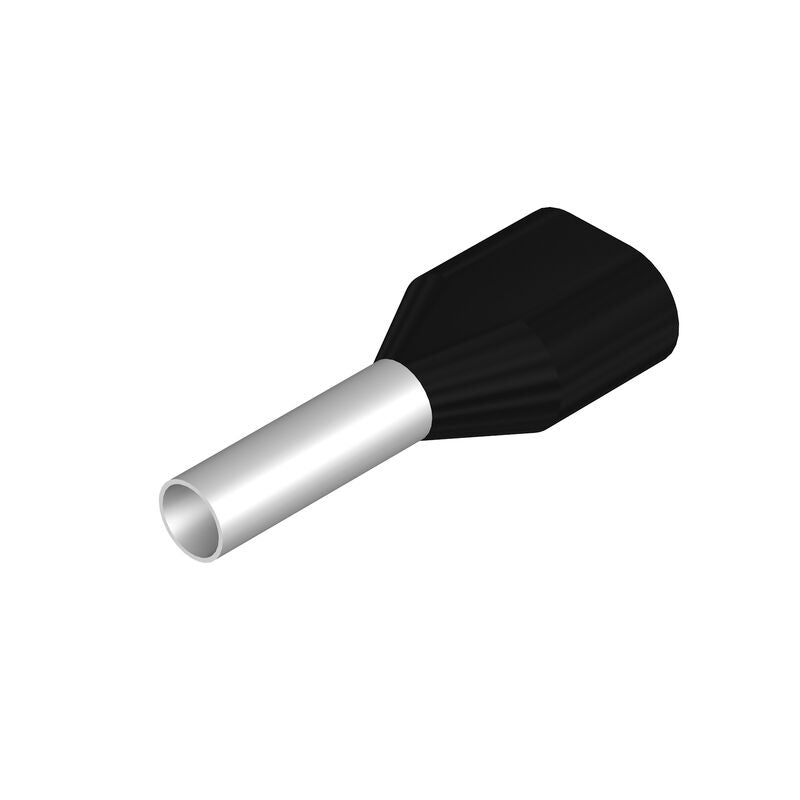

The Weidmuller 9004420000 is a twin wire-end ferrule, with a conductor cross-section of 1.5 mm². It features a stripping length of 11 mm and is designed with a black plastic collar. The contact surface has a diameter of 2.2 mm and a length of 8 mm.

• Twin wire-end ferrule
• Polypropylene insertion funnel
• Heat-resistant up to 105 deg C

Product Highlights

This wire end ferrule ensures reliable wire termination with its durable construction and precise dimensions.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 9004420000
• Country of Origin: DE

Technical Specifications

• Version: Twin wire-end ferrule
• Order No.: 9004420000
• Type: H1,5/16D ZH SW SV
• GTIN (EAN): 4008190167455
• Packaging: Multipack bag
• Description of article: Twin wire end ferrule, black
• Collar height (A): 6.5 mm
• Collar width (B): 3.6 mm
• Colour code: DIN
• Conductor cross-section: 1.5 mm
• Contact surface diameter (D1): 2.2 mm
• Contact surface length (L2): 8 mm
• L1 in mm: 16 mm
• Metal sleeve thickness (S1): 0.15 mm
• Plastic collar thickness (S2): 0.3 mm
• Stripping length: 11 mm
• Wire connection cross section AWG, max.: AWG 16
• Overall Length: 16 mm
• Contact material: Tin Plated Cathode Copper
• Manufacturer Name: Weidmuller
• RoHS: Yes
• Brand: Weidmuller
• Part Number #: 9004420000
• Unit of Measure: Per Each
