Weidmuller 9004360000 H2,5/14D BL BD Wire-End Ferrule 12 mm

Product Description

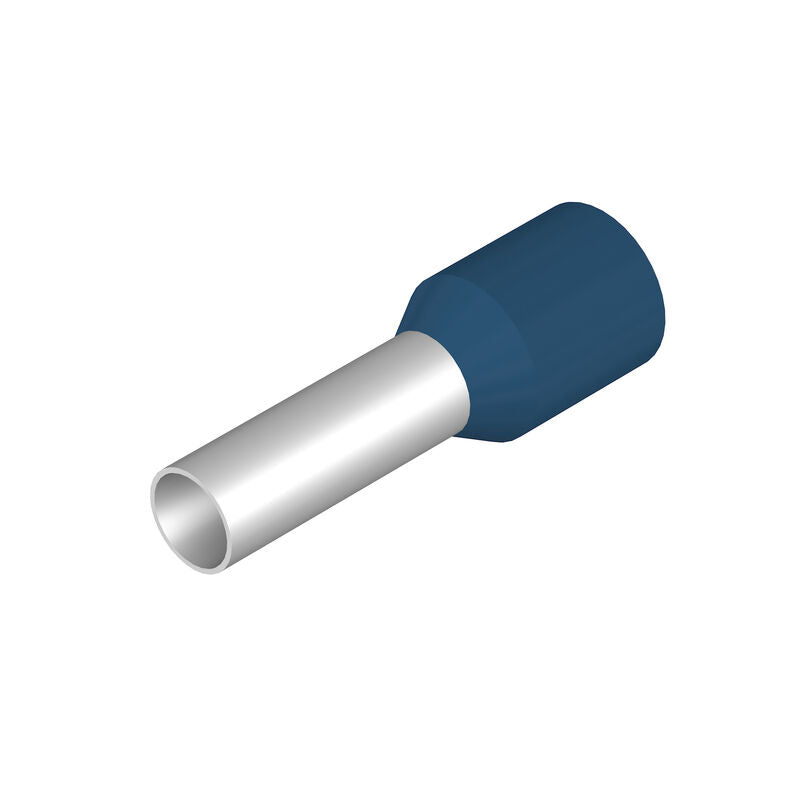

The Weidmuller 9004360000 is a standard wire-end ferrule. This blue, insulated, single wire ferrule features a 12 mm stripping length and an 8 mm contact surface length. It is designed for DIN 14 AWG (2.50mm") wires.

• Standard
• 12 mm Stripping Length
• 8 mm Contact Surface Length

Product Highlights

The Weidmuller wire-end ferrule ensures reliable wire termination. Suitable for various applications requiring secure connections.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 9004360000
• Country of Origin: DE

Technical Specifications

• Version: Standard
• Order No.: 9004360000
• Type: H2,5/14D BL BD
• GTIN (EAN): 4008190083397
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Description of article: Linked wire-end ferrules, blue
• Collar diameter (D2): 4.2 mm
• Colour code: DIN
• Conductor cross-section: 2.5 mm
• Contact surface diameter (D1): 2.2 mm
• Contact surface length (L2): 8 mm
• L1 in mm: 14 mm
• Metal sleeve thickness (S1): 0.15 mm
• Plastic collar thickness (S2): 0.25 mm
• Stripping length: 12 mm
• Wire connection cross section AWG, max.: AWG 14
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories
• Terminal Block Wire Ferrules: Terminal Block Wire Ferrules
• Style: DIN
• Manufacturer: Weidm ller
• Size: 14 AWG (2.50mm )
• Packaging: Bag
• Length - Overall: 14.00mm
• Length - Pin: 8.00mm
• Insulation: Insulated
• Brand: Weidmuller
• Product Type: Bootlace Ferrule
• Maximum Wire Size AWG: 14AWG
• Standards/Approvals: No
• ECLASS 14.0: 27-40-02-01
• ECLASS 15.0: 27-40-02-01
