Weidmuller 8937980000 mos 24VDC/5-48VDC 0,5A

Brand: Weidmuller
SKU: 8937980000
Availability: In Stock

Ships same day if ordered by 12 pm
$32.33
$32.33
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

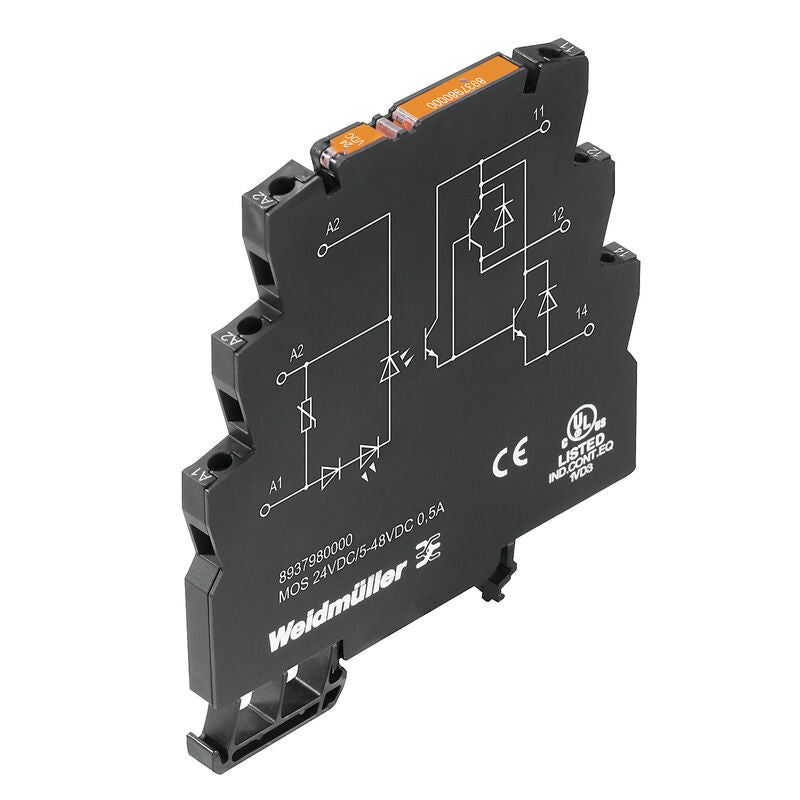

The Weidmuller 8937980000 MICROOPTO is a solid-state relay with a rated control voltage of 24 V DC and a rated switching voltage of 5-48 V DC. It features a continuous current of 500 mA and screw connections. Designed for space-saving and high-quality performance in a terminal block format.

  • Rated control voltage: 24 V DC
  • Rated switching voltage: 5...48 V DC
  • Continuous current: 500 mA

Product Highlights

Space-saving, high-quality solid-state relay in a modular terminal block design for signal adaption.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 8937980000
Technical Specifications
Order No.
8937980000
Type
MOS 24VDC/5-48VDC 0,5A
GTIN (EAN)
4032248716210
Depth
97.8 mm
Depth (inches)
3.85 inch
Height
88.1 mm
Height (inches)
3.468 inch
Width
6.1 mm
Width (inches)
0.24 inch
Net weight
34 g
Storage temperature
-40 C...60 C
Ambient temperature
-25 C 60 C
Humidity
5 - 93% rel. humidity, Tu = 40 C, no condensation
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
d32f8e61-6733-45d6-9062-c95f9903aad6
Rated control voltage
24 V DC 20 %
Rated control voltage (control input)
24 V DC 20 %
Power rating
160 mW
Status indicator
Green LED
Protective circuit
Varistor
Reverse polarity protection
Input frequency
Rated switching voltage
5...48 V DC
Continuous current
0.5 A
Rated switching current
500 mA
Load category
LC A
Switch-on delay
<30
Switch-off delay
<50
Voltage drop at max. load
Max. 1 V
Leakage current
<1.5 mA
Short-circuit-proof
No
Protective circuit, load side
Free-wheeling diode
Contact type
1 CO contact (Transistor)
max. switching frequency (DC control voltage)
1 kHz
Mounting rail
TS 35
Colour
black
UL 94 flammability rating
V-0
UL94 flammability rating component
Component: Housing UL94 flammability rating: V-0
Rated voltage
300 V
Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
> 3 mm
Dielectric strength for control side - load side
3 KV eff / 1 Min.
Dielectric strength to mounting rail
4 kV eff / 1 Min.
Impulse withstand voltage
4 kV (1.2/50 )
Protection degree
IP20
Certificate No. (DNV)
TAE000033E
Certificate no. (cULus)
E141197
Wire connection method
Screw connection
Stripping length, rated connection
7 mm
Tightening torque, min.
0.4 Nm
Tightening torque, max.
0.6 Nm
Clamping range, rated connection
2.5 mm
Clamping range, min.
0.5 mm
Clamping range, max.
4 mm
Wire cross-section, solid, min.
0.5 mm
Wire cross-section, solid, max.
4 mm
Wire connection cross section, finely stranded, min.
0.5 mm
Wire connection cross section, finely stranded, max.
2.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1.5 mm
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0.5 mm
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1.5 mm
Blade size
0.6 x 3.5 mm
ETIM 8.0
EC001504
ETIM 9.0
EC001504
ETIM 10.0
EC001504
ECLASS 14.0
27-37-16-04
ECLASS 15.0
27-37-16-04
Category
Relays
Solid State Relays (SSR)
Solid State Relays (SSR)
Input Voltage
24VDC
Manufacturer
Weidmuller
Voltage - Load
5 V ~ 48 V
Series
MOS
Load Current
500 mA
Packaging
Bulk
Termination Style
Screw Terminal
Part Status
Active
Operating Temperature
-25 C ~ 50 C
Mounting Type
DIN Rail
Package / Case
Module
Relay Type
Photo-Coupled Relay (Photorelay)
Approval Agency
cULus
Circuit
SPST-NO (1 Form A)
Base Product Number
893798
Output Type
DC
Relay Mounting
Din Rail
Relay Connection Type
Screw Connection
Coil Voltage Rating
24 VDC
Component
Solid State Relay
Relay Indication
Green LED
Relay Input Amperage
500 Mamp
Contact Form
1 Form A (SPST-NO)
Features
Short-circuit protection;Reverse polarity protection
Load Voltage
5V~48V
load current
1A
