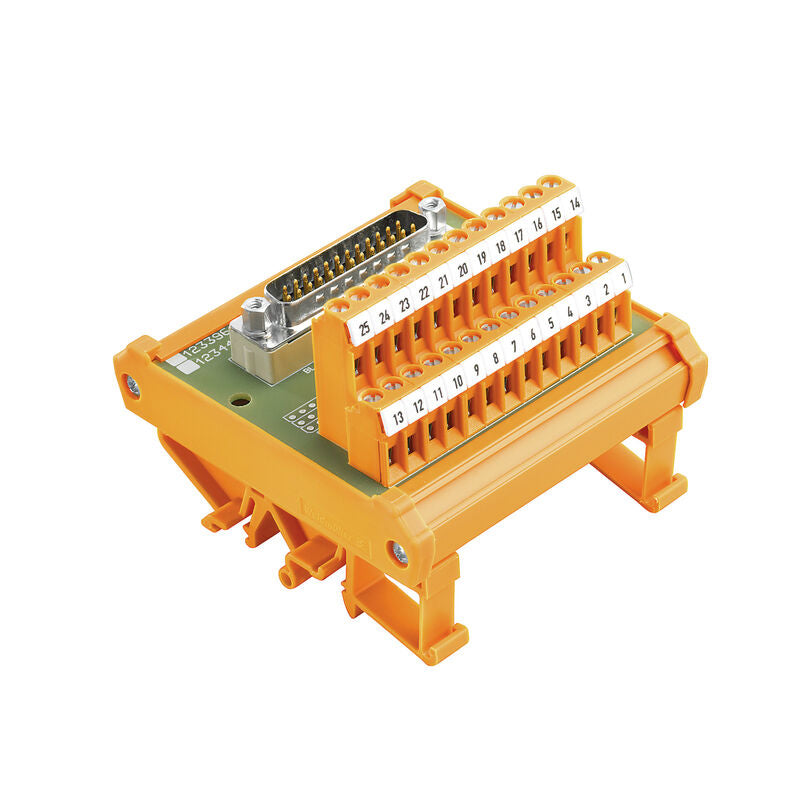

Weidmuller 8005181001 Rs Sd25s Unc 4.40 Lp2n

Product Description

The Weidmuller 8005181001 RS SD25S UNC 4.40 LP2N is an interface module with a 25-pole plug and screw connection, designed according to IEC 60807 / DIN 41652 standards. It serves as an adapter between control devices and field elements, simplifying electrical cabinet setups. This interface module facilitates efficient signal transmission.

• Features a D-sub connector with a clamping-yoke connection in accordance with IEC 807-2 / DIN 41652.
• Offers a one-to-one electrical connection between controller and field connections.
• Designed for attachment to standard TS35 or TS32 rails.

Product Highlights

This interface module is ideal for industrial automation, providing a streamlined solution for connecting control devices and field elements.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 8005181001
• Country of Origin: Germany

Technical Specifications

• Version: Interface, RSSD, D-sub connectors, acc. to IEC 60807 / DIN 41652, 25-pole plug, Screw connection
• Order No.: 8005181001
• Type: RS SD25S UNC 4.40 LP2N
• GTIN (EAN): 4032248047338
• Depth: 76 mm
• Depth (inches): 2.992 inch
• Height: 87 mm
• Height (inches): 3.425 inch
• Width: 80 mm
• Width (inches): 3.15 inch
• Net weight: 157 g
• Storage temperature: -40...70
